Fiber Drop Cable 1 Core Optical Drop Fibre Cable

Name: Fiber Drop Cable 1 Core Optical Drop Fibre Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GJYXFCH-1B6a1
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GJYXFCH-1B6a1

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GJYXFCH-1B6a1

Keyword:

Optical Fiber Drop Cable

Type:

GJYXFCH-1B6a1

Jacket Sheath:

LSZH

Net Weight:

0.8kg/km, Add 0.05kg/km

Steel:

0.45mm

Installation Style:

Aerial

Fiber:

G652D/G657A1

Steel Wires:

1mm, 0.45mm*2pcs

Installation Method:

Indoor/Outdoor

Highlight:

High Light

Highlight:

1 core fiber drop cable

FTTH optical drop cable

single core fibre drop cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

Fiber Drop Cable 1 Core Optical Drop Fibre Cable

FTTH Outdoor Drop Cable 1000M 1Core G657A1 GJYXFCH-1B6a1 FRP Strength Member Fiber Optic Cable

The FTTH drop cables are with flame retardant cable jacket and with supporting wire, this cable has strengthen members inside for supporting the whole body. The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.

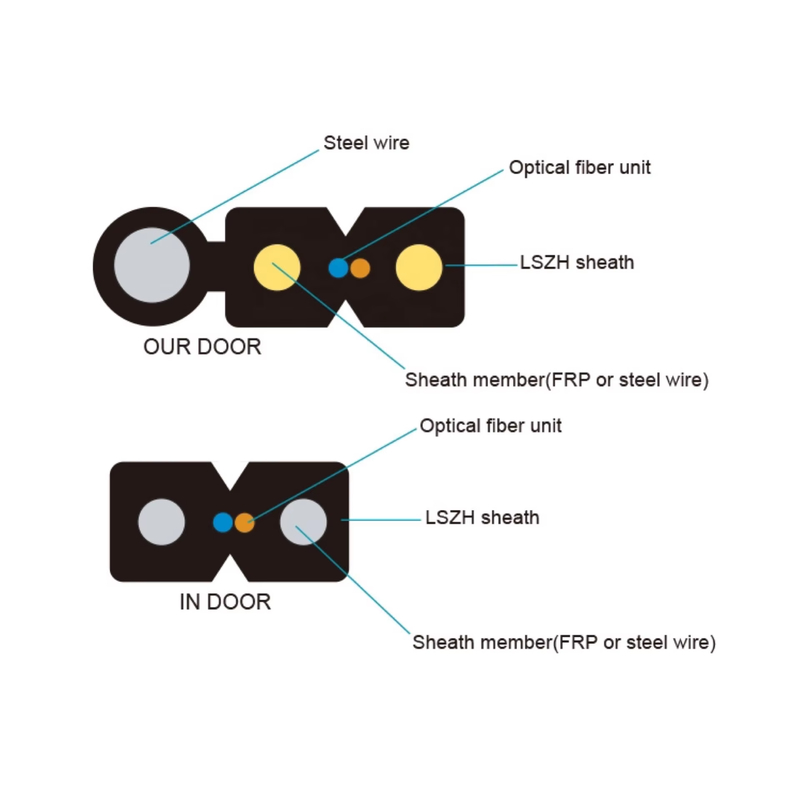

Model: GJXH / GJXFH / GJYXCH / Ftth Gjyxfch

1. GJXH- The optical fiber unit is positioned in the central. Two parallel steel wire are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath.

2. GJXFH- The optical fiber unit is positioned in the central. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath.
3. GJYXCH-The optical fiber unit is positioned in the centre. Two parallel steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
4. Ftth Gjyxfch- The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced member FRP are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

Bow-type Drop Outdoor/Indoor Cable for Access Network Technical Parameters
Fiber Count	Cable Type	Cable	Cable Weight (kg/km)	Tensiles Strength	Crush Resistance Long/short	Benging Radius
1	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
2	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
4	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
1	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D
2	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D
4	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D

Fiber Drop Cable 1 Core Optical Drop Fibre Cable 4
