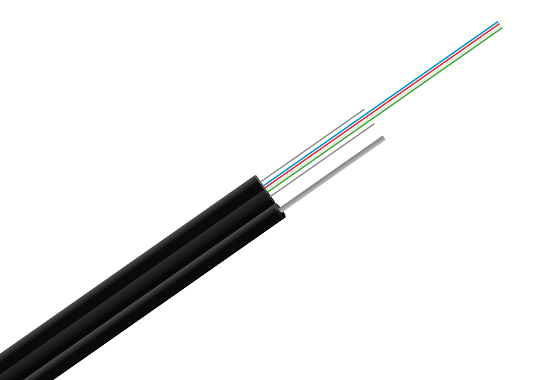

Fig-8 2 Core FTTH Drop Cable

Name: Fig-8 2 Core FTTH Drop Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GJYXCH-2B6
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GJYXCH-2B6

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GJYXCH-2B6

Keyword:

Optical Fiber Drop Cable

Type:

GJYXCH-2B6

Jacket Sheath:

LSZH

Net Weight:

0.8kg/km, Add 0.05kg/km

Steel:

0.45mm

Installation Style:

Aerial

Fiber:

G652D/G657A1

Steel Wires:

1mm, 0.45mm*2pcs

Installation Method:

Indoor/Outdoor

Highlight:

High Light

Highlight:

Fig-8 FTTH drop cable

2 core fiber optic cable

FTTH drop cable with jacket

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

Fig-8 2 Core FTTH Drop Cable

What is a drop wire used for?

The main function of a drop wire is to facilitate the final leg of the connection, bridging the gap between the main distribution network and the end user. There are several types of drop wires commonly used in the industry, each designed to meet specific requirements based on the environment and application.

Drop cables are the critical connection between a service provider's distribution network and the end user's home or business.

Product Description:
With metal strength member, flame-retardant LSZH jacket and special Low-bend-sensitivity fiber, suitable for direct aerial installation into the houses in FTTH projects.

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by two parallel strength members made of metal, steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Specification

FTTH DROP CABLE

MODEL: FDC-GJXCH-4B6a1

Fiber: SM G657A1

Fiber Count: 4

Parallel Wire: 0.45mm *2

Messenger Wire: 1.0mm

Jacket Material: LSZH

Cable Length: 1Km/Drum 2km/drum

Simple Specification:

Insertion Loss: ≤0.30dB Return Loss: ≥50dB

Durability: ≤0.2dB

Test Wavelength: 1310/1550nm

Operation temperature: -40℃~ 85℃

GJYXCH FTTH Fiber Optic Drop Cable 1 Core G657A1 Single Mode
Outdoor FTTH Drop Cable
With FRP & steel wire as strengthen member
LSZH outer sheath
G.657A1 optic fiber (or as request)
Fiber To The Home (ftth)
Product life of 15 years.
Storage/Operating Temperature: -40°C to + 70°C
Optical Cable Appplication
Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable
Laying method:
Working temperature: -40ºC~+60ºC
Bend radius: Static 12.5 times the cable diameter; Dynamic 25 times optical cable diameter

Bow-type Drop Outdoor/Indoor Cable for Access Network Technical Parameters
Fiber Count	Cable Type	Cable	Cable Weight (kg/km)	Tensiles Strength	Crush Resistance Long/short	Benging Radius
1	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
2	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
4	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
1	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D
2	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D
4	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D

Fig-8 2 Core FTTH Drop Cable 4
