G657A1 Fiber Optic Cable High Quality Drop Cable LSZH Core

Name: G657A1 Fiber Optic Cable High Quality Drop Cable LSZH Core
Brand: guangzhou fiber cablepuls co ltd
SKU: GJYXCH-1B6
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GJYXCH-1B6

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GJYXCH-1B6

Keyword:

Optical Fiber Drop Cable

Type:

GJYXCH-1B6

Jacket Sheath:

LSZH

Net Weight:

0.8kg/km, Add 0.05kg/km

Steel:

0.45mm

Installation Style:

Aerial

Fiber:

G652D/G657A1

Steel Wires:

1mm, 0.45mm*2pcs

Installation Method:

Indoor/Outdoor

Highlight:

High Light

Highlight:

G657A1 fiber optic drop cable

LSZH FTTH drop cable

high quality fiber drop cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

G657A1 Fiber Optic Cable High Quality Drop Cable LSZH Core

G657A1 Fiber Optic Cable Description:

The G657A1 Fiber Optic Cable (Fiber to the Home) drop cables boast a robust design featuring a flame retardant cable jacket fortified with a supporting wire, ensuring durability and safety. Within the cable, sturdy internal strengthening members provide structural integrity, capable of supporting the entire cable assembly.
Crafted with a specialized structure, these drop cables facilitate effortless extraction of fibers, streamlining installation processes. Ideal for direct deployment into interior spaces, particularly residences and offices, these FTTH drop cables offer a seamless solution for high-speed internet connectivity, catering to the demands of modern living and professional environments alike.

Specification

FTTH DROP CABLE

MODEL: FDC-GJXCH-4B6a1

Fiber: SM G657A1

Fiber Count: 4

Parallel Wire: 0.45mm *2

Messenger Wire: 1.0mm

Jacket Material: LSZH

Cable Length: 1Km/Drum 2km/drum

Simple Specification:

Insertion Loss: ≤0.30dB Return Loss: ≥50dB

Durability: ≤0.2dB

Test Wavelength: 1310/1550nm

Operation temperature: -40℃~ 85℃

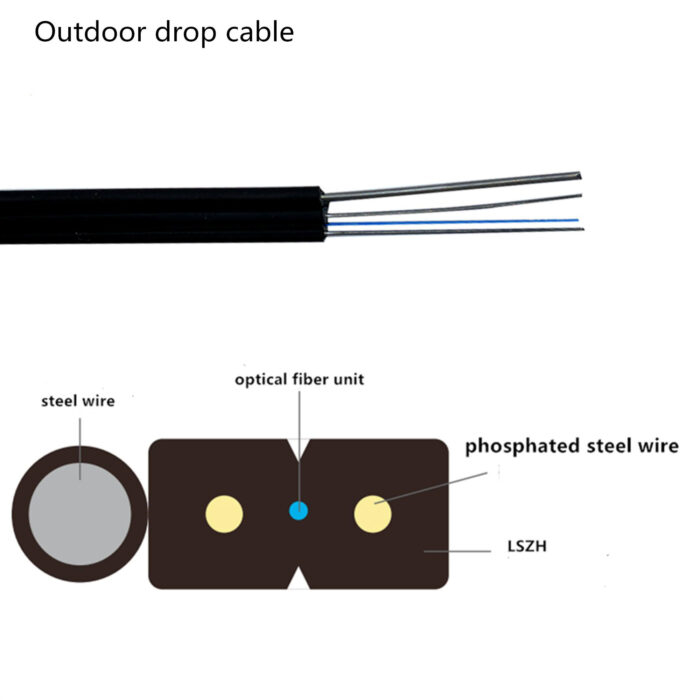

GJYXCH FTTH Fiber Optic Drop Cable 1 Core G657A1 Single Mode
Outdoor FTTH Drop Cable
With FRP & steel wire as strengthen member
LSZH outer sheath
G.657A1 optic fiber (or as request)
Fiber To The Home (ftth)
Product life of 15 years.
Storage/Operating Temperature: -40°C to + 70°C
Optical Cable Appplication
Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable
Laying method:
Working temperature: -40ºC~+60ºC
Bend radius: Static 12.5 times the cable diameter; Dynamic 25 times optical cable diameter

Bow-type Drop Outdoor/Indoor Cable for Access Network Technical Parameters
Fiber Count	Cable Type	Cable	Cable Weight (kg/km)	Tensiles Strength	Crush Resistance Long/short	Benging Radius
1	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
2	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
4	GJYXCH	2.0*5.0	20	300/600	1000/2000	20D/40D
1	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D
2	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D
4	GJYXCH	2.0*5.0	19	300/600	1000/2000	20D/40D

G657A1 Fiber Optic Cable High Quality Drop Cable LSZH Core 4
