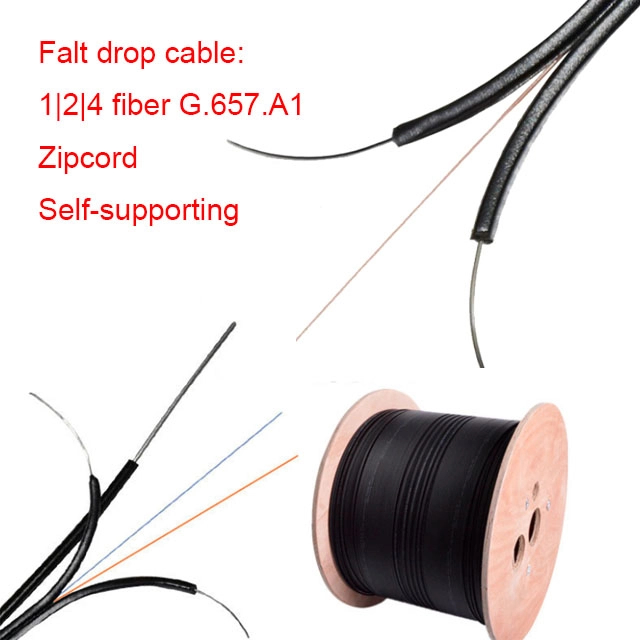

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
● Characteristics
● Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
● Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
● Simple structure, light weight and high practicability;
● Novel flute design, easily strip and splice, simplify the installation and maintenance;
● Low smoke, zero halogen and flame retardant sheath.
Fiber Core: | 2 |
Cable Dimension(mm): | 2.0*5.0 |
Cable Weight (kg/km): | 17.5 |
Outer Jacket: | LSZH |
Strength Member: | 1 Steel Wire + 2 FRP |
ShortTerm Tensile strength(N): | 1200 |
LongTerm Tensile strength(N): | 360 |
Dynamic Bending Radius(MM): | 35 |
Static Bending Radius(MM): | 15 |
Fiber Type: | G.657A1 |
Mode Field Diameter: | 9.1±0.2 μm |
Cladding Diameter: | 124.9±0.4 μm |
Coating Diameter: | 248±0.2 μm |
Transmission Mode: | SMF-9/125 |
Optical Wave Length: | 1310/1550(nm) |
Attenuation(dB/km): | ≤0.35 |
Bow-type Drop Outdoor/Indoor Cable for Access Network Technical Parameters | ||||||
Fiber Count | Cable Type | Cable | Cable Weight (kg/km) | Tensiles Strength | Crush Resistance Long/short | Benging Radius |
1 | GJYXCH | 2.0*5.0 | 20 | 300/600 | 1000/2000 | 20D/40D |
2 | GJYXCH | 2.0*5.0 | 20 | 300/600 | 1000/2000 | 20D/40D |
4 | GJYXCH | 2.0*5.0 | 20 | 300/600 | 1000/2000 | 20D/40D |
1 | GJYXCH | 2.0*5.0 | 19 | 300/600 | 1000/2000 | 20D/40D |
2 | GJYXCH | 2.0*5.0 | 19 | 300/600 | 1000/2000 | 20D/40D |
4 | GJYXCH | 2.0*5.0 | 19 | 300/600 | 1000/2000 | 20D/40D |
