1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable

Name: 1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTS-24B1.3-288b1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYTS-24B1.3-288b1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYTS-24B1.3-288b1.3

Type:

GYTS-24B1.3-288b1.3

Number Of Conductors:

24B1.3-288B1.3

Strength Member:

FRP/steel Wire

Application:

Duct

Outer Jacket Material:

PE(Black)

Armor Layer:

Aluminum

Package:

Wooden Drum

Fiber Type:

G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3

Fiber Color:

Blue,Orange,Brown,Aqua,Grey

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

gyts outdoor fiber optic cable

gyts outdoor armored fiber optic cable

armored outdoor fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000

Product Description

1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable

Product Specifications

Type	GYTS-24B1.3-288b1.3
Number of Conductors	24B1.3-288B1.3
Strength member	FRP/steel wire
Application	Duct
Outer Jacket Material	PE (Black)
Armor Layer	Aluminum
Package	Wooden Drum
Fiber type	G652D, single mode or multi mode, 50/125, 62.5/125, OM3
Fiber color	Blue, Orange, Brown, Aqua, Grey

Product Description

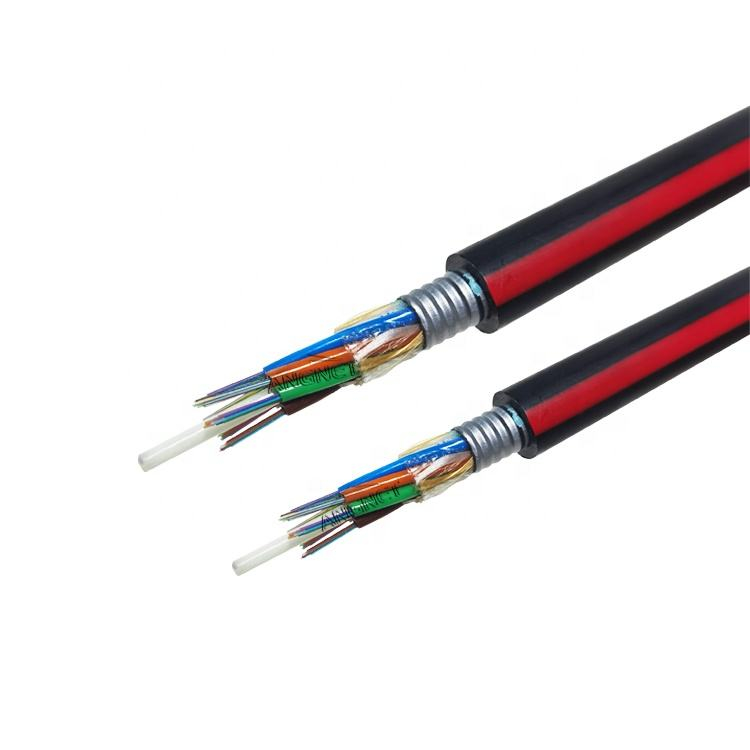

The fibers (250µm) are positioned in a loose tube made of high modulus plastic, filled with a water-resistant compound. A central steel wire (sometimes PE-sheathed for high fiber count cables) serves as the strength member. Tubes are stranded around this member to form a compact, circular core, protected by an Aluminum Polyethylene Laminate (APL) and filling compound against water ingress, with a final PE sheath.

Key Features

Excellent mechanical and temperature performance
High-strength, hydrolysis-resistant loose tube
Special tube filling compound for fiber protection
Compact structure prevents tube shrinkage
UV-resistant PE sheath
Crush-resistant and flexible design
Watertight construction with:
- Central steel wire strength member
- Loose tube filling compound
- 100% cable core filling

Technical Parameters

Fiber Num	Outer diameter (mm)	Weight (kg/km)	Tensile Strength (N)	Crash Resistance (N/100mm)
2-30	9.5	86	≥1500 (short term) ≥600 (long term)	≥1000 (short term) ≥300 (long term)
32-60	10.2	99	Same as above
62-72	10.9	123	Same as above
74-84	12.2	148	Same as above
86-96	12.2	148	Same as above
98-120	14.0	183	Same as above
122-144	14.5	220	Same as above
146-216	16.1	229	Same as above
218-300	18.5	290	Same as above

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	8.5±0.3	75
6	1+5	6	1.85±0.1	1.4/1.4	1.4	8.5±0.3	75
8	1+5	8	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
12	1+5	6	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
24	1+5	6	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
36	1+6	12	1.95±0.1	1.5/1.5	1.6	8.8±0.3	85
48	1+5	12	1.95±0.1	1.5/1.5	1.6	9.3±0.3	90
60	1+5	12	1.95±0.1	1.6/1.6	1.6	9.3±0.3	90
72	1+6	12	1.95±0.1	2.0/2.0	1.6	9.6±0.3	95
96	1+8	12	1.95±0.1	1.4/3.2	1.6	11.5±0.3	120
144	1+12	12	1.95±0.1	2.0/5.7	1.8	14.2±0.3	185
216	1+6+12	12	1.95±0.1	2.0/2.0	1.8	14.5±0.3	200
288	1+9+15	12	1.95±0.1	2.0/3.7	1.8	16.2±0.3	240

Product Images
