Singlemode Outdoor Fiber Optic Cable Unitube FRP Non Armored Cable GYFXTY

Name: Singlemode Outdoor Fiber Optic Cable Unitube FRP Non Armored Cable GYFXTY
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFXTY-6b1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYFXTY-6b1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYFXTY-6b1.3

Useful:

Outdoor Fiber Optic Cable

Type:

GYFXTY-6b1.3

Cores:

6 Fibers

Strength Member Material:

FRP

Construction:

Central Loose Tube

Transport Package:

Wooden Drum

Cable Dimension:

6.8mm

Jacket Color:

Black

Mode:

Singlemode G652D

Highlight:

High Light

Highlight:

Singlemode Outdoor Fiber Optic Cable

FRP Non Armored Fiber Optic Cable

Non Armored Cable GYFXTY

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

Singlemode Outdoor Fiber Optic Cable Unitube FRP Non Armored Cable GYFXTY

Product Specifications

Attribute	Value
Use	Outdoor Fiber Optic Cable
Type	GYFXTY-6b1.3
Cores	6 fibers
Strength Member Material	FRP
Construction	Central Loose Tube
Transport Package	Wooden Drum
Cable Dimension	6.8mm
Jacket Color	Black
Mode	Singlemode G652D

Product Description

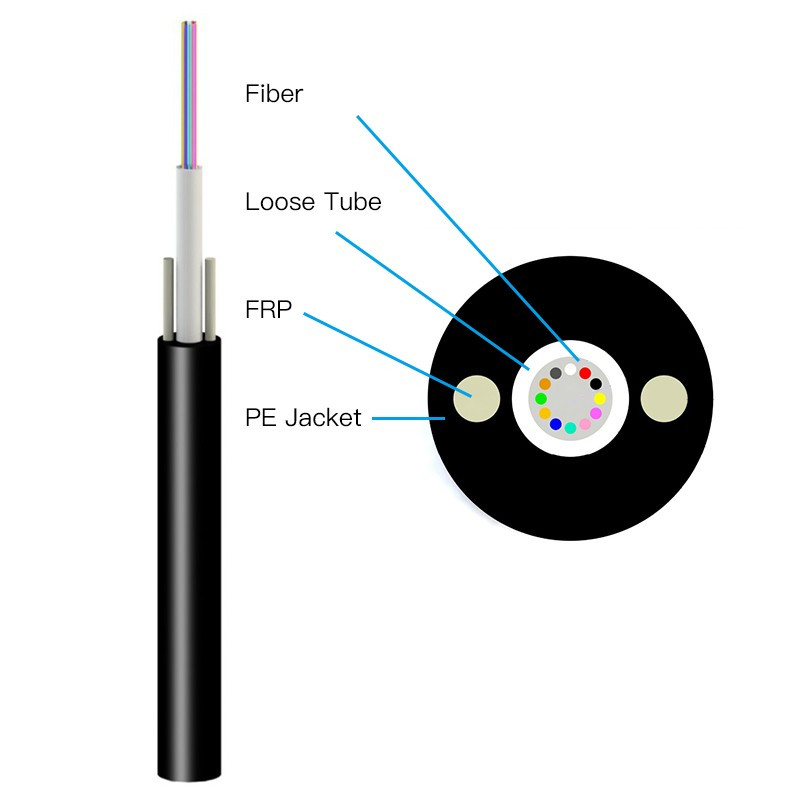

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Two parallel FRP are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.

Application

Aerial

Characteristics

Excellent mechanical and temperature performance
Critical protection to fibers, based on the excellent hydrolysis resistance
Two parallel FRP ensure the tensile strength of the cable
Excellent ultraviolet prevention with PE sheath, small diameter, light weight and installation friendliness

Protection Methods

Metallic Armors:

Stainless Steel Tape: Protects against rodent and bird damage, offering a robust shield against mechanical damage.

Steel Wires: Commonly used in armored cables for added protection, especially against rodents and external physical impacts.

Non-Metallic Armors:

FRP (Fiber Reinforced Plastic): Provides protection against rodent and bird attacks, while being lightweight and corrosion-resistant.

Glass Yarn: Used for rodent protection, providing an additional layer of defense while maintaining flexibility and lightweight properties.

Nylon Sheath: A protective layer that acts as a shield against termites, ensuring the durability of the cable.

Chemical Methods

Chemical Additives: Spicy additives are used in cable insulation to deter rodents and termites, creating an unpleasant environment for these pests and reducing the likelihood of cable damage.

Optical Characteristics

Parameter	Specification
Parameter	G652	50/125μm	62.5/125μm
Attenuation (+20℃)	@850 nm	≤3.0dB/km	≤3.3dB/km
	@1300 nm	≤1.0dB/km	≤1.0dB/km
	@1310 nm	≤0.36dB/km
	@1550 nm	≤0.22dB/km
Bandwidth (Class A)	@850 nm	≥500 MHz*km	≥200 MHz*km
	@1300 nm	≥1000 MHz*km	≥600 MHz*km
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable cut-off wavelength		≤1260 nm

Mechanical Characteristics

Cable Count	Out sheath Diameter (MM)	Weight (KG)	Minimum allowable Tensile Strength (N)	Minimum allowable Crush Load (N/100mm)	Minimum Bending Radius (MM)	Storage temperature (℃)
2	7.2	45	1200 (short term) 500 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	20
4	7.2	45	1200 (short term) 500 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	20
6	7.2	45	1200 (short term) 500 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	20
8	7.2	45	1200 (short term) 500 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	20
12	7.2	45	1200 (short term) 500 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	20
