ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable

Name: ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: ASU-12B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	ASU-12B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

ASU-12B1.3

Type:

ASU-12B1.3

Application:

Telecom Comunication

Laying Mode:

Aerial

Jacket Material:

Sample:

Free

Installation:

Self-supporting Aerial

Central Strength:

FRP

Flame Retardant:

Yes

Structure:

Loose Tube

Name:

ADSS Fiber Optic Cable

Highlight:

High Light

Highlight:

gyffy adss fiber optic cable

gyffy adss optic fiber cable

12 core adss fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

100000

Product Description

ASU Fiber Optic Cable (GYFFY) 12 Core 120m Span Cable

Product Attributes

Type	ASU-12B1.3
Application	Telecom Communication
Laying Mode	Aerial
Jacket Material	PE
Sample	Free
Installation	Self-supporting Aerial
Central Strength	FRP
Flame Retardant	Yes
Structure	Loose tube

Product Description

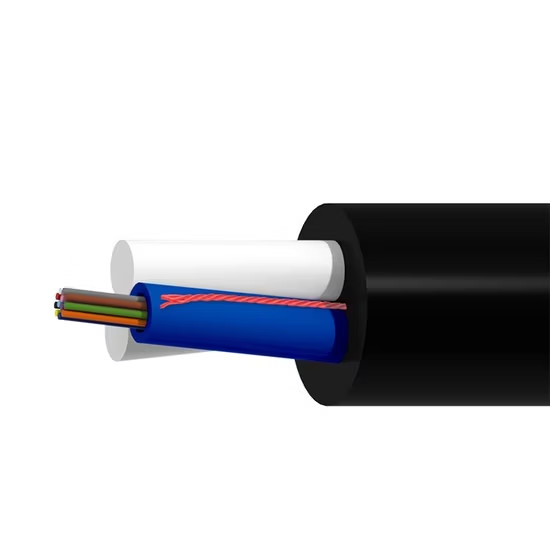

GYFFY structure sheaths 250μm optical fiber into a high modulus loose tube filled with waterproof compound

Compact, robust design specifically engineered for Internet service providers

Accommodates up to 24 single-mode fibers in a single tube for optimal network deployment

Aerial, compact dielectric design with FRP reinforcement for EMI resistance

Superior protection against humidity and UV rays for harsh environment durability

Self-supporting installation for spans of 80, 100, and 120 meters

Supplied on high-strength reels (typically 3 km) for easy transportation

Product Specifications

ITEMS	UNITS	SPECIFICATION
Fiber Type		G652D
Attenuation	Before Cable	1310nm ≦ 0.34 1550nm ≦ 0.21
Attenuation	After Cable	1310nm ≦ 0.35 1550nm ≦ 0.22
Chromatic Dispersion	ps/nm.km	1310nm ≦ 3.5 1550nm ≦ 18 1625nm ≦ 22
Attenuation Uniformity	dB/km	0.1
Point Discontinuities	dB	≤ 0.05
Zero Dispersion Slope	ps/n㎡.km	0.093
Zero Dispersion Wavelength	nm	1300~1324
PMDQ Link Design 1550	ps/km1/2	≤ 0.1
Cut-off Wavelength(λcc)	nm	≤ 1260
Attenuation vs. Bending(60mm*100turns)	dB	≤ 0.1 at 1625 nm (60mm * 100turns)
Mold Field Diameter	μm	9.2±0.4 @ 1310nm 10.4±0.5@ 1550nm
Core-Clad Concentricity	μm	≤ 0.6
Cladding Diameter	μm	125 ± 1
Cladding Non-circularity	%	≤ 1
Coating Diameter	μm	245 ± 5
Proof Test	Gpa	≥ 0.69

Optical Characteristics

Part code	ASU-120-6F
Number of Fibers	Unit	6	8	12	24
Number of Fibers	Number of fiber in tube	6	8	12	24
Number of loose tube	1
Strength member	FRP 2×2.2mm		FRP 2×2.3mm
Loose tube	PBT, Size 2.2mm
Outer sheath	HDPE
Cable nominal Diameter	7.2 MM ±0.2		8.0 MM ±0.2
Cable nominal weight	45 Kg/Km ±5		47 Kg/Km ±5
Max. working tension	1500 N
Max. crush resistance	1000 N (Short term) / 600 N (Long term)
Min. bending radius	At full load 20 x Cable OD (including poles) At no load 15 x Cable OD
Temperature range	Installation -0 → +50 Operation -10 → +70
