Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable

Name: Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: ASU-6B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	ASU-6B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

ASU-6B1.3

Name:

ADSS Fiber Optic Cable

Type:

ASU-6B1.3

Number Of Conductors:

Fiber Type:

G652D

Strength Member:

Frp *2pcs

Outer Jacket Material:

Single PE Jacket

Span:

80m 120m

Hs Code:

854470000

OEM:

YES

Highlight:

High Light

Highlight:

Mini ADSS Optical Fiber Cable

ADSS Fibre Optic Cable G652D

Self Supported ASU Cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

100000

Product Description

Mini ADSS Optical Fiber Cable G652D Aerial Self Supported ASU Cable

Product Specifications

Attribute	Value
Name	ADSS Fiber Optic Cable
Type	ASU-6B1.3
Number of conductors	6
Fiber type	G652D
Strength member	FRP *2pcs
Outer Jacket Material	Single PE Jacket
Span	80m 120m
Hs Code	854470000
OEM	YES

Product Description

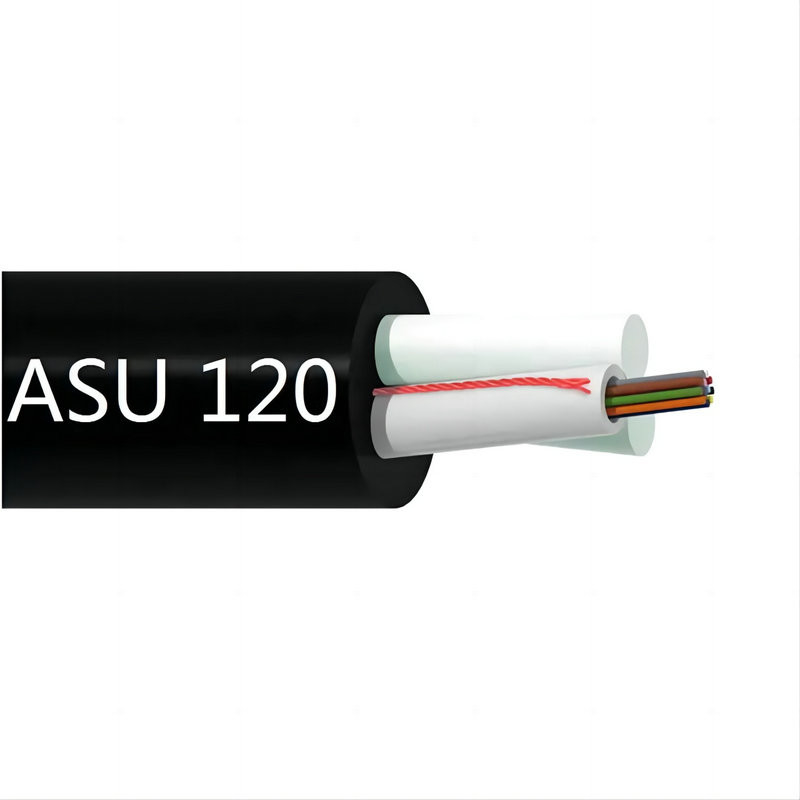

ADSS Fiber Optic Cable ASU (Mini ADSS) is an aerial self-supported fiber optic cable with G.652D specification. It features a loose tube structure with water-resistant gel compound for optimal fiber protection. The cable incorporates water-blocking material over the tube and two parallel fiber reinforced plastic (FRP) strength members, all encased in a single PE outer sheath. Ideal for long-distance aerial communication installations.

Optical Characteristics

Cable Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength long/short term (N)	Crush Resistance long/short term (N)	Bending Radius Static/Dynamic (mm)
ASU	2-12	7.0	60	600/1500	300/1000	10D/20D

Item	Unit	Specification
Fiber Type		G652D
Mode field Diameter (1310nm)	μm	9.2±0.4
Mode field Diameter (1550nm)	μm	10.4±0.8
Cladding diameter	μm	125.0±0.1
Cladding non-circularity	%	≤1.0
Core/cladding concentricity error	μm	≤0.5
Coating diameter	μm	245±7
Coating/cladding concentricity error	μm	≤12
Cable cut-off wavelength	μm	≤1260
Attenuation Coefficient (1310nm)	db/km	≤0.36
Attenuation Coefficient (1550nm)	db/km	≤0.22
Proof stress level	kpsi	≥100

Note: Other parameters meet standard ITU-T G.652

Factory View

Our Team

Our Factory

Frequently Asked Questions

Why choose us?

We are a manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a team of 11-50 professionals dedicated to quality fiber optic cable production.

How can we guarantee quality?

We implement strict quality control measures including pre-production samples and final inspection before shipment to ensure all products meet our high standards.

Can you send products to my country?

Yes, we can ship worldwide. If you don't have your own shipping forwarder, we can assist with logistics arrangements.

Can you do OEM for me?

We accept all OEM orders. Contact us with your design requirements and we'll provide competitive pricing and samples.

What services can we provide?

We offer flexible delivery terms (FOB, CIF, EXW), accept multiple currencies (USD, EUR, JPY, etc.), and various payment methods (T/T, L/C, PayPal, etc.). Our team is fluent in English and Chinese.
