Home > products > Outdoor Fiber Optic Patch Cord > FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable

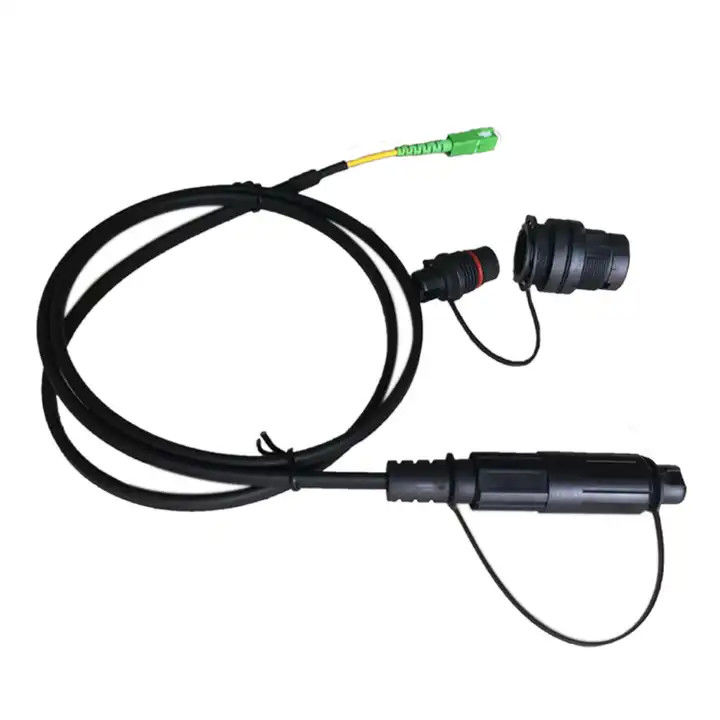

FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable

Product Details

Place of Origin: China

Brand Name: ODM/OEM

Certification: ISO9001-2015, RoHS, CE

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Packaging Details: Carton Box

Get Best Price
Highlight:

ftta outdoor fiber optic patch cord

,

1m sc apc patch cable

,

ftta sc apc patch cable

Model Number:
H-Connector Assemblies
Fiber Mode:
Single Mode Multimode
Cable Type:
Outdoor Armored Cable
Cable Diameter:
3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm
Storage Temperature:
-45℃~+85℃
Use:
FTTA
Product Name:
Waterproof Patch Cord
Axial Cable Retention:
445N(100lbs)
Model Number:
H-Connector Assemblies
Fiber Mode:
Single Mode Multimode
Cable Type:
Outdoor Armored Cable
Cable Diameter:
3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm
Storage Temperature:
-45℃~+85℃
Use:
FTTA
Product Name:
Waterproof Patch Cord
Axial Cable Retention:
445N(100lbs)
FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable

4x6mm Corning Connector 1m SC APC Outdoor Fiber Optic Patch Cord

Product Description:

This is a robust andsealed connection solution for fiber to the home (FTTH)connectivity.SC/APC type connec-tion within a slim, sealed, threaded polymer housing allowingeasy connection to either a multi port terminal or in-lineextension receptecal.The SC/APC connectors mate to a standard adapter provid-ing a common interface for FTTx applications. Available with flat drop or traditional round style OSP cables,the H-Connector provides an ideal solution for direct burial,conduit or aerial installations.
FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable 0FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable 1

Features:

  1. IP-68 water and dust protection
  2. Factory teminated for high perfomance
  3. -40*C to +85C operating temperature
  4. 445 N (100 lbs) cable retention
  5. Accepts 4.8mm to 7.0mm cable diameters
  6. Low profle in-line receptade available
  7. No insalltion tools required
  8. 100 minimum mating cycdles

Technical Parameters:

FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable 2



FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable 3



Insertion Loss ≤0.35dB typical
Return Loss ≤-65dB
Cable Diameter Range 4.8mm to 7mm
Operating Temperature -40 to 85℃
Axial Cable Retention 445N(100lbs)

Property Value
Fiber Mode Single Mode/Multi Mode
Use FTTA
Fiber Type G657A1/G657A2/G657B3
Packaging Details Carton Box
Product name Waterproof Patch Cord
Model Number Outdoor Fiber Optic Patch Cord
Warranty Time 1 Year
Operating Temperature -40℃~+75℃
Storage Temperature -45℃~+85℃
Keywords Outdoor Fiber Optic Cord, Fiber Jumper, Fiber Optic Outdoor Patch Cord


Applications:

FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable 4



Customization:

Outdoor Fiber Optic Patch Cord
  • Brand Name: ODM/OEM
  • Model Number: Singlemode Multimode
  • Place of Origin: China
  • Cable Type: Outdoor Armored Cable
  • Cable Diameter: 3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm
  • Insertion Loss: ≤0.3dB
  • Packaging Details: Carton Box
  • Use: FTTA

Fiber Jumper, Outdoor Fiber Patch Cord, Outdoor Optical Patch Cord are all available for customization.



Support and Services:

Outdoor Fiber Optic Patch Cord Technical Support and Service

We provide technical support and service for our Outdoor Fiber Optic Patch Cord products. Our team of experienced engineers and technicians can provide fast, reliable and cost-effective solutions to any issues that may arise.

We offer a range of services including installation, troubleshooting, and repairs. Our team can also advise on best practices and provide advice on how to maximize the performance of our products.

If you have any questions or require assistance, please don't hesitate to get in touch. We aim to provide an excellent level of customer service and will do our best to ensure that your issue is resolved quickly and efficiently.

Company Profile:

Sboter is a professional manufacturer .It has many years experience in R&D, production and sales of fiber optic products. we provide One Stop Solution for fiber optic splicing, distribution, termination and protection products.
FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable 5

FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable 6

FTTA Outdoor Fiber Optic Patch Cord 4x6mm Corning Connector 1m SC APC Patch Cable 7
