| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Non Metallic Fiber Optic Cable | Number Of Cores: | 2-144 Core |
|---|---|---|---|
| Outer Sheath Material: | PE | OEM: | Accepted |
| Application: | Outdoor Duct/outdoor Cable/aerial/lashed | Brand Name: | Yiyuan |
| Certification: | ISO 9001;ISO 14001;OHSAS 18001 | Color: | Black Or Customized |
| Number Of Conductors: | ≥ 10 | Place Of Origin: | China |
| Installation: | Self-supporting Aerial | Package: | Plywood Reel/customized |
| Fiber Type: | Single Mode | Strength Member: | FRP |
| High Light: | 1.2mm Non Metallic Fiber Optic Cable,G652D Non Metallic Fiber Optic Cable,GYXTW bulkaGYXTW bulk fiber optic cable fiber optic cable |
||

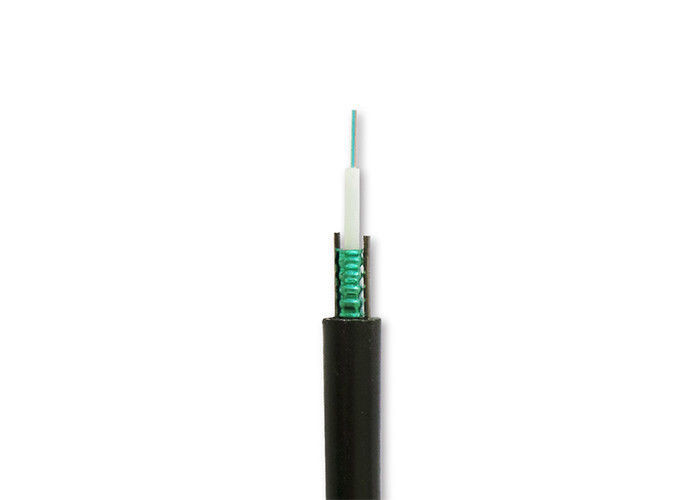

FTTH Backbone Non Metallic Fiber Optic Cable GYXTW Outdoor Bulk Fiber Optic Cable
Description:
GYTXW fiber optic cable is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYXTW from 2 fiber cores to 24 fiber cores. Both single mode type and multimode types are available.
Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.
Applications
These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between
Characteristics
Optimum cable structure, high fibre density.
Accurate fibre length balance, ensure stable performance.
No gel in cable core for water blocking, low carbon and environmental friendly.
Structure Innovation in sheath, enhancing the blowing performance.
Proven loose tube design for performance.
Small diameter, lightweight and low friction sheath design.
Excellent blowing length and fast, safe and cost effective installation.
Easy installation and removal when necessary.
Technical Parameters
| Cable Type | Fiber Count |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength
Long/Short Term N |
Crush Resistance
Long/Short Term N/100mm |
Bending Radius
Static mm |
| GYXS/GYXTW-2~12 | 2~12 | 10.0 | 105 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GY XTW-2~12 | 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GY XTW-14~24 | 14~24 | 12.5 | 149 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GY XTW-26~36 | 26~36 | 14.0 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXS/GY XTW-38~48 | 38~48 | 15.0 | 216 | 1000/3000 | 1000/3000 | 10D/20D |
