GYFTY-8 Fiber Optic Cable

Name: GYFTY-8 Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTY-8b1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYFTY-8b1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYFTY-8b1.3

Type:

GYFTY-8B1.3

Jacket Material:

PE/LSZH

Out Jacket Color:

Black

Strength Member Material:

FRP

Service:

OEM&ODM

Standard Length:

2,000m/4000m

Number Of Fiber:

Oem Factory:

Yes

Operating Temperature:

-40°C To +70°C

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

outdoor fiber optic cable with warranty

GYFTY-8 fiber optic cable

durable outdoor fiber cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

GYFTY-8 Fiber Optic Cable

Product Specifications

Attribute	Value
Type	GYFTY-32F
Jacket Material	PE/LSZH
Out Jacket Color	Black
Strength Member Material	FRP
Service	OEM&ODM
Standard Length	2,000m/4000m
Number Of Fiber	32
Oem Factory	Yes
Operating Temperature	-40°C to +70°C
Name	Outdoor Fiber Optic Cable

The GYFTY-8 fiber optic cable is a robust, high-quality outdoor cable designed to deliver reliable and high-speed data transmission in harsh environments. Featuring 8 core single-mode or multimode fibers, this cable is built for durability, flexibility, and long-term performance in telecommunications, FTTH (Fiber to the Home), and industrial networks.

Constructed with loose tube technology, the GYFTY-8 provides excellent protection against moisture, temperature fluctuations, and mechanical stress. Its corrosion-resistant steel wire reinforcement and PE (polyethylene) outer sheath ensure superior resistance to UV radiation, water ingress, and rodent damage, making it ideal for direct burial, aerial, and duct installations.

Key features include:

- Low attenuation & high bandwidth for stable, high-speed data transfer

- Strong tensile strength for long-distance deployments

- Lightweight & flexible design for easy installation

- Compliance with international standards (IEC, ITU-T)

Whether for urban networks, rural broadband expansion, or industrial applications, the GYFTY-8 fiber optic cable offers a future-proof solution for seamless connectivity. Trust in its durability, performance, and versatility for your next infrastructure project.

Upgrade your network with GYFTY-8 – where reliability meets innovation.

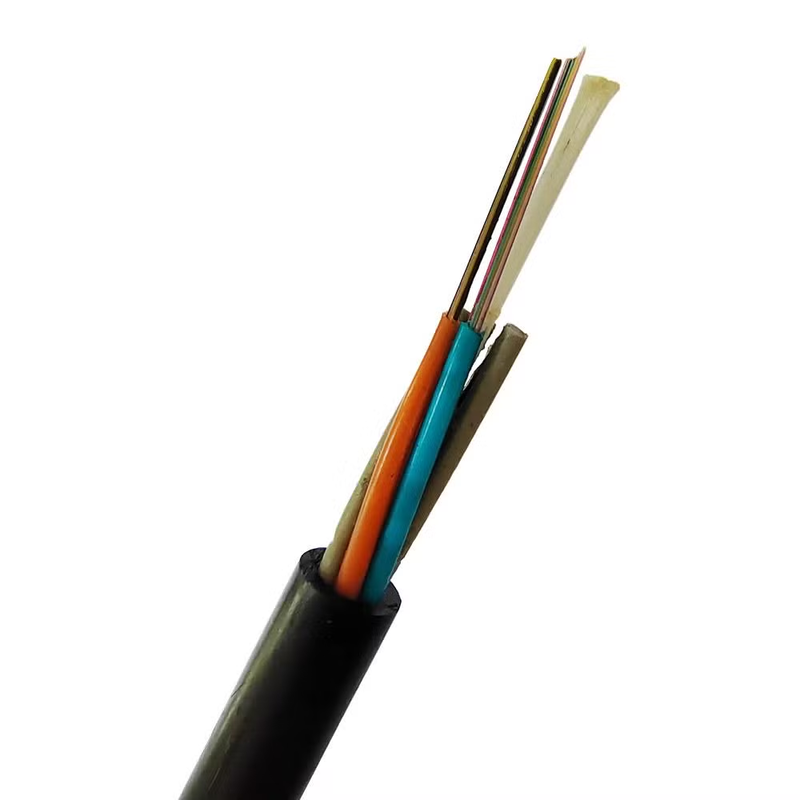

GYFTY-8 Fiber Optic Cable 0

Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
With good antielectromagnetism ability
Filler protect loose tuber fiber

Application

Adopted to Outdoor distribution
Adopted to trunk power transmission system
Access network and local network in high electromagnetic interfering places

Optical Characteristics

Parameter	Specification
Parameter	G652	50/125μm \| 62.5/125μm
Attenuation (+20℃) @850 nm		<=3.0dB/km \| <=3.3dB/km
Attenuation (+20℃) @1300 nm		<=1.0dB/km \| <=1.0dB/km
Attenuation (+20℃) @1310 nm	<=0.36dB/km
Attenuation (+20℃) @1550 nm	<=0.22dB/km
Bandwidth (Class A) @850 nm		>=500 MHzkm \| >=200 MHzkm
Bandwidth (Class A) @1300 nm		>=1000 MHzkm \| >=600 MHzkm
Numerical Aperture		0.200+-0.015NA \| 0.275+-0.015NA
Cable cut-off wavelength	<=1260 nm

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No.of (Tubes+ fillers)	Allowable Tensile Load (N)	Allowable Crush Resistance(N/100mm)
2~36	10.2	85	6	6	1500 (Short Term) 600 (Long Term)	1000 (Short Term) 300 (Long Term)
38~72	11.1	100	12	6	1500 (Short Term) 600 (Long Term)	1000 (Short Term) 300 (Long Term)
74~96	12.6	130	12	8	1500 (Short Term) 600 (Long Term)	1000 (Short Term) 300 (Long Term)
98~120	14.1	162	12	10	1500 (Short Term) 600 (Long Term)	1000 (Short Term) 300 (Long Term)
122~144	15.9	204	12	12	1800 (Short Term) 600 (Long Term)	1000 (Short Term) 300 (Long Term)
146~216	15.9	205	12	18(2 layers)	2200 (Short Term) 600 (Long Term)	1000 (Short Term) 300 (Long Term)
>144	Available upon customer request

Installation

Frequently Asked Questions

How is fiber-optic internet installed in my home?

The technician locates the optical network terminal.
The technician connects the fiber terminal to the network box.
The technician plugs your network box into power.
The technician connects your device to the network box.
