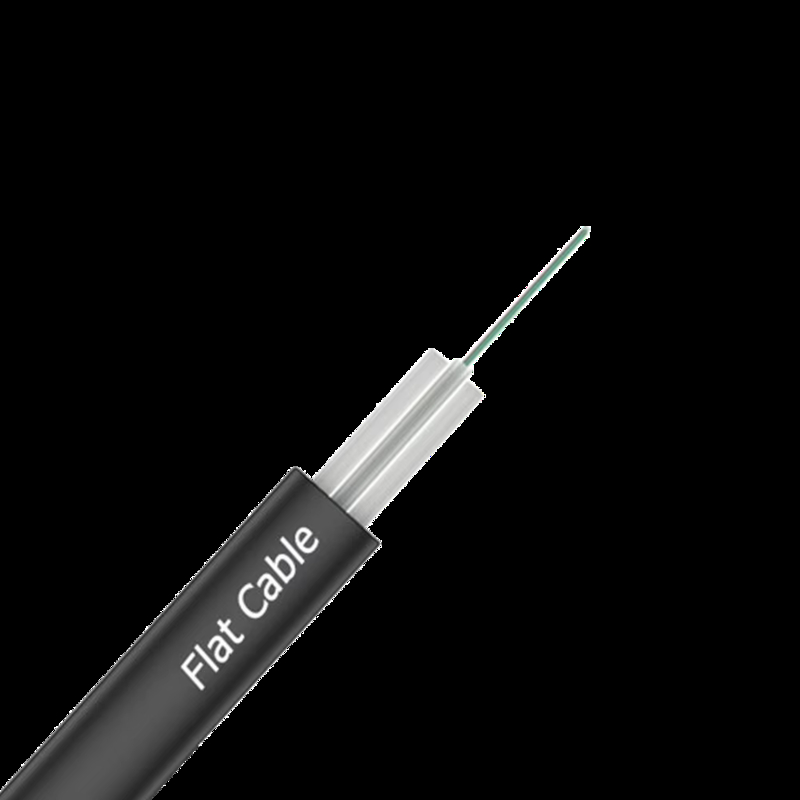

GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable

Name: GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFXTY-8b1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYFXTY-8b1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYFXTY-8b1.3

Type:

GYFXTY-8b1.3

Cores:

8 Fibers

Strength Member Material:

FRP

Construction:

Central Loose Tube

Useful:

Outdoor Fiber Optic Cable

Transport Package:

Wooden Drum

Cable Dimension:

6.8mm

Jacket Color:

Black

Mode:

Singlemode G652D

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

g652d outdoor fiber optic cable

singlemode outdoor fiber optic cable

g652d outdoor armored fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

GYFXTBY Outdoor Self Supporting Single Mode Optic Fiber Cable Flat Cable

Product Specifications

Attribute	Value
Type	GYFXTY-8b1.3
Cores	8 fibers
Strength Member Material	FRP
Construction	Central Loose Tube
Useful	Outdoor Fiber Optic Cable
Transport Package	Wooden Drum
Cable Dimension	6.8mm
Jacket Color	Black
Mode	Singlemode G652D
Name	Outdoor Fiber Optic Cable

Product Description

This kind of dielectric cables offer the ease of installation of standard flat cables in an easy-access, single-tube design. The dielectric version eliminates any bonding and grounding requirements. The cables can offer exceptional crush resistance. Uni-Tube All Dielectric Aerial Drop cable is especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds.

Key Characteristics

Small size, Low cost
The fiber counts is up to 24 fibers
Uni-tube gel-filled construction for superior fiber protection
Two parallel FRP wire and overall glass yarn to enhance tensile resistant
Protects cable from mechanical damage
Designed for use with inexpensive attachment hardware
Self-supported - no messenger needed

Technical Specifications

Cable Count	Out sheath Diameter (MM)	Weight (KG)	Minimum allowable Tensile Strength (N)	Minimum allowable Crush Load (N/100mm)	Minimum Bending Radius	Storage temperature (℃)
2	7.2	45	1200 (short term) 500 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	20
4	7.2	45	1200 (short term) 500 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	20
6	7.2	45	1200 (short term) 500 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	20
8	7.2	45	1200 (short term) 500 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	20
12	7.2	45	1200 (short term) 500 (long term)	1000 (short term) 300 (long term)	20D (short term) 10D (long term)	20
