Home > products >
ADSS Fiber Optic Cable
>
Single Jacket ADSS Communication Cable Span 50M to 200M

Single Jacket ADSS Communication Cable Span 50M to 200M

Product Details:
Place of Origin: Guangdong, China
Brand Name: PUNAISGD
Certification: CE/ROHS/ISO9001
Model Number: ADSS-72B1.3-60m
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
PUNAISGD
Certification:
CE/ROHS/ISO9001
Model Number:
ADSS-72B1.3-60m
Type:
ADSS-72B1.3-60m
Application:
Telecom Comunication
Strength Member:
Kevlar
Jacket Color:
Black Color
Packing:
Wooden Drum
Number Of Conductors:
72 Cores
Fiber Type:
G652D
Outer Sheath:
PE/AT,AT/PE,PE
Span:
60
Name:
ADSS Fiber Optic Cable
Highlight:

High Light

Highlight:

communication adss fiber optic cable

,

communication adss optic fiber cable

,

single jacket adss fiber optic cable

Trading Information
Minimum Order Quantity:
1km
Price:
negociate
Packaging Details:
wooden drum
Delivery Time:
7days
Payment Terms:
T/T,Western Union
Supply Ability:
100000
Product Description
Single Jacket ADSS Communication Cable Span 50M to 200M
Product Specifications
Attribute Value
Type ADSS-72B1.3-60m
Application Telecom Communication
Strength member Kevlar
Jacket color Black Color
Packing Wooden drum
Number of conductors 72 cores
Fiber type G652D
Outer sheath PE/AT,AT/PE,PE
Span 60
Selecting the Right ADSS Cable

Choosing the appropriate ADSS (All-Dielectric Self-Supporting) cable requires careful consideration of several key factors to ensure optimal performance for your project:

  • Span Length: Select based on distance between support structures (80m for short spans, up to 700m for longer spans)
  • Fiber Count: Determine required fiber quantity (6,12,24,48,96,144 cores) for your data transmission needs
  • Fiber Type: G.652.D is the most commonly used standard
  • Environmental Conditions: Consider wind, ice, and UV exposure when selecting protective sheathing
  • Proximity to Power Lines: Verify electrical safety characteristics for installations near power lines
  • Mechanical Loads: Assess tensile strength and weight requirements for installation and environmental stress
  • Cable Diameter and Weight: Balance strength with installation and support structure limitations
ADSS Cable Types
  • Single Jacket ADSS Cable For 50M to 200M Span
  • Double Jackets ADSS Cable For 200M to 1500M Span
  • 12/24/48/96 Core 100M SPAN ADSS SM G652D Cable
  • No Metal FRP ADSS Fiber Optic Cable 300m 400m Span
  • ADSS 48FO 100M 200M SPAN Outdoor Aerial Fiber Optical Cable
  • HDPE 6/12/24/48/96/144 Core ADSS Fiber Cable With Aramid Yarn
  • 600M 800M 1000M Span Aerial ADSS Outdoor Fiber Optic Cables With Aramid Yarn
  • 24 Core ADSS Fiber Optic Cable, G652D, 120m Span

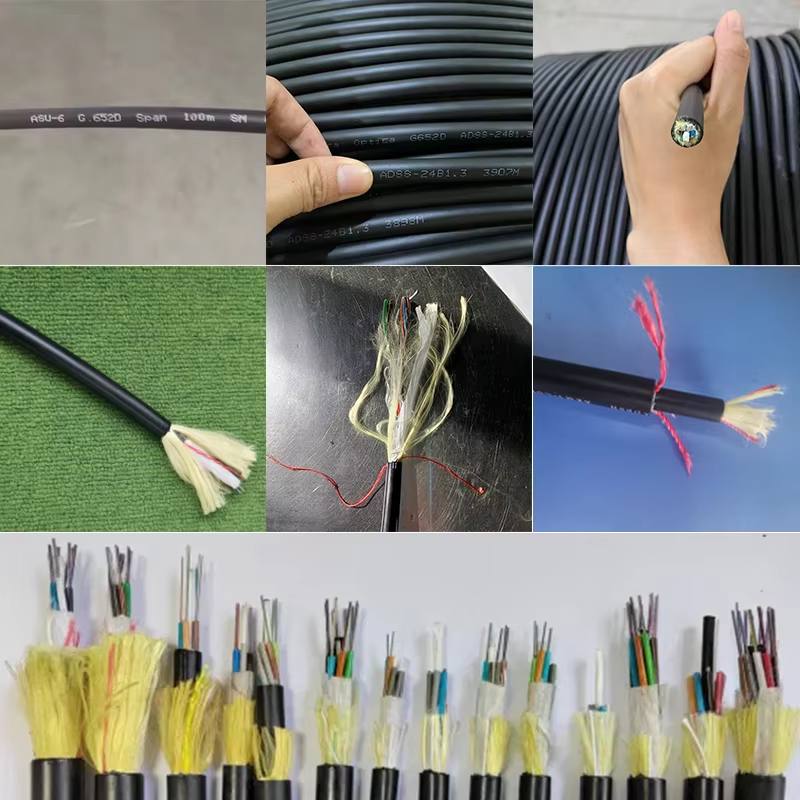

Single Jacket ADSS Communication Cable Span 50M to 200M 0
What is ADSS All Dielectric Self Supported Optical Cable?

Aramid Yarn G652D ADSS Communication Fiber Optic Cable features a loose-jacketed stranded structure. Single-mode or multimode optical fiber is jacketed into a high-modulus plastic loose tube filled with water-repellent compound. The tube (with filling rope) is twisted around a central nonmetallic FRP reinforcement to form a compact circular cable core. The core is filled with water-blocking material, reinforced with aramid fiber, and finished with a polyethylene or electric trace-resistant outer sheath.

ADSS Cable Variants
  • Single sheath: FRP + Aramid yarn + Outer sheath
  • Double sheath: FRP + Inner sheath + Aramid yarn + Outer sheath
Optical Characteristics
Item Contents Value
Fiber Count 24 48
72 96
Loose Tube No. of tubes*fiber per tube 4*6
4*12 6*12
Outer Diameter(mm) 2.1 2.5
Attenuation @850nm ≤3.0dB/km
@1300nm ≤1.0dB/km
@1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Bandwidth @850nm ≥500MHZ.km
Numerical aperture 0.200±0.015NA
Single Jacket ADSS Communication Cable Span 50M to 200M 1 Single Jacket ADSS Communication Cable Span 50M to 200M 2 Single Jacket ADSS Communication Cable Span 50M to 200M 3 Single Jacket ADSS Communication Cable Span 50M to 200M 4 Single Jacket ADSS Communication Cable Span 50M to 200M 5
Our Manufacturing Facility
Single Jacket ADSS Communication Cable Span 50M to 200M 6 Single Jacket ADSS Communication Cable Span 50M to 200M 7 Single Jacket ADSS Communication Cable Span 50M to 200M 8
Frequently Asked Questions
Why choose us?

We are a manufacturer based in Guangzhou, China, operating since 2011. Our products are sold to domestic markets with a workforce of 11-50 employees dedicated to quality production.

How do we guarantee quality?

We conduct pre-production sampling before mass production and perform final inspections before shipment to ensure consistent quality standards.

Can you send products to my country?

Yes, we can ship worldwide. If you don't have your own shipping forwarder, we can assist with logistics arrangements.

Can you do OEM for me?

We accept all OEM orders. Contact us with your design requirements and we will provide competitive pricing and produce samples for approval.

What services do we provide?

We offer various delivery terms (FOB, CIF, EXW), accept multiple currencies (USD, EUR, JPY, etc.), and provide flexible payment options (T/T, L/C, PayPal, etc.). Our team communicates in English and Chinese.
