Stranded Loose Tube Micro Air Blown Fiber Optic Cable GYFY

Name: Stranded Loose Tube Micro Air Blown Fiber Optic Cable GYFY
Brand: guangzhou fiber cablepuls co ltd
SKU: GCYFY-72B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GCYFY-72B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GCYFY-72B1.3

Type:

GCYFY-72B1.3

Jacket Material:

PE/LSZH

Out Jacket Color:

Black

Strength Member Material:

FRP

Service:

OEM&ODM

Standard Length:

2,000m/4000m

Number Of Fiber:

Oem Factory:

Yes

Operating Temperature:

-40°C To +70°C

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

loose tube outdoor fiber optic cable

loose tube outdoor armored fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

Stranded Loose Tube Micro Air Blown Fiber Optic Cable GYFY

Product Specifications

Attribute	Value
Type	GCYFY-72B1.3
Jacket Material	PE/LSZH
Out Jacket Color	Black
Strength Member Material	FRP
Service	OEM&ODM
Standard Length	2,000m/4000m
Number Of Fiber	72
Oem Factory	Yes
Operating Temperature	-40°C to +70°C

Product Overview

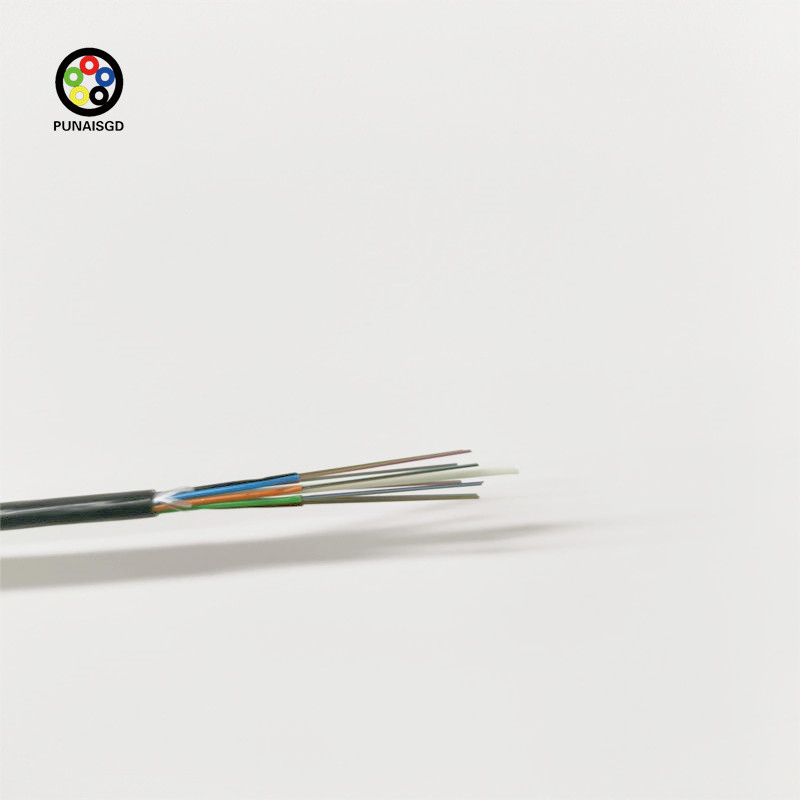

The Stranded Loose Tube Micro Air Blown Fiber Optic Cable GYFY is designed for micro air-blown fiber installation systems. Its stranded loose tube construction provides flexibility and ease of installation for both outdoor and indoor applications.

The cable structure features 250μm optical fibers jacketed with high modulus material in loose tubes filled with waterproof compound. These tubes are twisted around a central strengthening core to form a compact round cable core, with moisture-proof yarn filling the gaps, all protected by a PE sheath.

Technical Specifications

Type	O.D. (mm)	Weight (Kg/km)	Tensile strength Long/short term (N)	Crush Long/short term (N/100mm)	Number of tubes/fibre count per tube
GCYFY-12B1.3	4.5	16	0.3G/1.0G	150/500	2/6
GCYFY-24B1.3	4.5	16	0.3G/1.0G	150/500	4/6
GCYFY-36B1.3	4.5	16	0.3G/1.0G	150/500	6/6
GCYFY-24B1.3	5.4	26	0.3G/1.0G	150/500	2/12
GCYFY-48B1.3	5.4	26	0.3G/1.0G	150/500	4/12
GCYFY-72B1.3	5.4	26	0.3G/1.0G	150/500	6/12
GCYFY-96B1.3	6.1	33	0.3G/1.0G	150/500	8/12
GCYFY-144B1.3	7.9	52	0.3G/1.0G	150/500	12/12
GCYFY-192B1.3	7.9	52	0.3G/1.0G	150/500	16/12
GCYFY-216B1.3	7.9	52	0.3G/1.0G	150/500	18/12
GCYFY-288B1.3	9.3	80	0.3G/1.0G	150/500	24/12
