GYFHTH68 Anti-rodent Fiber Optic Cable 36 Cores

Name: GYFHTH68 Anti-rodent Fiber Optic Cable 36 Cores
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFHTH68-24b1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYFHTH68-24b1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYFHTH68-24b1.3

Type:

GYFHTH68-36b1.3

Application:

Telecom Comunication

Strength Member:

Kevlar And Glass Yarn

Jacket Color:

Black Color

Packing:

Wooden Drum

Number Of Conductors:

36 Cores

Fiber Type:

G652D

Outer Sheath:

PE/AT,AT/PE,PE

Span:

100

Name:

ADSS Fiber Optic Cable

Highlight:

High Light

Highlight:

black adss fiber optic cable

black adss optic fiber cable

g652d adss fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

100000

Product Description

GYFHTH68 Anti-rodent Fiber Optic Cable 36 Cores

Product Specifications

Attribute	Value
Type	GYFHTH68-36b1.3
Application	Telecom Communication
Strength member	kevlar and glass yarn
Jacket color	Black Color
Packing	Wooden drum
Number of conductors	36 cores
Fiber type	G652D
Outer sheath	PE/AT,AT/PE,PE
Span	100
Name	ADSS Fiber Optic Cable

Product Description

ADSS 24-wire anti-rodent type fiber optic cable, this design combines enhanced optical reliability with the highest degree of rodent resistance available in an all-dielectric cable. ADSS FRP Defender-Anti Rodent also can be used as an all-dielectric direct buried cable solution.

ADSS Cable Anti Rodent Features

Anti-rodent additive in the outer jacket for first-line protection
Designed for use in aerial applications of 138 kV or less where damage from squirrels/rodents is apparent
Superior protection from mechanical damage - FRP rods provide strength and second-line protection
Completely protected from water ingress

Technical Details

What is ADSS All Dielectric Self Supported Optical Cable?

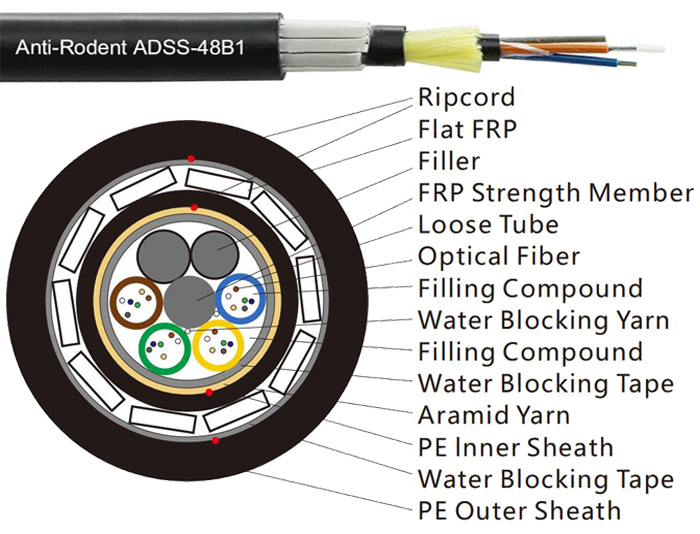

Aramid Yarn G652D ADSS Communication Fiber Optic Cable, adopts loose-jacketed stranded structure. Single-mode or multimode optical fiber is jacketed into a loose tube made of high-modulus plastic, and the tube is filled with water-repellent compound. Loose tube (filling rope) is twisted around the central nonmetallic reinforcement (FRP) to form a compact circular cable core, the gap in the cable core is filled with water-blocking filler, and the cable core is twisted with a layer of aramid fiber for reinforcement, and finally a polyethylene sheath or an electric trace-resistant outer sheath is extruded.

Different kinds of ADSS cable:

Single sheath: structure--FRP+Aramid yarn+Outer sheath

Double sheath: structure--FRP+Inner sheath+Aramid yarn+Outer sheath

PRODUCT SPECIFICATIONS

Optical Characteristics

Item	Contents	Value
Fiber Count	24	48
Fiber Count	72	96
Loose Tube	No. of tubes*fiber per tube	4*6
Outer Diameter(mm)	2.1	2.5
Attenuation	@850nm	≤3.0dB/km (50/125um) ≤3.2dB/km (62.5/125um)
	@1300nm	≤1.0dB/km (50/125um) ≤1.2dB/km (62.5/125um)
	@1310nm	≤0.36dB/km (G.652) ≤0.40dB/km (G.655)
	@1550nm	≤0.22dB/km (G.652) ≤0.23dB/km (G.655)
Bandwidth	@850nm	≥500MHZ.km (50/125um) ≥200MHZ.km (62.5/125um)
	@1300nm	≥1000MHZ.km (50/125um) ≥600MHZ.km (62.5/125um)
	Numerical aperture	0.200±0.015NA (50/125um) 0.275±0.015NA (62.5/125um)
Cable cut-off wavelength	≤1260mm (G.652) ≤1450mm (G.655)

Our Factory

Frequently Asked Questions

1. Why choose us?

We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%). There are total about 11-50 people in our factory.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

3. Can you send products to my country?

Sure, we can. If you do not have your own ship forwarder, we can help you.

4. Can you do OEM for me?

We accept all OEM orders, just contact us and give me your design. We will offer you a reasonable price and make samples for you.

5. What services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
