Attribute | Value |
---|---|
Type | GYFTY-36B1.3 |
Jacket Material | PE/LSZH |
Out Jacket Color | Black |
Strength Member Material | FRP |
Service | OEM&ODM |
Standard Length | 2,000m/4000m |
Number Of Fiber | 36 |
Oem Factory | Yes |
Operating Temperature | -40°C to +70°C |
Name | Outdoor Fiber Optic Cable |
Outdoor FRP Aerial Fiber Optic Cable (GYFTY) For Duct And Aerial. GYFTY fiber optic wire is an non-metallic cable used in power transmission system and high electromagnetic interface. It's a perfect fiber optic cable for lighting protection effect with all-dielectric materials.

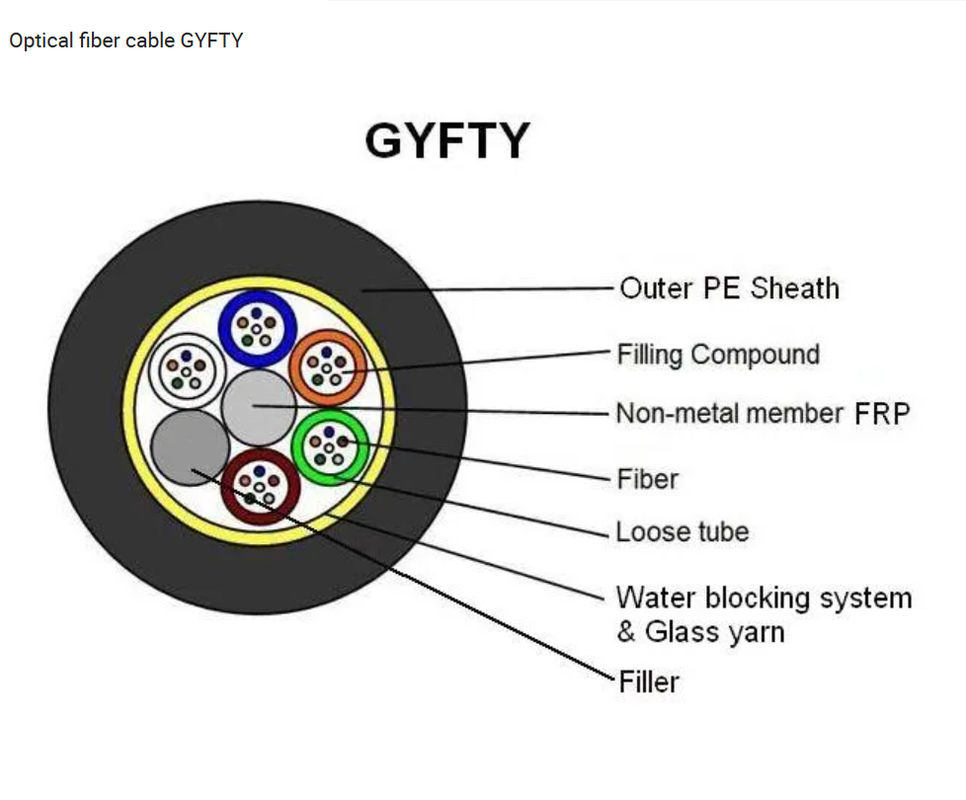

It is made of high modulus plastic materials, while the loose tubes strand together around non-metallic central strength member (FRP) into a compact and circular cable core. The water-blocking materials are distributed into the interstices of the cable core. Our GYFTY Fiber Optic Cable is putting 2-192 fibers cores in the central loose tube and with singlemode or mulitimode for options.
Parameter | Specification | ||
---|---|---|---|
G652 | 50/125μm | 62.5/125μm | |
Attenuation (+20℃) @850 nm | - | ≤3.0dB/km | ≤3.3dB/km |
Attenuation (+20℃) @1300 nm | - | ≤1.0dB/km | ≤1.0dB/km |
Attenuation (+20℃) @1310 nm | ≤0.36dB/km | - | - |
Attenuation (+20℃) @1550 nm | ≤0.22dB/km | - | - |
Bandwidth (Class A) @850 nm | - | ≥500 MHz*km | ≥200 MHz*km |
Bandwidth (Class A) @1300 nm | - | ≥1000 MHz*km | ≥600 MHz*km |
Numerical Aperture | - | 0.200±0.015NA | 0.275±0.015NA |
Cable cut-off wavelength | ≤1260 nm | - | - |
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber Per Tube | Max No.of (Tubes+ fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance(N/100mm) | ||
---|---|---|---|---|---|---|---|---|
Short Term | Long Term | Short Term | Long Term | |||||
2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 |
>144 | Available upon customer request |
