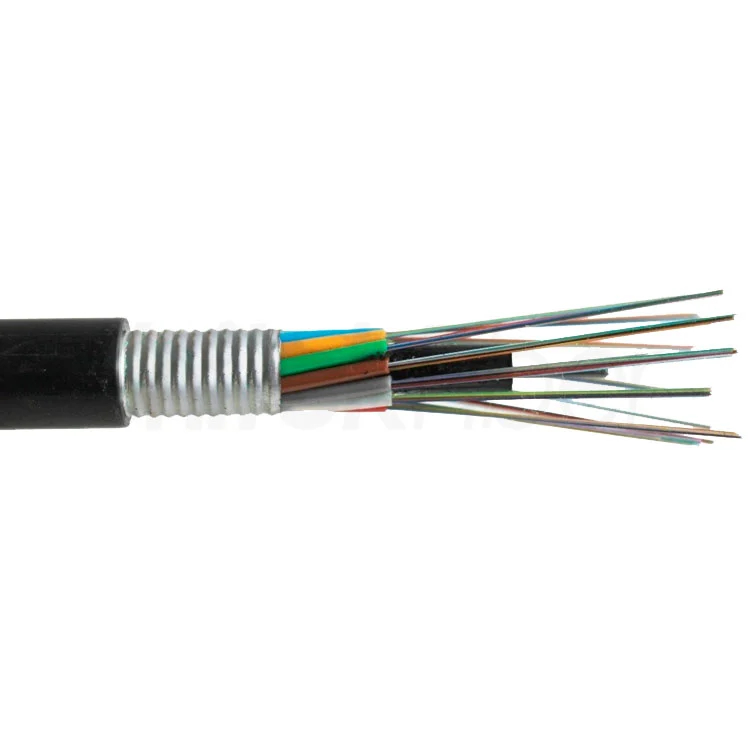

GYTS GYTA Stranded Loose Tube Light-armored Cable

Name: GYTS GYTA Stranded Loose Tube Light-armored Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTS-24B1.3-288b1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYTS-24B1.3-288b1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYTS-24B1.3-288b1.3

Type:

GYTS-24B1.3-288b1.3

Number Of Conductors:

24B1.3-288B1.3

Strength Member:

FRP/steel Wire

Application:

Duct

Outer Jacket Material:

PE(Black)

Armor Layer:

Aluminum

Package:

Wooden Drum

Fiber Type:

G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3

Fiber Color:

Blue,Orange,Brown,Aqua,Grey

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

gyts outdoor fiber optic cable

gyts outdoor armored fiber optic cable

armored outdoor fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000

Product Description

GYTS GYTA Stranded Loose Tube Light-armored Cable

Product Specifications

Type	GYTS-24B1.3-288b1.3
Number of Conductors	24B1.3-288B1.3
Strength member	FRP/steel wire
Application	Duct
Outer Jacket Material	PE (Black)
Armor Layer	Aluminum
Package	Wooden Drum
Fiber type	G652D, single mode or multi mode, 50/125, 62.5/125, OM3
Fiber color	Blue, Orange, Brown, Aqua, Grey

Product Description

GYTA optical cable is an outdoor optical cable with an aluminum armor layer and a reinforced core. The "GY" designation indicates that the outer sheath material is glass fiber, while "TA" signifies the internal filler is thermoplastic elastomer.

Key Features

Excellent tensile strength and pressure resistance
Superior anti-aging and corrosion resistance
Low transmission loss
Ideal for long-distance communication and broadband access

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	8.5±0.3	75

Frequently Asked Questions

Why choose us?

We are a manufacturer located in Guangzhou, China, operating since 2011. Our factory employs 11-50 people and serves domestic markets.

How do we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment.

Can you ship to my country?

Yes, we can arrange shipping even if you don't have your own forwarder.

Do you offer OEM services?

We accept all OEM orders. Contact us with your design for a quote and samples.

What services do we provide?

Delivery Terms: FOB, CIF, EXW
Payment: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
