Attribute | Value |
---|---|
Type | GYXTC8Y-12B1.3 |
Crush Resistance | 1000N/2000N/3000N |
Central Strength Member | FRP or Steel Wire |
Fiber Model | G652D |
Temperature | -20 to 70°C |
Cable Diameter | 7.0mm |
Manufacturer | Yes |
Name | Outdoor Fiber Optic Cable |

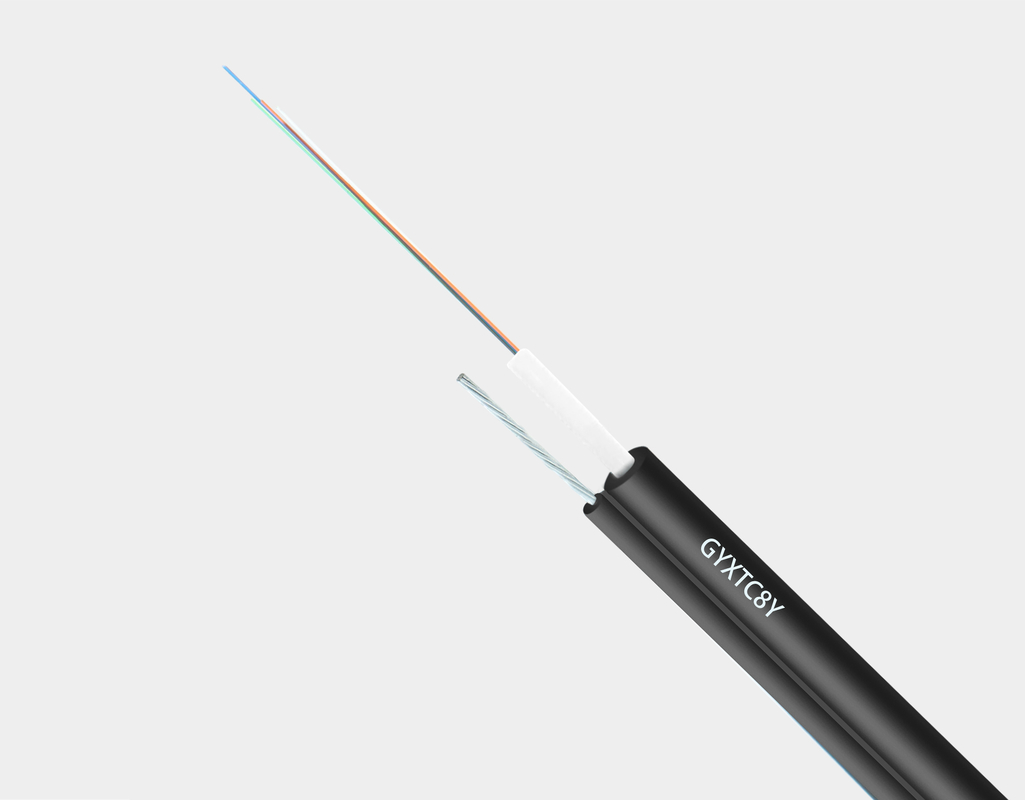

GYXTC8Y cable is designed for tough outdoor use, providing robust aerial applications. The central member increases strength significantly. Inside, a loose tube holds fibers securely while water-blocking material provides enhanced moisture resistance. Corrugated steel tape offers radial strength, and a black PE jacket provides complete protection.
The cable features 125.0±0.1µm fiber cladding with a fiber diameter of 242±7 µm. The figure-8 shape design makes support location easy. Key dimensions include diameter (8.0 ±0.20mm) (15.0 ±0.20mm), stranded wire (1.0mm7 strands), PBT tube thickness (0.3±0.05mm), and tube diameter (2.5±0.1 um). The steel tape is 0.15±0.015 thick with corrugated steel measuring 0.4 ±0.015. The outer covering provides excellent UV protection.
Part NO | Fiber Count | Tubes | Fillers | Cable OD(mm) | Cable Weight(kg/km) |
---|---|---|---|---|---|
GYTC8S -2~6 | 2~6 | 1 | 4 | 10.2*19.8 | 204 |
GYTC8S -8~12 | 8~12 | 2 | 3 | 10.2*19.8 | 204 |
GYTC8S -14~18 | 14~18 | 3 | 2 | 10.2*19.8 | 204 |
GYTC8S -20~24 | 20~24 | 4 | 1 | 10.2*19.8 | 204 |
GYTC8S-26~30 | 26~30 | 5 | 0 | 10.2*19.8 | 204 |
GYTC8S -32~36 | 32~36 | 6 | 0 | 10.8*20.4 | 225 |
GYTC8S -38~48 | 38~48 | 4 | 1 | 11.5*21.1 | 236 |
GYTC8S -50~60 | 50~60 | 5 | 0 | 11.5*21.1 | 236 |
GYTC8S -62~72 | 62~72 | 6 | 0 | 12.3*21.9 | 270 |
GYTC8S -74~84 | 74~84 | 7 | 1 | 13.1*22.7 | 283 |
GYTSC8S-86~96 | 86~96 | 8 | 0 | 13.8*23.4 | 299 |
GYTC8S -98~108 | 98~108 | 9 | 1 | 14.6*24.2 | 319 |
GYTC8S -110~120 | 110~120 | 10 | 0 | 15.4*25 | 340 |
GYTC8S -122~132 | 122~132 | 11 | 1 | 16.2*25.8 | 361 |
GYTC8S-134~144 | 134~144 | 12 | 0 | 16.9*26.5 | 380 |
