Single Mode Overhead Electric Power ADSS Armored Fiber Optic Cable

Name: Single Mode Overhead Electric Power ADSS Armored Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-48B1.3-150M
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	ADSS-48B1.3-150M

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

ADSS-48B1.3-150M

Name:

Overhead Power Cable

Type:

ADSS-48B1.3-150M

Fiber Type:

Single-mode G.652D

Model No:

All Dielectric Cable

Strength Member:

Aramid Yarn

Cable Model:

Double Jacket 150m Span

Package:

Wooden Drum/Customized

Cable Weight:

180 Kg/km

Life Expectancy:

30 Years

Outer Diameter:

10.0mm

Highlight:

High Light

Highlight:

Single Mode Overhead Power Cable

ADSS Armored Fiber Optic Cable

Armoured Fibre Optic Cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

100000

Product Description

Overhead Electric Power ADSS Armored Fiber Optic Cable No Armoured Track Resistant Outer Sheath

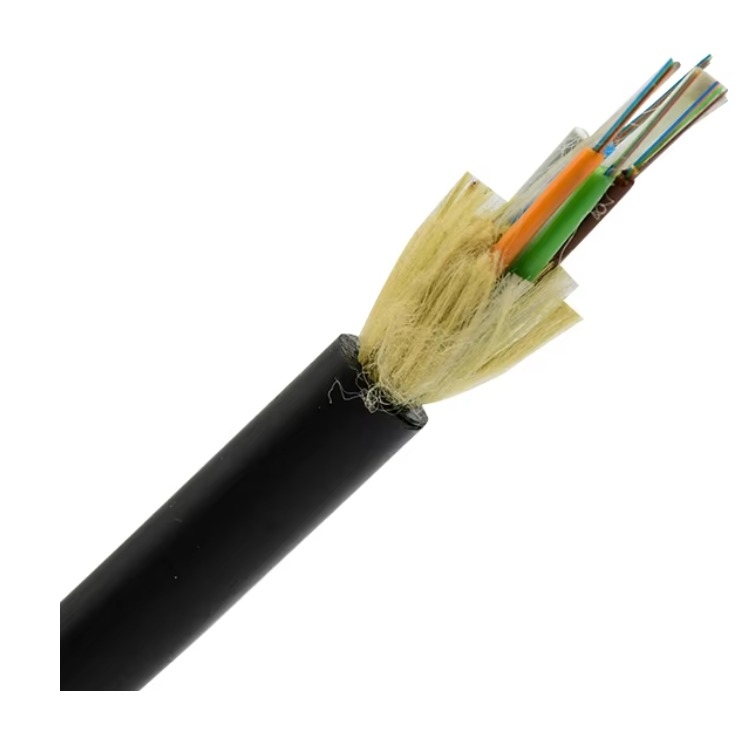

Overhead Electric Power ADSS Armored Fiber Optic Cable

Product Overview

ADSS (All-Dielectric Self-Supporting) fiber optic cable with loose tube construction, featuring:

Jelly-filled tubes with filler rods
Non-metallic FRP (Fiber-glass Reinforced Plastic) central strength member
Water-blocking material
Aramid yarn reinforcement
Track-resistant HDPE outer sheath

Designed for aerial installation with a 150m span, primarily for existing 220kV or lower voltage power lines.

Key Specifications

Attribute	Value
Type	ADSS-48B1.3-150M
Fiber Type	Single-mode G.652D
Strength Member	Aramid Yarn
Cable Model	Double jacket 150m Span
Package	Wooden Drum/Customized
Cable Weight	180 kg/km
Life Expectancy	30 Years
Outer Diameter	10.0mm

Technical Specifications

Fiber Data

Fiber Type	Attenuation @1310nm (dB/KM)	Attenuation @1550nm (dB/KM)	1310nm MFD	Cable Cut-off Wavelength λcc (nm)
G652D	≤0.36	≤0.22	9.2±0.4	≤1260
G657A1	≤0.36	≤0.22	9.2±0.4	≤1260
G657A2	≤0.36	≤0.22	9.2±0.4	≤1260
G655	≤0.4	≤0.23	(8.0-11)±0.7	≤1450

Mechanical Parameters

Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	100m Span Tensile Strength (N)	Crush Resistance (N/100mm)	Bending Radius (mm)
2-12	9.8	80	1000	300	10D
24	9.8	80	1000	300	10D
36	9.8	80	1000	300	10D
48	9.8	80	1000	300	10D
72	10	80	1000	300	10D
96	11.4	100	1000	300	10D
144	14.2	150	1000	300	10D

Application & Installation

Primary Application: Power line communications, dielectric needed environments, and large span communication lines.

Laying Method: Self-supporting aerial installation

Operating Temperature Range

Transportation	Installation	Operation
-40℃~+70℃	-5℃~+45℃	-40℃~+70℃

Standards Compliance

DL/T 788-2016

Packaging & Marking

Cables are coiled on bakelite, wooden, or ironwood drums with proper protection during transportation:

Sealed ends with minimum 3m reserve length
Protected from moisture, high temperatures, and mechanical stress
White markings at 1-meter intervals on outer sheath
Customizable legend per user requirements
