Figure 8 Aerial Self-Supporting Non-armored Fiber Optic Cable (GYTC8Y)

Name: Figure 8 Aerial Self-Supporting Non-armored Fiber Optic Cable (GYTC8Y)
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTC8Y-24B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Model Number:	GYTC8Y-24B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Model Number:

GYTC8Y-24B1.3

Type:

GYTC8S-24B1.3

Crush Resistance:

1000N/2000N/3000N

Central Strength Member:

FRP Or Steel Wire

Fiber Model:

G652D

Temperature:

-20 To 70°C

Cable Diameter:

9.0mm

Armored Tape:

Steel Tape

Manufacturer:

Yes

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

armored outdoor fiber optic cable

g652d outdoor fiber optic cable

g652d outdoor armored fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

Figure 8 Aerial Self-Supporting Non-armored Fiber Optic Cable (GYTC8Y)

Product Specifications

Attribute	Value
Type	GYTC8S-24B1.3
Crush Resistance	1000N/2000N/3000N
Central Strength Member	FRP or Steel Wire
Fiber Model	G652D
Temperature Range	-20 to 70°C
Cable Diameter	9.0mm
Armored Tape	Steel tape

Product Description

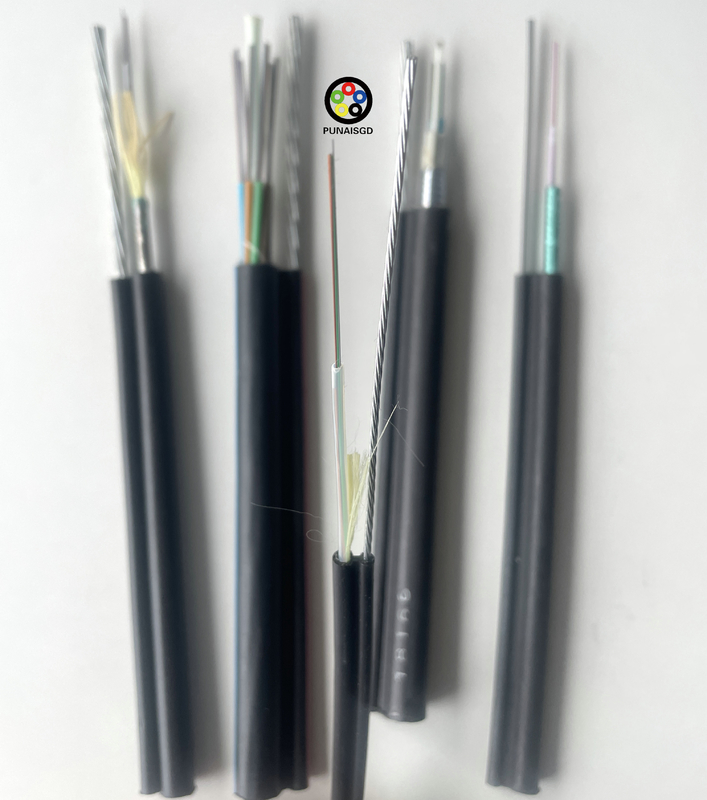

The Figure 8 Aerial Self-Supporting Non-armored Fiber Optic Cable (GYTC8Y) features loose tubes made of high modulus plastic (PBT), filled with water-resistant gel. These tubes are stranded around a non-metallic FRP strengthen member, with an outer sheath of UV-resistant PE jacket. The figure 8 self-supporting structure provides high tensile strength for cost-effective aerial installations.

Technical Specifications

Part NO	Fiber Count	Tubes	Fillers	Cable OD (mm)	Cable Weight (kg/km)
GYTC8S -2~6	2~6	1	4	10.2*19.8	204
GYTC8S -8~12	8~12	2	3	10.2*19.8	204
GYTC8S -14~18	14~18	3	2	10.2*19.8	204
GYTC8S -20~24	20~24	4	1	10.2*19.8	204
GYTC8S-26~30	26~30	5	0	10.2*19.8	204
GYTC8S -32~36	32~36	6	0	10.8*20.4	225
GYTC8S -38~48	38~48	4	1	11.5*21.1	236
GYTC8S -50~60	50~60	5	0	11.5*21.1	236
GYTC8S -62~72	62~72	6	0	12.3*21.9	270
GYTC8S -74~84	74~84	7	1	13.1*22.7	283
GYTSC8S-86~96	86~96	8	0	13.8*23.4	299
GYTC8S -98~108	98~108	9	1	14.6*24.2	319
GYTC8S -110~120	110~120	10	0	15.4*25	340
GYTC8S -122~132	122~132	11	1	16.2*25.8	361
GYTC8S-134~144	134~144	12	0	16.9*26.5	380
