Figure 8 Optical Cable 72 Core Fiber Optic Cable Gytc8y

Name: Figure 8 Optical Cable 72 Core Fiber Optic Cable Gytc8y
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTC8S-72B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Model Number:	GYTC8S-72B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Model Number:

GYTC8S-72B1.3

Type:

GYTC8S-72B1.3

Crush Resistance:

1000N/2000N/3000N

Central Strength Member:

FRP Or Steel Wire

Fiber Model:

G652D

Temperature:

-20 To 70°C

Cable Diameter:

7.0mm/9.0mm/12.0mm

Armored Tape:

Steel Tape

Manufacturer:

Yes

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

72 core fiber optic cable 24 core

g652d 72 core fiber optic cable

g652d fiber optic cable 24 core

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

Figure 8 Optical Cable 72 Core Fiber Optic Cable GYTC8Y

Product Attributes

Attribute	Value
Type	GYTC8S-72B1.3
Crush Resistance	1000N/2000N/3000N
Central Strength Member	FRP or Steel Wire
Fiber Model	G652D
Temperature	-20 to 70°C
Cable Diameter	7.0mm/9.0mm/12.0mm
Armored Tape	Steel tape
Manufacturer	Yes
Name	Outdoor Fiber Optic Cable

Product Description

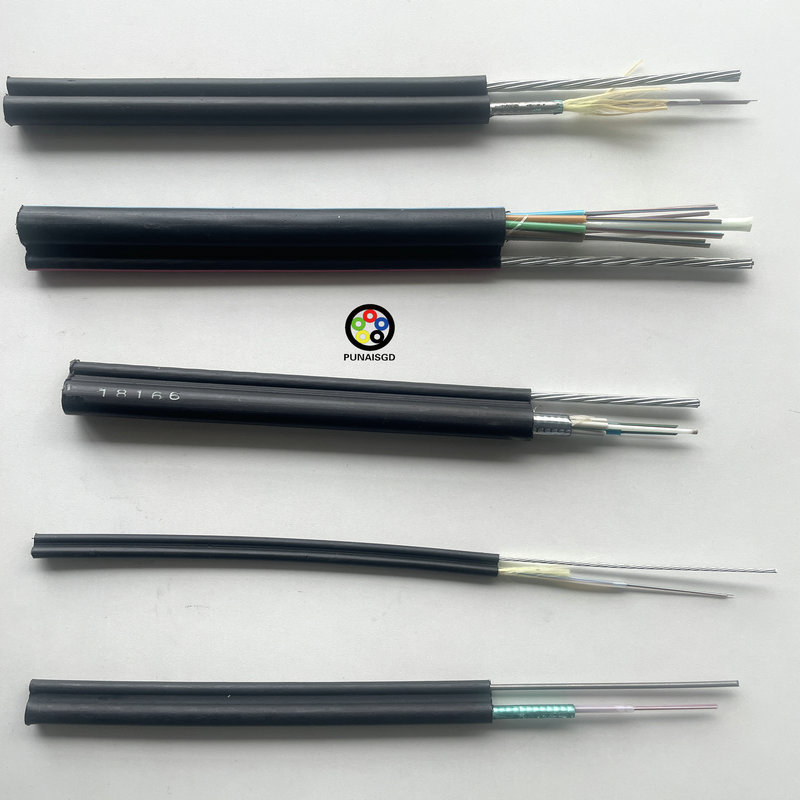

GYTC8Y is a typical self-supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application. The stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. PE outer sheath provides crush resistance and gun shot resistance features. The FRP central strength improves the tensile strength and it is surrounded by the loose tube and water blocking tape and glass fiber. The impact structure ensures excellent mechanical and environmental performance.

Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers' requirements.

Specifications

Part NO	Fiber Count	Tubes	Fillers	Cable OD(mm)	Cable Weight(kg/km)
GYTC8S -2~6	2~6	1	4	10.2*19.8	204
GYTC8S -8~12	8~12	2	3	10.2*19.8	204
GYTC8S -14~18	14~18	3	2	10.2*19.8	204
GYTC8S -20~24	20~24	4	1	10.2*19.8	204
GYTC8S-26~30	26~30	5	0	10.2*19.8	204
GYTC8S -32~36	32~36	6	0	10.8*20.4	225
GYTC8S -38~48	38~48	4	1	11.5*21.1	236
GYTC8S -50~60	50~60	5	0	11.5*21.1	236
GYTC8S -62~72	62~72	6	0	12.3*21.9	270
GYTC8S -74~84	74~84	7	1	13.1*22.7	283
GYTSC8S-86~96	86~96	8	0	13.8*23.4	299
GYTC8S -98~108	98~108	9	1	14.6*24.2	319
GYTC8S -110~120	110~120	10	0	15.4*25	340
GYTC8S -122~132	122~132	11	1	16.2*25.8	361
GYTC8S-134~144	134~144	12	0	16.9*26.5	380
