Aerial Outdoor Flat Drop Fiber Optic Cable GYFXTBY

Name: Aerial Outdoor Flat Drop Fiber Optic Cable GYFXTBY
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFXTBY-1-12b1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYFXTBY-1-12b1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYFXTBY-1-12b1.3

Type:

GYFXTBY-1-12b1.3

Cores:

2/4/6/8/12 Fibers

Strength Member Material:

FRP

Construction:

Central Loose Tube

Useful:

Outdoor Fiber Optic Cable

Transport Package:

Wooden Drum

Cable Dimension:

6.5mm

Jacket Color:

Black

Mode:

Singlemode G652D

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

g652d outdoor fiber optic cable

singlemode outdoor fiber optic cable

g652d outdoor armored fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

Aerial Outdoor Flat Drop Fiber Optic Cable GYFXTBY

Product Specifications

Attribute	Value
Type	GYFXTBY-1-12b1.3
Cores	2/4/6/8/12 fibers
Strength Member Material	FRP
Construction	Central Loose Tube
Useful	Outdoor Fiber Optic Cable
Transport Package	Wooden Drum
Cable Dimension	6.5mm
Jacket Color	Black
Mode	Singlemode G652D

Product Overview

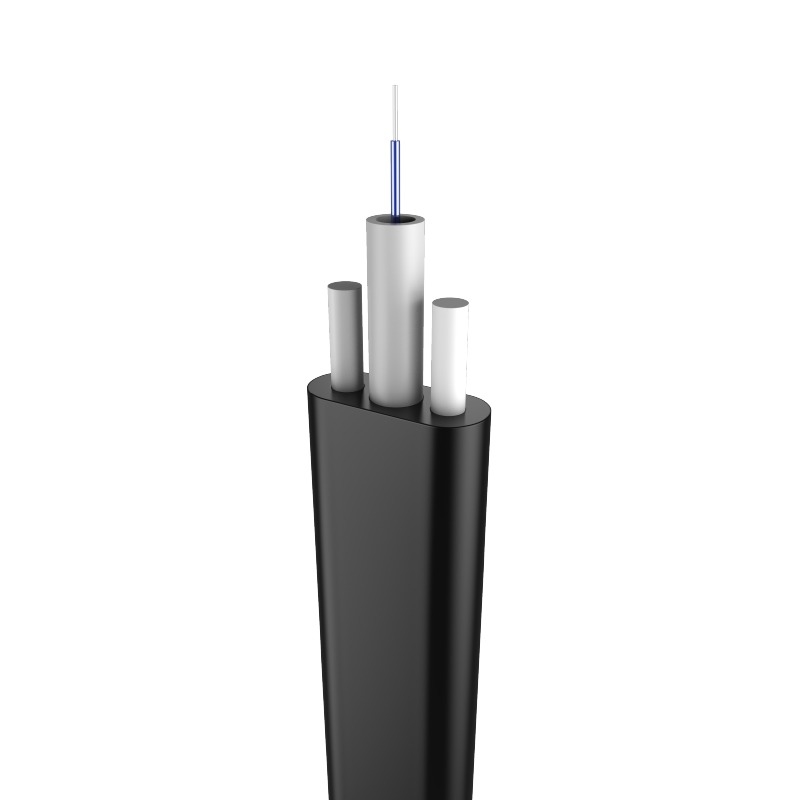

GYFXTBY fiber cable is an arc runway fiber cable, which is made of multiple (1-12 cores) 250μm colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic. A non-metallic tensile element (FRP) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, with high-density polyethylene extruded to form an HDPE sheath.

Technical Specifications

General Specifications:
Cable Type: 4 Core GYFXTBY Outdoor Flat Fiber Optic Cable
Fiber Type: SM G657A1/ SM G657A2
Application: FTTH, LAN
Recommended installation methods: Aerial
Environment: Indoor
Temperature Range: -40ºC to 70ºC

Fiber Specifications

Parameter	Unit	G652D	G657A1	G657A2
Attenuation (1310/1550nm)	dB/km	≤0.36/0.23	≤0.35/0.21	≤0.35/0.21
Dispersion (1310nm)	Ps/(nm*km)	≤18	≤18	≤18
Dispersion (1550nm)	Ps/(nm*km)	≤22	≤22	≤22
Zero dispersion wavelength	nm	1312±10	1312±10	1300-1324
PMD Maximum Individual Fiber	ps/√km	≤0.2	≤0.2	≤0.2

Standard Color Identification

No.	1	2	3	4
Color	Blue	Orange	Green	Brown

Construction Details

Strength Member: Made of Aramid yarns providing tensile strength to the cable
Outer Jacket: PE sheath extruded over the fiber for protection
Cable Sheath Marking: Includes manufacturer name, year, cable type, fiber type, length mark, and custom requirements
