GYXTC8Y GYFXTC8Y Self Supporting Aerial Fiber Optic Cable

Name: GYXTC8Y GYFXTC8Y Self Supporting Aerial Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTW-8B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYXTW-8B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYXTW-8B1.3

Type:

GYXTW-6B1.3

Strength Member:

Two Steel Wire

Core Number:

6cores

Central Strength Member:

Steel Wire

Installation:

Aerial

Business Type:

Manufacturer

Laying Methods:

Aerial

Armour:

Steel Tape

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

gyxtw outdoor fiber optic cable

gyxtw outdoor armored fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

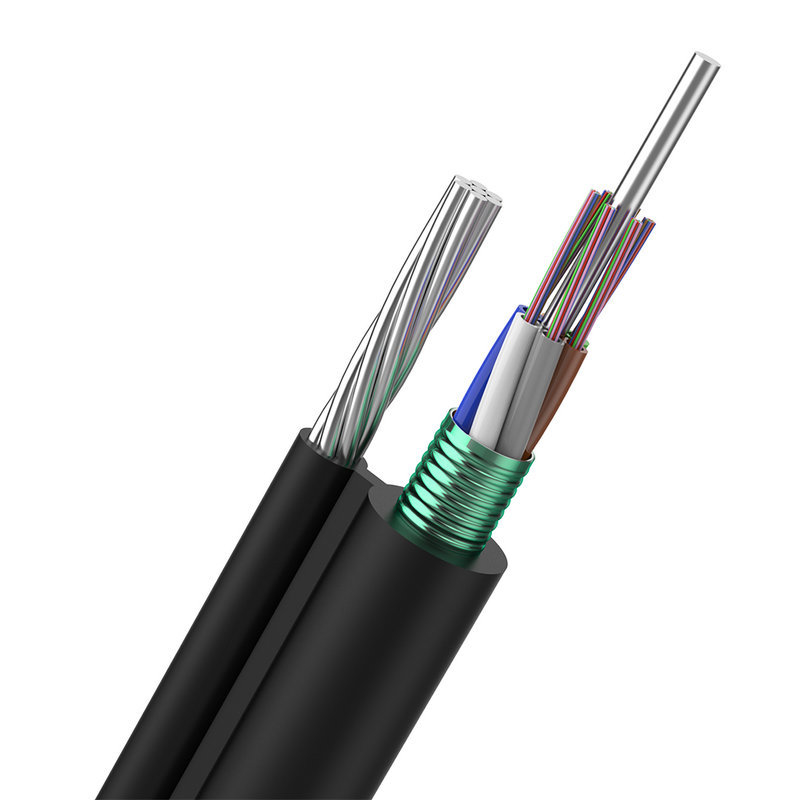

GYXTC8Y GYFXTC8Y Self Supporting Aerial Fiber Optic Cable

Product Attributes

Type	GYXTW-6B1.3
Strength Member	Two steel wire
Core Number	6cores
Central Strength Member	Steel Wire
Installation	Aerial
Business Type	Manufacturer
Laying Methods	Aerial
Armour	Steel Tape
Name	Outdoor Fiber Optic Cable

Product Description

The GYXTC8Y GYFXTC8Y Self Supporting Aerial Fiber Optic Cable is designed for aerial installations, featuring a construction that simplifies the installation process while providing robust performance.

Key features include:

Fiber counts vary across types to suit different requirements
Excellent tensile strength with short-term tension reaching 2500 N and long-term rating of 1000 N
Superior crush resistance for durable performance
Wide operating temperature range from -40°C to +70°C
Static bending minimum of 10D and placement bending radius of 20D
Water ingress defense system and integrated messenger wire
UV-resistant jacket for enhanced longevity in harsh weather conditions
Lightweight design at 118 g/m with gel cushioning for added protection

Technical Specifications

Thickness (±0.2mm)			1.6
Web	Material	PE
Web	Size (±0.5mm)	2.0*3.0
Messenger Wire	Material	Galvanized steel strand
Messenger Wire	Size (±0.1mm)	R7×1.0
Cable Diameter (±0.5mm)(W×H)		9.0*14.5	9.6*15.2
Cable Weight (±10)kg/km		150	168
Allowable Tensile Strength(N)			3000
Allowable Crush Resistance(N/100mm)			1000
Application			Aerial
Attenuation	1310nm	≤0.35dB/km
Attenuation	1550nm	≤0.21dB/km
Min. bending radius
Without Tension		10.0×Cable-φ
Under Maximum Tension		20.0×Cable-φ
Temperature range (℃)
Installation		-20~+60
Transport & Storage		-40~+70
Operation		-40~+70
