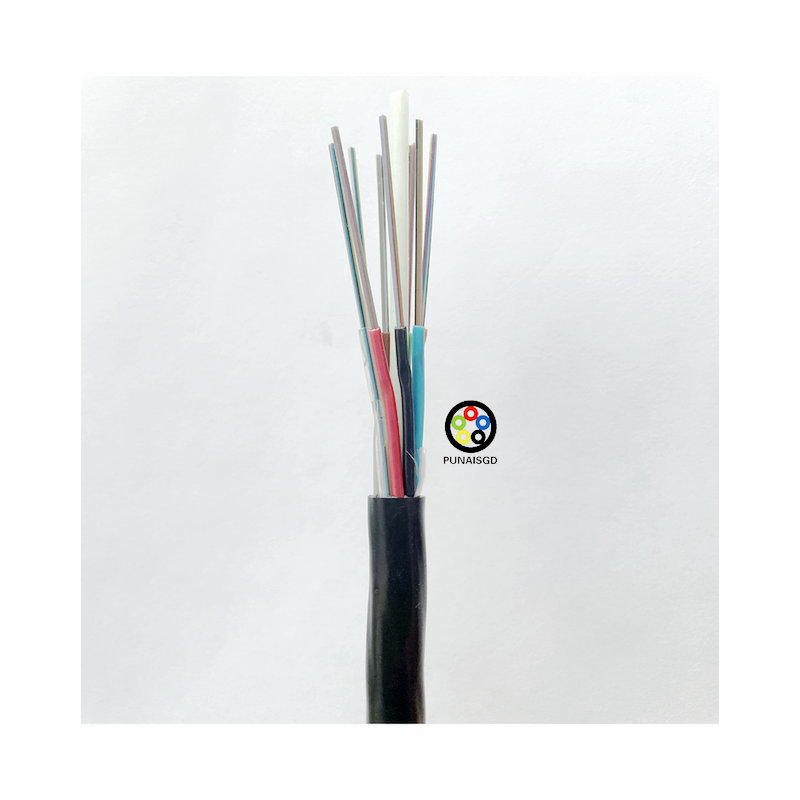

GYFTY 24 36 72 Core Single mode Fiber Optic Cable

Name: GYFTY 24 36 72 Core Single mode Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTY-72b1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYFTY-72b1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYFTY-72b1.3

Type:

GYFTY-72F

Jacket Material:

PE/LSZH

Out Jacket Color:

Black

Strength Member Material:

FRP

Service:

OEM&ODM

Standard Length:

2,000m/4000m

Number Of Fiber:

Oem Factory:

Yes

Operating Temperature:

-40°C To +70°C

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

gyfty outdoor fiber optic cable

gyfty outdoor armored fiber optic cable

72 core outdoor fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

GYFTY 24 36 72 Core Single Mode Fiber Optic Cable

Product Specifications

Type

GYFTY-72F

Jacket Material

PE/LSZH

Out Jacket Color

Black

Strength Member Material

FRP

Service

OEM&ODM

Standard Length

2,000m/4000m

Number Of Fiber

Oem Factory

Yes

Operating Temperature

-40°C to +70°C

Product Description

The GYFTY Outdoor Fiber Optic Cable is a non-metallic cable designed for power transmission systems, areas with excessive thunder activity, and environments with high electromagnetic interference. This cable is primarily used for aerial or duct applications.

The cable features FRP (Fiber Reinforced Plastic) as a central non-metallic strength member, making it ideal for high-voltage areas and long-distance communications. The design includes e-glass for enhanced performance.

Key Characteristics

Low dispersion and attenuation for superior signal quality
Precisely controlled fiber excess length and distinct stranding process for excellent mechanical and environmental properties
Superior anti-electromagnetic interference capability
Protective filler safeguards loose tube fibers

Applications

Outdoor distribution networks
Trunk power transmission systems
Access networks and local networks in high electromagnetic interference environments

Optical Characteristics

Parameter	G652	50/125μm	62.5/125μm
Attenuation (+20℃)	@1310 nm ≤0.36dB/km @1550 nm ≤0.22dB/km	@850 nm ≤3.0dB/km @1300 nm ≤1.0dB/km	@850 nm ≤3.3dB/km @1300 nm ≤1.0dB/km
Bandwidth (Class A)		@850 nm ≥500 MHzkm @1300 nm ≥1000 MHzkm	@850 nm ≥200 MHzkm @1300 nm ≥600 MHzkm
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable cut-off wavelength	≤1260 nm

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of Tubes + Fillers	Allowable Tensile Load (N)	Allowable Crush Resistance (N/100mm)
2~36	10.2	85	6	6	Short Term: 1500 Long Term: 600	Short Term: 1000 Long Term: 300
38~72	11.1	100	12	6	Short Term: 1500 Long Term: 600	Short Term: 1000 Long Term: 300
74~96	12.6	130	12	8	Short Term: 1500 Long Term: 600	Short Term: 1000 Long Term: 300
98~120	14.1	162	12	10	Short Term: 1500 Long Term: 600	Short Term: 1000 Long Term: 300
122~144	15.9	204	12	12	Short Term: 1800 Long Term: 600	Short Term: 1000 Long Term: 300
146~216	15.9	205	12	18 (2 layers)	Short Term: 2200 Long Term: 600	Short Term: 1000 Long Term: 300
>144	Available upon customer request
