ADSS Outdoor Optical Fiber Cable All Dielectric Self-Supporting Optical Cable

Name: ADSS Outdoor Optical Fiber Cable All Dielectric Self-Supporting Optical Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-72B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	ADSS-72B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

ADSS-72B1.3

Type:

ADSS-72B1.3-100m

Model No:

All Dielectric Cable

Strength Member:

Aramid Yarn

Cable Model:

Single Jacket 100m Span

Package:

Wooden Drum/Customized

Cable Weight:

200 Kg/km

Installation Method:

Aerial

Life Expectancy:

30 Years

Fiber Type:

Single-mode G.652D

Outer Diameter:

10.5mm

Name:

ADSS Fiber Optic Cable

Highlight:

High Light

Highlight:

outdoor adss fiber optic cable

outdoor adss optic fiber cable

all dielectric adss fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

100000

Product Description

ADSS Outdoor Optical Fiber Cable All Dielectric Self-Supporting Optical Cable

Product Specifications

Type

ADSS-72B1.3-100m

Model No

All Dielectric Cable

Strength Member

Aramid Yarn

Cable Model

single jacket 100m Span

Package

Wooden Drum/Customized

Cable Weight

200 kg/km

Installation Method

Aerial

Life Expectancy

30 Years

Fiber Type

Single-mode G.652D

Outer Diameter

10.5mm

Product Description

All Dielectric Self-Supporting Fiber Optic Cable ADSS is loose tube stranded. 200um or 250um Bare Fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Applications

Long distance telecom, LAN in high voltage area or access to telecom network

For power transmission system, much thunder areas and high electro-magnetic interference

Key Features

Non metallic structure provides good insulation, excellent lightning resistance

Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties

Anti-electromagnetism ability

Use high intensity aramid yarn as anti-pulling component, strong, light and small cable diameter, suitable for different climatic situations and installation spans

Special AT (Anti-Track) outer sheath protection, strong anti-electro-corrosion ability

Technical Specifications

Fiber Data

Fiber Type	Attenuation @1310nm(dB/KM)	Attenuation @1550nm(dB/KM)	1310nm MFD (Mode Field Diameter)	Cable Cut-off Wavelength λcc(nm)
G652D	≤0.36	≤0.22	9.2±0.4	≤1260
G657A1	≤0.36	≤0.22	9.2±0.4	≤1260
G657A2	≤0.36	≤0.22	9.2±0.4	≤1260
G655	≤0.4	≤0.23	(8.0-11)±0.7	≤1450

Technical Parameters

Fiber Count	Cable Diameter(mm) ±0.5	Cable Weight(kg/km)	100m Span Tensile Strength (N)	Crush Resistance (N/100mm)	Bending Radius(mm)
2-12	9.8	80	1000	300	10D
24	9.8	80	1000	300	10D
36	9.8	80	1000	300	10D
48	9.8	80	1000	300	10D
72	10	80	1000	300	10D
96	11.4	100	1000	300	10D
144	14.2	150	1000	300	10D

Operating Temperature

Temperature Range	Transportation	Installation	Operation
	-40℃~+70℃	-5℃~+45℃	-40℃~+70℃

Packing and Marking

Fiber cables are coiled on bakelite, wooden, or ironwood drums. During transportation, the right tools should be used to avoid damaging the package and to handle them with ease. Cables should be protected from moisture, kept away from high temperatures and fire sparks, protected from over-bending and crushing, and protected from mechanical stress and damage.

It is not allowed to have two lengths of cable in one drum, and both ends should be sealed. The two ends should be packed inside the drum, and a reserve length of cable not less than 3 meters should be provided.

The color of cable markings is white. The printing shall be carried out at intervals of 1 meter on the outer sheath of the cable. The legend for the outer sheath marking can be changed according to the user's requests.

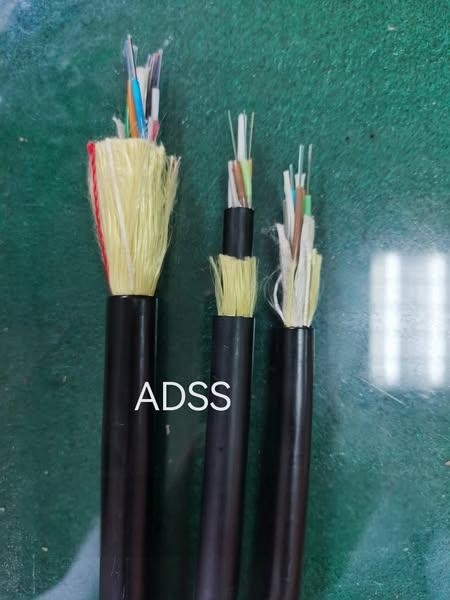

Product Images

Factory View
