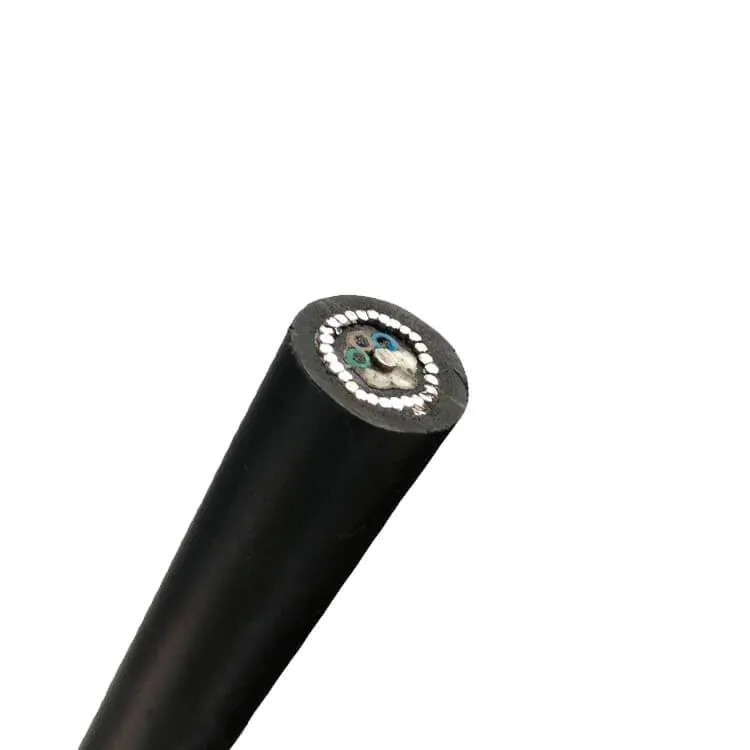

Underwater Fiber Cable 48 Core 96 Core Manufacturer
Product Specifications
| Attribute |
Value |
| Type |
Outdoor Fiber Optic Cable |
| Product name |
GYTA33-96b1.3 Cable |
| Armored |
Steel wires around armored |
| Application |
Directly buried and underwater |
| Outer Jacket Material |
PE(Black)/HDPE |
| Armor Layer |
Aluminum Tape |
| Package |
Wooden Drum |
| Length |
1 km, 2km, 3km per drum or customized length |
Product Description
Submarine optical cables are underwater fiber cables designed for more stringent environmental conditions than standard underwater cables. These cables and their components are engineered for a service life exceeding 25 years.
The underwater fiber optic cable features steel wire armor (SWA) and a sheath designed specifically for the hydrogeological conditions of the installation environment.
Applications
Underwater installations
Climbing applications
Direct burial
Key Features
Steel wire armoring (SWA) for enhanced tensile and impact resistance
Double PE sheath for superior moisture resistance
Steel central strength member
Excellent hydrolysis resistance and high strength
Water-blocking tape and materials
Superior mechanical properties and temperature characteristics
Loose tube filled with special compound for fiber protection
Outstanding crush resistance and flexibility
Technical Specifications
| Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fibers per Tube |
Max No. of Tubes |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
| 2~30 |
13.2 |
162 |
6 |
5 |
3000 (Short Term)
1000 (Long Term) |
3000 (Short Term)
1000 (Long Term) |
| 32~48 |
13.8 |
175 |
8 |
6 |
3000 (Short Term)
1000 (Long Term) |
3000 (Short Term)
1000 (Long Term) |
| 50~72 |
14.6 |
205 |
12 |
6 |
3000 (Short Term)
1000 (Long Term) |
3000 (Short Term)
1000 (Long Term) |
| 74~96 |
16 |
230 |
12 |
8 |
3000 (Short Term)
1000 (Long Term) |
3000 (Short Term)
1000 (Long Term) |
| 98~144 |
17.6 |
285 |
12 |
12 |
3000 (Short Term)
1000 (Long Term) |
3000 (Short Term)
1000 (Long Term) |
| >144 |
Available upon customer's request |
Notes:
1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material (type GYTZS).
2. Cables with longitudinal color strip on outer sheath available upon request.
3. Custom cable structures can be designed and manufactured to customer specifications.
Optical Characteristics
| Fiber type |
G.652D(9/125) |
| Loose tube |
PBT Loose Tube |
| Attenuation @1310nm |
≤ 0.36 dB/km |
| Attenuation @1550nm |
≤ 0.22 dB/km |
| Temperature range |
Transport/Operating -40°C to +70°C |
Additional Features
Steel wire armor provides high tension and crush resistance
Special gel in tubes offers critical fiber protection
Steel central strength member for durability
PE jacket with optional UV protection
Performs in extreme temperatures with anti-aging properties
Suitable for river or submarine applications
Cable Structure
1. Fiber
2. Loose Tube
3. Armoured steel wires
4. PE sheath
5. Steel tape
6. Metal strength member
