Outdoor Fiber Optic Cable
>
OPTICAL FIBER CABLE (GYTA33) GEL-FILLED, DOUBLE JACKET, STEEL WIRE ARMORED

OPTICAL FIBER CABLE (GYTA33) GEL-FILLED, DOUBLE JACKET, STEEL WIRE ARMORED

Product Details:
Place of Origin: Guangdong, China
Brand Name: PUNAISGD
Certification: CE/ROHS/ISO9001
Model Number: GYTA33-36b1.3
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
PUNAISGD
Certification:
CE/ROHS/ISO9001
Model Number:
GYTA33-36b1.3
Type:
Outdoor Fiber Optic Cable
Product Name:
GYTA33-36b1.3 Cable
Armored:
Steel Wires Around Armored
Application:
Directly Buired And Underwater
Outer Jacket Material:
PE(Black)
Armor Layer:
Aluminum Tape
Package:
Wooden Drum
Length:
Or As Required,1KM OR 2KM OR 500M,1 Km 2km 3km Per Drum,1km,2km Or Customized Length
Name:
Outdoor Fiber Optic Cable
Highlight:

High Light

Highlight:

gyta33 outdoor fiber optic cable

,

gyta33 outdoor armored fiber optic cable

,

armored outdoor fiber optic cable

Trading Information
Minimum Order Quantity:
1km
Price:
negociate
Packaging Details:
wooden drum
Delivery Time:
7days
Payment Terms:
T/T,Western Union
Supply Ability:
1000000
Product Description
GYTA33 Gel-Filled Double Jacket Steel Wire Armored Optical Fiber Cable
Product Overview

The GYTA33 cable features a metal reinforcing member at its core with loose tubes stranded with waterproof filling compound. The inner jacket is aluminum-polyethylene, wrapped with round fine steel wires, and finished with a polyethylene outer sheath for superior UV resistance.

Key Features
  • Full-section water-blocking structure ensures excellent water-blocking and moisture-proof performance
  • Loose tubes filled with special gel for optimal fiber protection
  • Phosphated steel wire central reinforcement member provides high modulus and corrosion resistance
  • Double-sided film-coated aluminum tape and steel wire armoring for mechanical strength
  • 30+ year service life with reliable performance in direct burial and underwater applications
Technical Specifications
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fibers per Tube Max Tubes + Fillers Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm)
2-30 13.2 162 6 5 3000 (Short Term)
1000 (Long Term)
3000 (Short Term)
1000 (Long Term)
32-48 13.8 175 8 6 3000 (Short Term)
1000 (Long Term)
3000 (Short Term)
1000 (Long Term)
50-72 14.6 205 12 6 3000 (Short Term)
1000 (Long Term)
3000 (Short Term)
1000 (Long Term)
74-96 16 230 12 8 3000 (Short Term)
1000 (Long Term)
3000 (Short Term)
1000 (Long Term)
98-144 17.6 285 12 12 3000 (Short Term)
1000 (Long Term)
3000 (Short Term)
1000 (Long Term)
>144 Available upon customer's request
Optical Characteristics
Fiber type G.652D(9/125)
Loose tube PBT Loose Tube
Attenuation @1310nm ≤ 0.36 dB/km
Attenuation @1550nm ≤ 0.22 dB/km
Temperature range Transport/Operating -40°C to +70°C
Product Attributes
Type Outdoor Fiber Optic Cable
Product name GYTA33-36b1.3 Cable
Armored Steel wires around armored
Application Directly buried and underwater
Outer Jacket Material PE (Black)
Armor Layer Aluminum Tape
Package Wooden Drum
Length 1KM, 2KM, 500M or customized length
Note: For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material (type GYTZS). Custom structures and color strips available upon request.

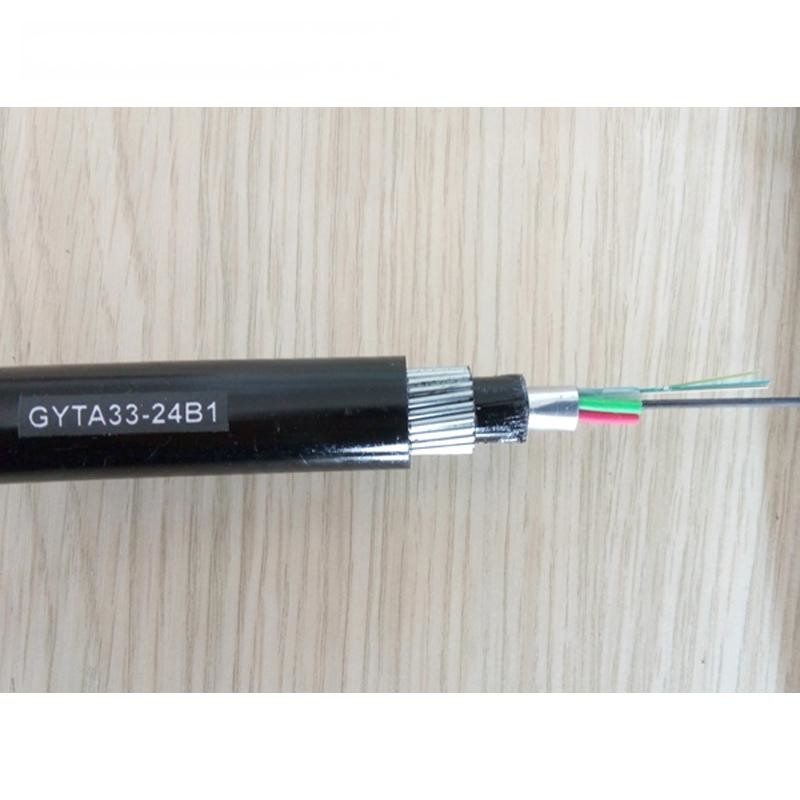

Cable Structure
  1. Fiber
  2. Loose Tube
  3. Armoured steel wires
  4. PE sheath
  5. Steel tape
  6. Metal strength member
OPTICAL FIBER CABLE (GYTA33) GEL-FILLED, DOUBLE JACKET, STEEL WIRE ARMORED 0 OPTICAL FIBER CABLE (GYTA33) GEL-FILLED, DOUBLE JACKET, STEEL WIRE ARMORED 1 OPTICAL FIBER CABLE (GYTA33) GEL-FILLED, DOUBLE JACKET, STEEL WIRE ARMORED 2
