Home > products >
Outdoor Fiber Optic Cable
>

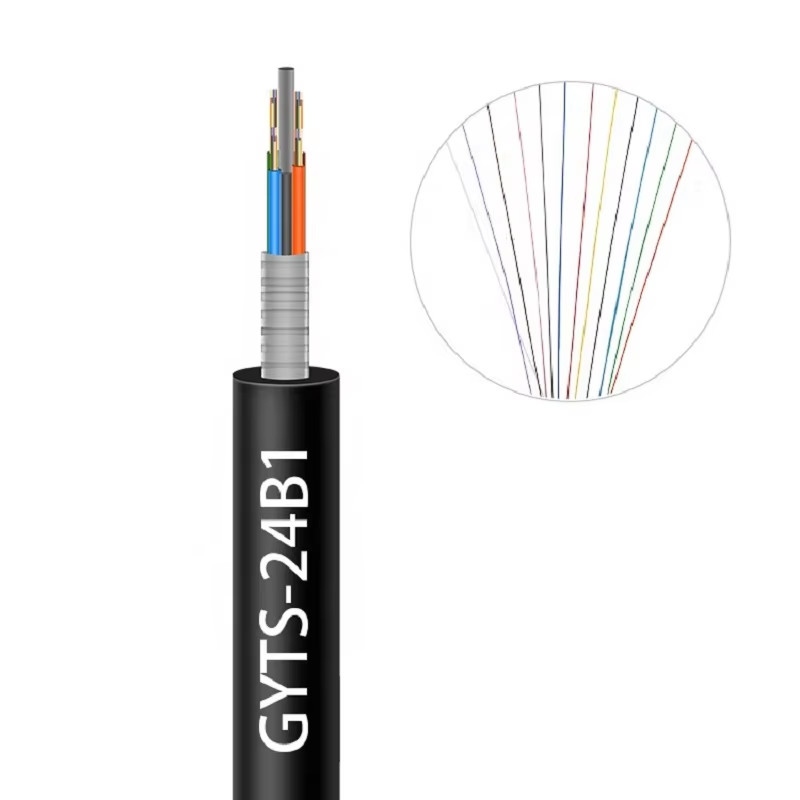

Fiber Stranded Loose Tube Outdoor Cable GYTS

Fiber Stranded Loose Tube Outdoor Cable GYTS

Product Details:
Place of Origin: Guangdong, China
Brand Name: PUNAISGD
Certification: CE/ROHS/ISO9001
Model Number: GYTS-192B1.3
Detail Information
Place of Origin:
Guangdong, China
Brand Name:
PUNAISGD
Certification:
CE/ROHS/ISO9001
Model Number:
GYTS-192B1.3
Type:
GYTS-192B1.3
Number Of Conductors:
192B1.3
Armored:
Steel Wire And Armored
Application:
Duct
Outer Jacket Material:
PE(Black)
Armor Layer:
Steel Tape
Package:
Wooden Drum
Fiber Type:
G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3
Fiber Color:
Blue,Orange,Brown,Aqua,Grey
Name:
Outdoor Fiber Optic Cable
Highlight:

High Light

Highlight:

gyts outdoor fiber optic cable

,

gyts outdoor armored fiber optic cable

,

loose tube outdoor fiber optic cable

Trading Information
Minimum Order Quantity:
1km
Price:
negociate
Packaging Details:
wooden drum
Delivery Time:
7days
Payment Terms:
T/T,Western Union
Supply Ability:
1000000
Product Description
Fiber Stranded Loose Tube Outdoor Cable GYTS
Product Specifications
Type
GYTS-192B1.3
Number of Conductors
192B1.3
Armored
Steel wire armored
Application
Duct
Outer Jacket Material
PE (Black)
Armor Layer
Steel Tape
Package
Wooden Drum
Fiber type
G652D, single mode or multi mode, 50/125, 62.5/125, OM3
Fiber color
Blue, Orange, Brown, Aqua, Grey
Product Description
Introduction

GYTS optical cable is a high-performance communication cable offering light-speed transmission. It features wide bandwidth, fast transmission speed, excellent confidentiality, resistance to electromagnetic interference, superior insulation, long lifespan, and outstanding chemical stability. Available in both single-mode and multi-mode configurations.

Key Features
  • Loose tube gel-filled construction for superior fiber protection
  • Corrugated steel tape armor for mechanical and rodent protection
  • UV and moisture-resistant PE sheath
  • Single steel wire central reinforced core for strength and stability
  • Excellent resistance to stretching, abrasion, impact, flattening, bending (up to 90°), and twisting
Applications

Ideal for backbones and access networks. Designed for installation in ducts and underground conduits.

Fiber Stranded Loose Tube Outdoor Cable GYTS 0
Technical Specifications
Fiber count Structure Fibers per tube Loose tube diameter (mm) CSM diameter/pad diameter (mm) Nominal Thickness of outer jacket (mm) Cable diameter/Height (mm) Cable weight (kg/km)
41+541.8±0.11.4/1.41.48.5±0.375
61+561.85±0.11.4/1.41.48.5±0.375
81+581.9±0.11.4/1.41.48.5±0.375
121+561.9±0.11.4/1.41.48.5±0.375
241+561.9±0.11.4/1.41.48.5±0.375
361+6121.95±0.11.5/1.51.68.8±0.385
481+5121.95±0.11.5/1.51.69.3±0.390
601+5121.95±0.11.6/1.61.69.3±0.390
721+6121.95±0.12.0/2.01.69.6±0.395
961+8121.95±0.11.4/3.21.611.5±0.3120
1441+12121.95±0.12.0/5.71.814.2±0.3185
2161+6+12121.95±0.12.0/2.01.814.5±0.3200
2881+9+15121.95±0.12.0/3.71.816.2±0.3240
Fiber Stranded Loose Tube Outdoor Cable GYTS 1 Fiber Stranded Loose Tube Outdoor Cable GYTS 2
Frequently Asked Questions
Why choose us?

We are a manufacturer located in Guangzhou, China, operating since 2011. Our factory employs 11-50 people and primarily serves the domestic market.

How do we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment.

Can you ship to my country?

Yes, we can ship internationally. If you don't have your own shipping forwarder, we can assist with logistics.

Do you offer OEM services?

We accept all OEM orders. Contact us with your design requirements and we will provide competitive pricing and samples.

What services do we provide?

Delivery Terms: FOB, CIF, EXW
Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese

Product Images
Fiber Stranded Loose Tube Outdoor Cable GYTS 3 Fiber Stranded Loose Tube Outdoor Cable GYTS 4 Fiber Stranded Loose Tube Outdoor Cable GYTS 5 Fiber Stranded Loose Tube Outdoor Cable GYTS 6 Fiber Stranded Loose Tube Outdoor Cable GYTS 7 Fiber Stranded Loose Tube Outdoor Cable GYTS 8 Fiber Stranded Loose Tube Outdoor Cable GYTS 9 Fiber Stranded Loose Tube Outdoor Cable GYTS 10
