Outdoor Single Mode Fiber Optic Cable GYTA53 GYTA GYXTW GYFTY GYTS GYXTC8S

Name: Outdoor Single Mode Fiber Optic Cable GYTA53 GYTA GYXTW GYFTY GYTS GYXTC8S
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTS-144B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYTS-144B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYTS-144B1.3

Type:

GYTS-144B1.3

Number Of Conductors:

144B1.3

Armored:

Steel Wire And Armored

Application:

Duct

Outer Jacket Material:

PE(Black)

Armor Layer:

Steel Tape

Package:

Wooden Drum

Fiber Type:

G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3

Fiber Color:

Blue,Orange,Brown,Aqua,Grey

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

Outdoor Single Mode Fiber Optic Cable

GYTA Fiber Optic Cable

GYTA53 Fiber Optic Cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000

Product Description

Outdoor Fiber Optic Cable Single Mode Fiber Optic Cable GYTA53/GYTA/GYXTW/GYFTY/GYTS/GYXTC8S Communication Cable

Product Specifications

Attribute	Value
Type	GYTS-144B1.3
Number of Conductors	144B1.3
Armored	Steel wire and armored
Application	Duct
Outer Jacket Material	PE (Black)
Armor Layer	Steel Tape
Package	Wooden Drum
Fiber type	G652D, single mode or multi mode, 50/125, 62.5/125, OM3
Fiber color	Blue, Orange, Brown, Aqua, Grey

Product Description

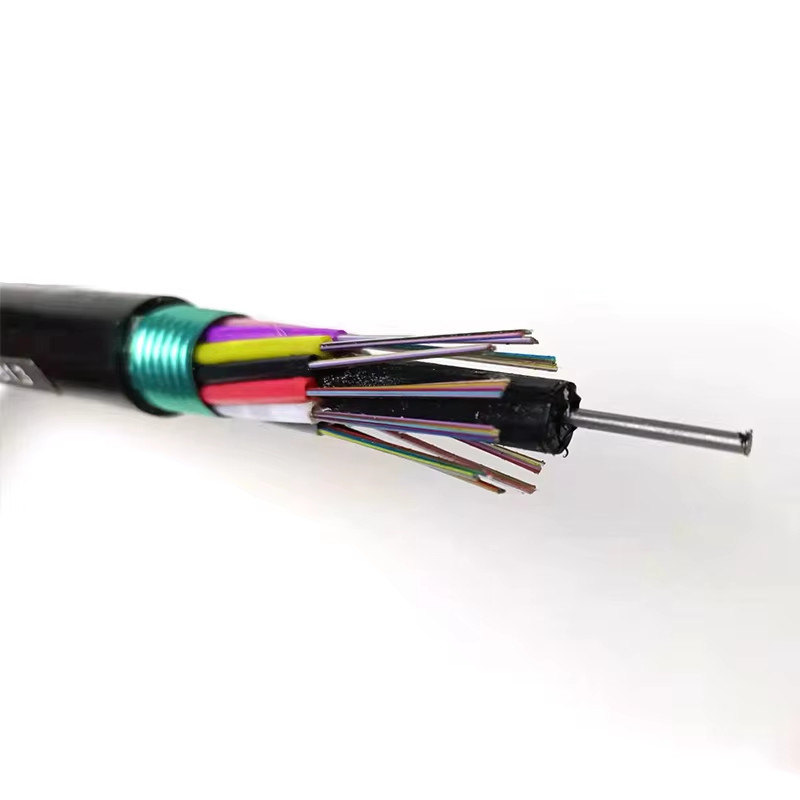

The GYTA optical cable structure consists of 250µm optical fibers placed into loose tubes made of high modulus material and filled with waterproof compound. The cable core features a central metallic strength member, with tubes and fillers stranded around it to form a compact, round core protected by waterproofing compound. The cable is completed with a longitudinally wrapped plastic-coated aluminum tape (APL) and extruded polyethylene sheath.

Applications

Aerial self-supporting installations
Outdoor wiring applications

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	8.5±0.3	75
6	1+5	6	1.85±0.1	1.4/1.4	1.4	8.5±0.3	75
8	1+5	8	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
12	1+5	6	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
24	1+5	6	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
36	1+6	12	1.95±0.1	1.5/1.5	1.6	8.8±0.3	85
48	1+5	12	1.95±0.1	1.5/1.5	1.6	9.3±0.3	90
60	1+5	12	1.95±0.1	1.6/1.6	1.6	9.3±0.3	90
72	1+6	12	1.95±0.1	2.0/2.0	1.6	9.6±0.3	95
96	1+8	12	1.95±0.1	1.4/3.2	1.6	11.5±0.3	120
144	1+12	12	1.95±0.1	2.0/5.7	1.8	14.2±0.3	185
216	1+6+12	12	1.95±0.1	2.0/2.0	1.8	14.5±0.3	200
288	1+9+15	12	1.95±0.1	2.0/3.7	1.8	16.2±0.3	240
