ADSS Fiber Optic Cable ASU 6CORE 120M Span Cable

Name: ADSS Fiber Optic Cable ASU 6CORE 120M Span Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: ASU-16B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	ASU-16B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

ASU-16B1.3

Type:

ASU-16B1.3

Application:

Telecom Comunication

Laying Mode:

Aerial

Filler:

Filling Compound

Jacket Material:

Sample:

Free

Installation:

Self-supporting Aerial

Central Strength:

FRP

Warranty:

25 Years

Name:

ADSS Fiber Optic Cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

100000

Product Description

ADSS Fiber Optic Cable ASU 6CORE 120M Span Cable

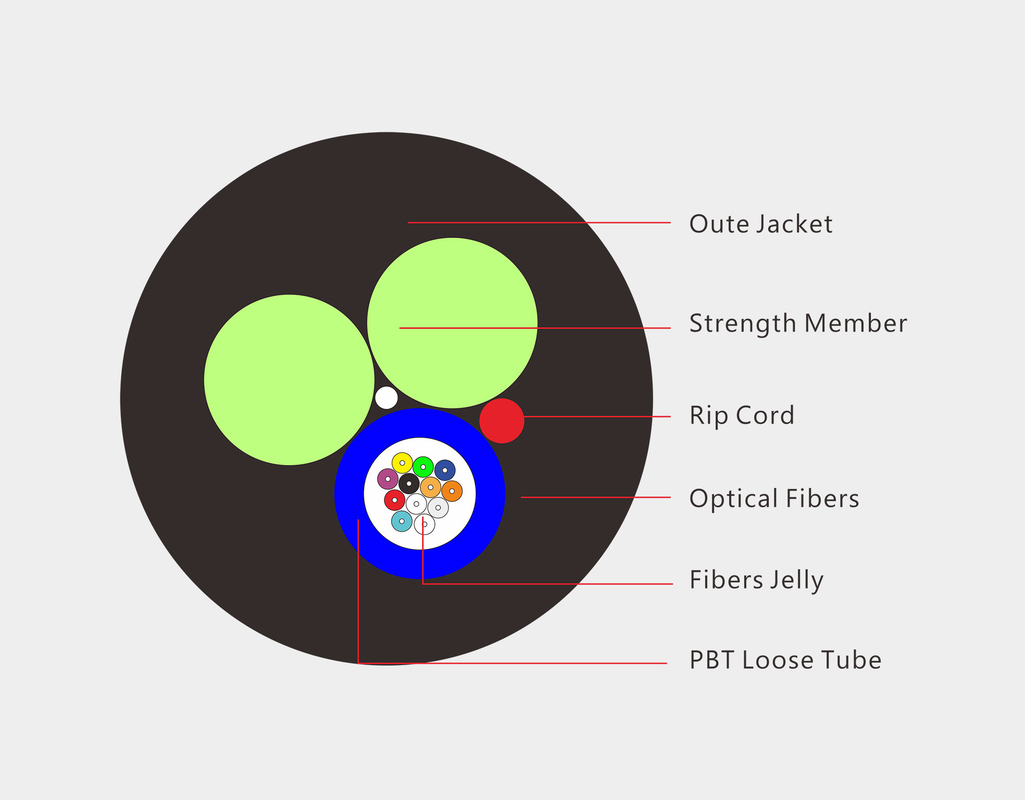

ASU optical cable is designed with high-quality materials that enhance its durability and performance in outdoor environments. The core is typically composed of multiple optical fibers, each housed within a protective buffer tube that's filled with a gel to block water ingress. These elements are surrounded by a tough outer jacket made from materials like polyethylene (PE), which provides resistance to UV light, chemicals, and physical abrasions.

Product Attributes

Attribute	Value
Type	ASU-16B1.3
Application	Telecom Communication
Laying Mode	Aerial
Filler	Filling Compound
Jacket Material	PE
Sample	Free
Installation	Self-supporting Aerial
Central Strength	FRP
Warranty	25 years

Product Specifications

ITEMS	UNITS	SPECIFICATION
Fiber Type		G652D
Attenuation	dB/km	Before Cable
Attenuation		After Cable
		1310nm ≦ 0.341550nm ≦ 0.21
		1310nm ≦ 0.351550nm ≦ 0.22
Chromatic Dispersion	ps/nm.km	1310nm ≦ 3.51550nm ≦ 181625nm ≦ 22
Attenuation Uniformity	dB/km	0.1
Point Discontinuities	dB	≤ 0.05
Zero Dispersion Slope	ps/n㎡.km	0.093
Zero Dispersion Wavelength	nm	1300~1324
PMDQ Link Design 1550	ps/km1/2	≤ 0.1
Cut-off Wavelength(λcc)	nm	≤ 1260
Attenuation vs. Bending(60mm*100turns)	dB	≤ 0.1 at 1625 nm(60mm * 100turns)
Mold Field Diameter	μm	9.2±0.4 @ 1310nm 10.4±0.5@ 1550nm
Core-Clad Concentricity	μm	≤ 0.6
Cladding Diameter	μm	125 ± 1
Cladding Non-circularity	%	≤ 1
Coating Diameter	μm	245 ± 5
Proof Test	Gpa	≥ 0.69

Optical Characteristics

Part code	ASU-120-6F
Number of Fibers	Unit	6	8	12	24
	Number of fiber in tube	6	8	12	24
	Number of loose tube	1	1	1	1
	strength member	FRP 2×2.2mm	FRP 2×2.2mm	FRP 2×2.2mm	FRP 2×2.3mm
Loose tube	Material: PBT Size: 2.2mm
Outer sheath	Material: HDPE
Cable nominal Diameter	7.2 MM ±0.2	7.2 MM ±0.2	7.2 MM ±0.2	8.0 MM ±0.2
Cable nominal weight	45 Kg/Km ±5	45 Kg/Km ±5	45 Kg/Km ±5	47 Kg/Km ±5
Max. working tension	1500 N
Max. crush resistance	1000 (Short term) / 600 (Long term)
Min. bending radius	At full load 20 x Cable OD (including poles) At no load 15 x Cable OD
Temperature range	Installation -0 → +50 Operation -10 → +70
