Lightweight ADSS Fiber Optic Cable Single Jacket All Dielectric Self Supporting Cable

Name: Lightweight ADSS Fiber Optic Cable Single Jacket All Dielectric Self Supporting Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-60B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	ADSS-60B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

ADSS-60B1.3

Name:

ADSS Fiber Optic Cable

Type:

ADSS-60B1.3

Model No:

All Dielectric Cable

Strength Member:

Aramid Yarn

Cable Model:

Double Jacket/single Jacket

Package:

Wooden Drum/Customized

Cable Weight:

200 Kg/km

Installation Method:

Aerial

Life Expectancy:

30 Years

Fiber Type:

Single-mode G.652D

Outer Diameter:

10.5mm

Highlight:

High Light

Highlight:

Lightweight ADSS Fiber Optic Cable

ADSS Fiber Optic Cable Single Jacket

All Dielectric Self Supporting Cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

100000

Product Description

Lightweight ADSS Fiber Optic Cable Single Jacket All Dielectric Self Supporting Cable

Product Specifications

Attribute	Value
Name	ADSS Fiber Optic Cable
Type	ADSS-60B1.3
Model No	All Dielectric Cable
Strength Member	Aramid Yarn
Cable Model	Double Jacket/Single Jacket
Package	Wooden Drum/Customized
Cable Weight	200 kg/km
Installation Method	Aerial
Life Expectancy	30 Years
Fiber Type	Single-mode G.652D
Outer Diameter	10.5mm

Product Description

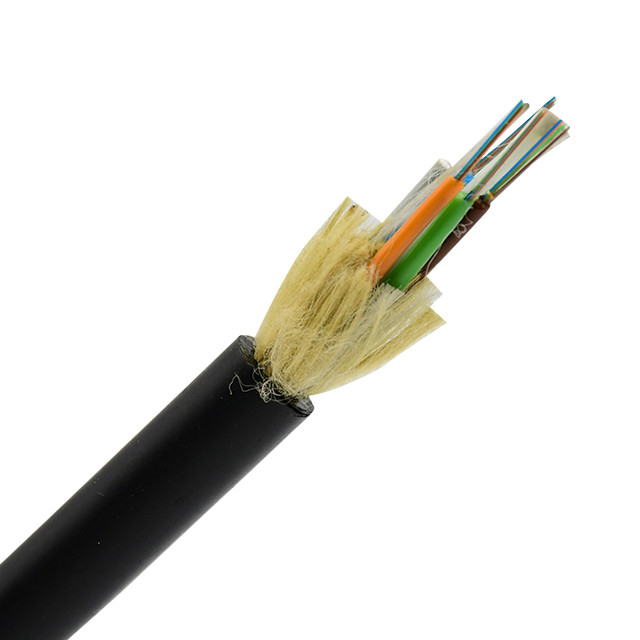

The ADSS (All Dielectric Self-Supporting) fiber optic cable features a single-sheath stranded structure with 250um optical fibers placed into PBT loose tubes filled with waterproof compound. The cable core centers around a non-metallic FRP (Fiber-Reinforced Plastic) reinforcement, with loose tubes twisted around this core. Water-blocking filler and waterproof tape provide additional protection, followed by PE sheath layers and aramid yarn strength members for durability.

Key Features

Installation possible without power interruption
High resistance to temperature extremes and aging for extended lifespan
Lightweight design reduces ice/wind loads on supporting structures
Supports spans exceeding 1000 meters
Excellent tensile strength and temperature performance
High fiber core count with power line compatibility
Aramid strength members prevent wrinkles and punctures
Engineered for 30+ years of service life

Cable Construction Specifications

Fiber Count	Structure	Fibers per Tube	Loose Tube Diameter (mm)	CSM/Pad Diameter (mm)	Outer Jacket Thickness (mm)	Cable Diameter (mm)	Cable Weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.3	80
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
24	1+6	12	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
