Home > products >

Black ADSS Fiber Optic Cable Mini ASU 7.0mm Aerial Fiber Optic Cable

Name: Black ADSS Fiber Optic Cable Mini ASU 7.0mm Aerial Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: ASU-12B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	ASU-12B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

ASU-12B1.3

Name:

ADSS Fiber Optic Cable

Type:

ASU-12B1.3

Application:

Telecom Comunication

Strength Member:

Frp *2pcs

Jacket Color:

Black Color/Others

Packing:

Wooden Roller

Number Of Conductors:

4-12

Fiber Type:

G652D

Outer Sheath:

PE/AT,AT/PE,PE

Span:

80 120

Highlight:

High Light

Highlight:

Black ADSS Fiber Optic Cable

7.0mm Aerial Fiber Optic Cable

ADSS Aerial Fiber Optic Cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

wooden drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

100000

Product Description

Black ADSS Fiber Optic Cable Mini ASU 7.0mm Aerial Fiber Optic Cable

Product Attributes

Attribute	Value
Name	ADSS Fiber Optic Cable
Type	ASU-12B1.3
Application	Telecom Communication
Strength member	FRP *2pcs
Jacket color	Black Color/Others
Packing	Wooden Roller
Number of conductors	4-12
Fiber type	G652D
Outer sheath	PE/AT,AT/PE,PE
Span	80 120

Product Description

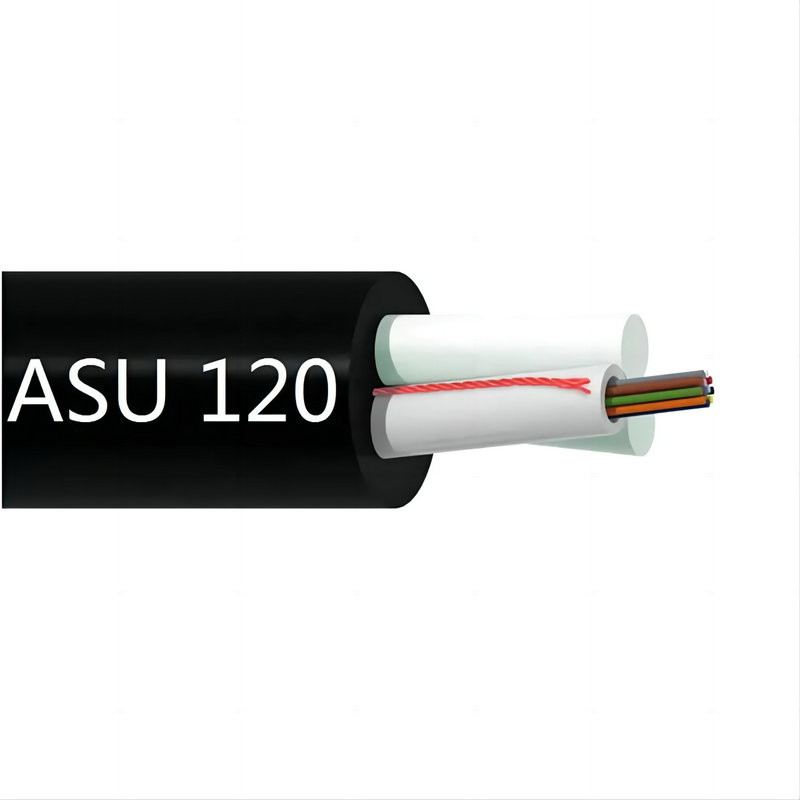

ADSS Fiber Optic Cable Mini ASU 7.0mm Aerial with 2.0 FRP Strength Member for 120M Span Communication Cables. Features 250μm colored fiber in PBT loose tube with two FRP strength members and PE outer sheath.

Key Features

Compact size and lightweight design
Dual FRP strength members for superior tensile performance
Available in gel-filled or gel-free options with excellent waterproofing
Cost-effective solution with high fiber capacity
Suitable for short span aerial and duct installation

Fiber Count: 1-12 fibers
Span Distance: 80/100/120 meters
Standard Coil Lengths: 1km / 2km / 3km / 4km

Product Specifications

Optical Characteristics

Cable Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength long/short term (N)	Crush Resistance long/short term (N)	Bending Radius Static/Dynamic (mm)
ASU	2-12	7.0	60	600/1500	300/1000	10D/20D
GYXTW	14-24	8.0	72	600/1500	300/1000	10D/20D

Item	Unit	Specification
Fiber Type		G652D
Mode field Diameter	1310nm μm	9.2±0.4
	1550nm μm	10.4±0.8
Cladding diameter	μm	125.0±0.1
Cladding non-circularity	%	≤1.0
Core/cladding concentricity error	μm	≤0.5
Coating diameter	μm	245±7
Coating/cladding concentricity error	μm	≤12
Cable cut-off wavelength	μm	≤1260
Attenuation Coefficient	1310nm db/km	≤0.36
	1550nm db/km	≤0.22
Proof stress level	kpsi	≥100

Note: All parameters meet standard ITU-T G.652 specifications

Our Manufacturing Facility

Frequently Asked Questions

Why choose us?

We are a manufacturer based in Guangzhou, China, operating since 2011. Our products are sold to domestic markets with a workforce of 11-50 professionals dedicated to quality production.

How do we guarantee quality?

We implement strict quality control measures including pre-production samples and final inspection before shipment to ensure product excellence.

Can you ship to my country?

Yes, we can arrange shipping worldwide. If you don't have your own forwarder, we can assist with logistics solutions.

Do you offer OEM services?

We accept all OEM orders. Contact us with your design requirements and we'll provide competitive pricing and samples.

What services do you provide?

We offer flexible delivery terms (FOB, CIF, EXW), accept multiple currencies (USD, EUR, JPY, etc.), and provide various payment options (T/T, L/C, PayPal, etc.). Our team communicates in English and Chinese.
