Home > products > Outdoor Fiber Optic Patch Cord > 2m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm

2m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm

Product Details

Place of Origin: China

Brand Name: ODM/OEM

Certification: ISO9001-2015, RoHS, CE

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Packaging Details: Carton Box

Get Best Price
Highlight:

outdoor fiber optic patch cord single mode

,

2m sc apc fiber cable

,

2m outdoor fiber optic patch cord

Model Number:
H-Connector Assemblies
Fiber Mode:
Single Mode Multi Mode
Cable Type:
Outdoor Armored Cable
Cable Diameter:
3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm
Storage Temperature:
-45℃~+85℃
Use:
FTTA
Product Name:
Waterproof Patch Cord
Axial Cable Retention:
445N(100lbs)
Application:
Telecommunication & Networks
Model Number:
H-Connector Assemblies
Fiber Mode:
Single Mode Multi Mode
Cable Type:
Outdoor Armored Cable
Cable Diameter:
3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm
Storage Temperature:
-45℃~+85℃
Use:
FTTA
Product Name:
Waterproof Patch Cord
Axial Cable Retention:
445N(100lbs)
Application:
Telecommunication & Networks

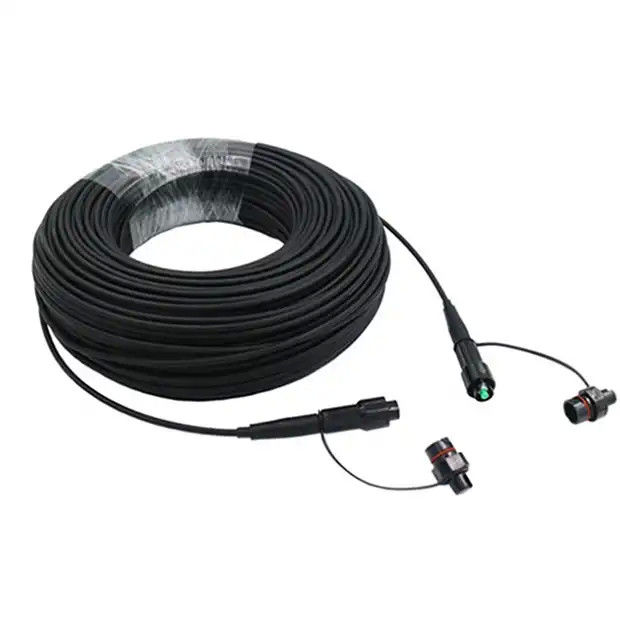

2m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm

2m Mini SC Waterproof Patch Cable Single Mode Simplex Outdoor SC APC Fiber Optic Patch Cord 5.0mm FTTA Jumper

Product Description:

MINI-SC waterproof reinforced connector is a small high waterproof SC single core waterproof connector. Built-in SC connector core, to better reduce the size of the waterproof connector. It is made of special plastic shell (which is resistant to high and low temperature, acid and alkali corrosion resistance, anti-UV) and auxiliary waterproof rubber pad, its sealing waterproof performance up to IP67 level.
The unique screw mount design is compatible with the fiber optic waterproof ports of equipment ports. Suitable for 3.0-5.0mm single-core round cable or FTTH fiber access cable.
2m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm 02m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm 12m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm 22m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm 3

Features:

  1. IP-68 water and dust protection
  2. Factory teminated for high perfomance
  3. -40*C to +85C operating temperature
  4. 445 N (100 lbs) cable retention
  5. Accepts 4.8mm to 7.0mm cable diameters
  6. Low profle in-line receptade available
  7. No insalltion tools required
  8. 100 minimum mating cycdles

Technical Parameters:

2m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm 4



2m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm 5



Mode
Single mode
Multimode
Polish
PC
APC
PC
Insertion Loss
≤0.30dB
≤0.30dB
≤0.30dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm
850/1310nm
Durability(500 Matings)
≤0.2dB
Operating Temperature
-40℃~+70℃
Storage Temperature
-45℃~+85℃
Fire Resistant
IEC 60794-2-30
Standards-Compliant
ROHS,IEC and GR-326
Fiber type
Single mode:
9/125-G652D
9/125-G655
9/125-G657A,G657A2
9/125-G657B3
Multimode:
50/125-OM2
62.5/125-OM1
50/125-OM3
50/125-OM4
50/125-OM5
Connector
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC
Cord type
Simplex ,Duplex
Cable diameter
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm, 5mm, 7mm
Cable jacket
PVC, OFNR, LSZH, HPDE, TPU
length(M)
Customized

Applications:

2m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm 62m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm 72m Mini SC Outdoor Fiber Optic Patch Cord Single Mode Simplex SC APC Fiber Cable 5.0mm 8



Customization:

Outdoor Fiber Optic Patch Cord
  • Brand Name: ODM/OEM
  • Model Number: Singlemode Multimode
  • Place of Origin: China
  • Cable Type: Outdoor Armored Cable
  • Cable Diameter: 3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm
  • Insertion Loss: ≤0.3dB
  • Packaging Details: Carton Box
  • Use: FTTA

Fiber Jumper, Outdoor Fiber Patch Cord, Outdoor Optical Patch Cord are all available for customization.
