Home > products > Hybrid Fiber Optic Cable > 3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM

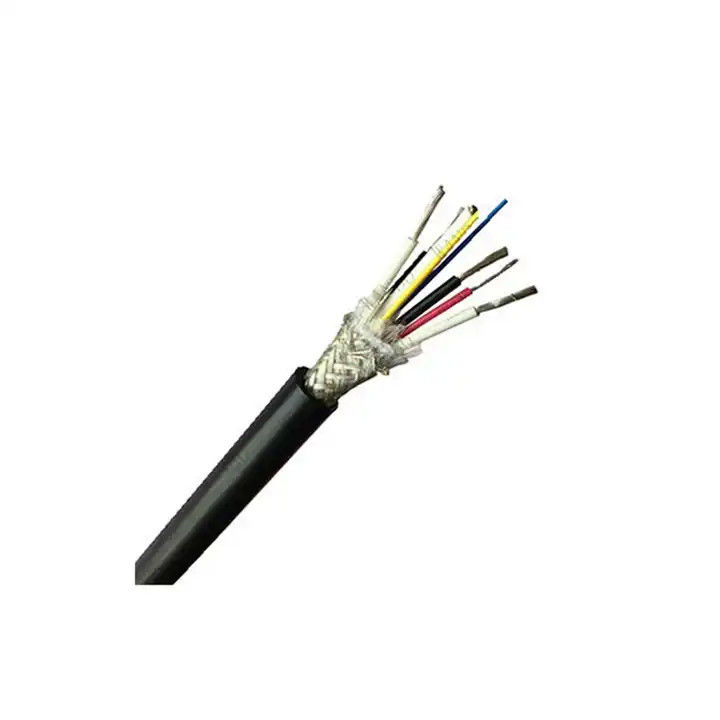

3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM

Product Details

Place of Origin: China

Brand Name: ODM/OEM

Payment & Shipping Terms

Get Best Price
Highlight:

SMPTE311 Camera Fiber Optic Cable

,

Hybrid Camera Fiber Optic Cable

,

Electrical Power Cable ODM

Certification:
CE/ROHS/ISO9001
Model Number:
Distribution Fiber Optic Cable
Product Name:
Hybrid Fiber Cable
Operating Temperature:
-50- +80℃
Fiber Count:
1-288
Cable Jacket:
PVC/LSZH
Fiber Type:
Fiber Optic Cable, 14 18 22 Awg
Cable Diameter:
Customized
Cable Type:
Fiber And Copper
Amored Material:
Aluminum Tape,Steel Tape
Application:
Telecom Comunication
Product Name:
Photoelectric Composite Cable
Allowable Tensile Strength:
1000N
Loose Tube:
PBT Material
Type::
Fiber Optic Cable, 14 18 22 Awg
Standard:
YD/T 901 / IEC 60794-3-10
OEM:
Yes
Keyword:
Outdoor Fiber Optic Cable
Insulation:
Flexible Mixture
Conductor Material:
Bare Copper
Optical Fiber Material:
PMMA & Copper Power Wires
Certification:
CE/ROHS/ISO9001
Model Number:
Distribution Fiber Optic Cable
Product Name:
Hybrid Fiber Cable
Operating Temperature:
-50- +80℃
Fiber Count:
1-288
Cable Jacket:
PVC/LSZH
Fiber Type:
Fiber Optic Cable, 14 18 22 Awg
Cable Diameter:
Customized
Cable Type:
Fiber And Copper
Amored Material:
Aluminum Tape,Steel Tape
Application:
Telecom Comunication
Product Name:
Photoelectric Composite Cable
Allowable Tensile Strength:
1000N
Loose Tube:
PBT Material
Type::
Fiber Optic Cable, 14 18 22 Awg
Standard:
YD/T 901 / IEC 60794-3-10
OEM:
Yes
Keyword:
Outdoor Fiber Optic Cable
Insulation:
Flexible Mixture
Conductor Material:
Bare Copper
Optical Fiber Material:
PMMA & Copper Power Wires
3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM

The Fine Quality 3K/93C SMPTE311 Hybrid Optical Fiber Camera Cable Electric Conductor Cable

Product Description:

Composite Fiber Optic Cables that have a number of different components laid up within the bundle. These types of cables allow for multiple transmission paths by various components, whether they be metal conductors or fibre optics, and allow the user to have a single cable, therefore reducing the overall cost and lead time for installation.



3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 0

Features:

· Has good flexibility and mechanical properties.
· Photoelectric integration, fully saving pipeline resources.
· The cable section and the cable section maintain a relatively independent structure for easy introduction, extraction and
connection during installation.Consolidate multiple power lines, telephone lines, TV lines, network lines, monitoring lines, data lines, etcsaving costs.
· Large operating temperature range.
· Large construction temperature range.
· The diameter of the cable and the bending radius are small, and the colleague-compatible optical signal transmission and power transmission can be freely installed in a small space
3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 1

Technical Parameters:



TEST REQUIREMENTS
Approved by various professional optical and communication product institution, JQ also conduct various in-house testing in its own Laboratory and Test Center. She also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products (QSICO). JQ possess the technology to keep its fiber attenuation loss within Industry Standards.
The cable is in accordance with applicable standard of cable and requirement of customer. The following test items are carried out according to corresponding reference. Routine tests of optical fiber

Mode field diameter
IEC 60793-1-45
Mode field Core/clad concentricity
IEC 60793-1-20
Cladding diameter
IEC 60793-1-20
Cladding non-circularity
IEC 60793-1-20
Attenuation coefficient
IEC 60793-1-40
Chromatic dispersion
IEC 60793-1-42
Cable cut-off wavelength
IEC 60793-1-44
Tension Loading Test

Test Standard
IEC 60794-1
Sample length
No less than 50 meters
Load
Max. installation load
Duration time
1 hour
Basic parameters:
Country of Origin
China
Product name
Photoelectric composite cable
Brand name
OUFU or OEM
Type
GYXTW-1~24B+RV
Fiber count
1-24
Fiber model
SM/MM
Strength member
Steel wire
Outer diameter
9.2-15.6mm ±0.2mm
Weight
100-320kg/km
Jacket material
PE
Electric line material
Oxygen-free copper
Electric line size
2*1.5 2*2.5 2*4.0 2*6.0



3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 2

Applications:

1. Adopted to indoor distribution.
2. As pigtail of communication equipment
3. Suitable for communication equipment servrd
4. Can be installed conveniently and perated simply

5. hybrid of fiber cable Suitable the filed where needs to transmit light single and electric single.
6. Mobile operator deploying an RRU architecture to standardize the RRU.



 3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 33K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 43K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 5

Customization:

Customize your own Hybrid Fiber Optic Cable with ODM/OEM!

  • Model Number: Singlemode Multimode
  • Place of Origin: China
  • Product Name: Hybrid Fiber Cable
  • Fiber Count: 1-288
  • Cable Type: Fiber And Copper
  • Operating Temperature: -10~ +70 ℃
  • Connector Type: Customized

Our Hybrid Fiber Optic Cable is the perfect choice for Multi Mode Fiber Cable, Hybrid Fiber Optic Cable, Fiber Optic Hybrid Cable applications!

 3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 6

Support and Services:

Hybrid Fiber Optic Cable Technical Support and Services

We provide technical support and services for Hybrid Fiber Optic Cable. Our team of experienced professionals is here to help you with installation, configuration, maintenance and repair.

  • Provide installation and commissioning support
  • Assist with configuration and maintenance
  • Provide troubleshooting services
  • Provide repair and replacement services
  • Provide training services for personnel
  • Provide technical support via phone, email or online chat
  3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 7

Company Profile:

Sboter is a professional manufacturer .It has many years experience in R&D, production and sales of fiber optic products. we provide One Stop Solution for fiber optic splicing, distribution, termination and protection products.

3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 8
3K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 93K/93C SMPTE311 Hybrid Camera Fiber Optic Cable , Electrical Power Cable ODM OEM 10
