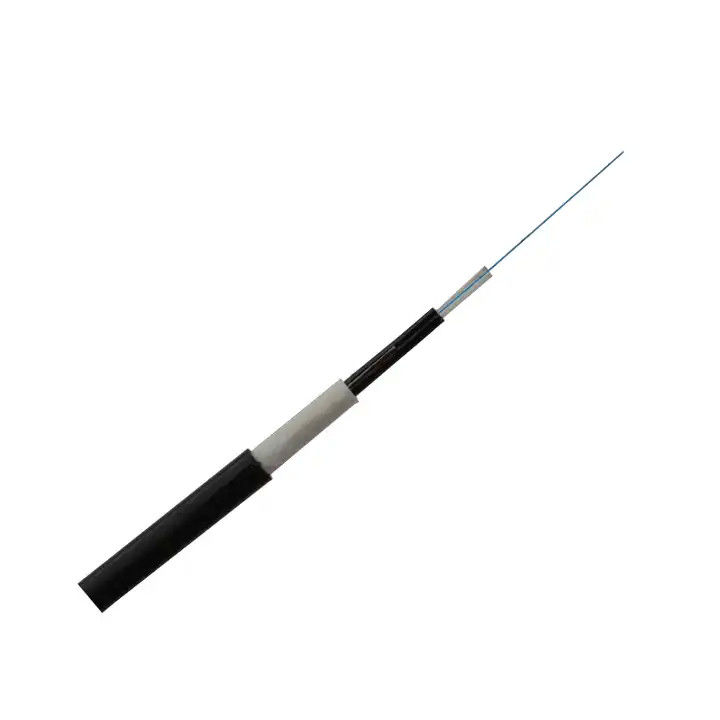

Outdoor FTTH Drop Cable G652D G657A LSZH Fiber Optic Cable Fire Retardant

Name: Outdoor FTTH Drop Cable G652D G657A LSZH Fiber Optic Cable Fire Retardant
Brand: ODM/OEM
SKU: ODM/OEM
Price: 1 USD
Availability: InStock
Rating: 4.6 (114 reviews)

Product Details

Brand Name: ODM/OEM

Payment & Shipping Terms

Minimum Order Quantity: 1000meters

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                outdoor ftth drop cable g652d, g657a lszh fiber optic cable, lszh fiber optic cable fire retardant


Place Of Origin:	Guangdong, China	Certification:	TLC, ANATEL CE/ROHS/ISO9001
Model Number:	GJYXCH	Type:	Fiber Optic Cable
Number Of Conductors:	10	Product Name:	FTTH Drop Cable
Jacket Material:	PE PVC LSZH HDPE	Color:	Black Or White,Customized
Fiber Type:	G652/G655/62.5/50/OM3/OM2	Package:	Plywood Reel/customized
Application:	Long Distance/LAN Communication/Outdoor Communication	OEM:	Support
Messenger:	1.0mm Galvanized Steel Wire	Attenuation G.652,G.657 (dB/km):	≤0.38dB/km (@1310nm), ≤0.22dB/km (@1550nm)
Zero Dispersion Slope:	≤0.090ps/(nm2.km)	Strengthener Member:	Aramid Yarn
Warranty:	10 Years

Place Of Origin:	Guangdong, China
Certification:	TLC, ANATEL CE/ROHS/ISO9001
Model Number:	GJYXCH
Type:	Fiber Optic Cable
Number Of Conductors:	10
Product Name:	FTTH Drop Cable
Jacket Material:	PE PVC LSZH HDPE
Color:	Black Or White,Customized
Fiber Type:	G652/G655/62.5/50/OM3/OM2
Package:	Plywood Reel/customized
Application:	Long Distance/LAN Communication/Outdoor Communication
OEM:	Support
Messenger:	1.0mm Galvanized Steel Wire
Attenuation G.652,G.657 (dB/km):	≤0.38dB/km (@1310nm), ≤0.22dB/km (@1550nm)
Zero Dispersion Slope:	≤0.090ps/(nm2.km)
Strengthener Member:	Aramid Yarn
Warranty:	10 Years

Outdoor FTTH Drop Cable G652D G657A LSZH Fiber Optic Cable Fire Retardant

G652d G657A LSZH Fiber Optical Cable Outdoor Ftth Drop Cable Round For Europ Network Market

Product Description:

(non-metallic strength member, flat, fire-retardant polyethylene sheath indoor cable communications) cable structure is single mode or multimode optical fiber placed in the middle of the two non-metallic reinforcement layer of flame-retardant polyethylene extruded after ethylene sheath (LSZH). GJFBZY CH (metal strengthening hanging wire, flat, flame retardant PVC sheathed "8" shape with a self-supporting outdoor optical cable communication) cable structure is GJFBZY fiber optic cable to increase the structure of metal hanging wire. The cable structure is compact and has excellent high temperature performance, strengthen the use of high-carbon steel wire hanging line, with superior tensile strength, fiber reinforcements with excellent bending properties, with low smoke zero halogen sheath material with excellent flame retardance . Products for users to access network use

Outdoor FTTH Drop Cable G652D G657A LSZH Fiber Optic Cable Fire Retardant 0

Features:

Compact and light weight, low purchasing and construction cost

Easy connect without splicing, fast and convenient

Excellent tensile and crush performance, the span distance for self-support type can be up to 50m

Non metallic strength member is Kevlar fiber reinforced plastic know as K-FRP

Soft and flexible, good bending performance

Flame retardant LSZH/PVC jacket meets relevant fire protection requirements in indoor environment

Optical fiber meets the requirements of ITU-T G657A standard

High carbon steel messenger wire enables the self-support type has excellent tensile strength

Technical Parameters:

No. of cable
Fiber Model				G.657A1
Steel wire		Diameter(±0.03)mm		1
		NO.		1
FRP		Diameter(±0.03)mm		0.5
		NO.		2
Outer Sheath		Material		LSZH
		Colour		Black
Cable Diameter(±0.2)mm				5.0×2.0
Cable Wetght(±2)kg/km				21
Attenuation	1310nm		dB/km	0.4
	1550nm			0.3
Allowable Tensile Strength	Short Term		N	600
	Long Term			300
Min. bending radius	Without Tension			15.0×Cable-φ
	Under Maximum Tension			30.0×Cable-φ
Temperature range	Installation			-20~+60
(℃)	Transport&Storage			-40~+70
	Operation			-40~+70

Outdoor FTTH Drop Cable G652D G657A LSZH Fiber Optic Cable Fire Retardant 1

Applications:

• Outdoor wiring system

• FTTH, terminal system

• Indoor shaft,building wiring

Used in access network or as access cable from outdoor to indoor in customer premises network;
Used as access building cable in premises distribution system, especially used in indoor or outdoor

Outdoor FTTH Drop Cable G652D G657A LSZH Fiber Optic Cable Fire Retardant 5

Customization:

We provide FTTH drop cable with ODM/OEM brand name. It has the model number of Singlemode Multimode. The cable originates from China and has been certified by ISO. The minimum order quantity is 1000meters. The fiber core is single-mode and the cable diameter is 3.0mm. The operating temperature is -20℃~+60℃ and the attenuation is ≤0.36dB/km. Our FTTH fiber optic drop cable is Cat5e FTP cable and it is ideal for indoor use.
