Product Details
Place of Origin: China
Brand Name: ODM/OEM
Certification: ISO9001-2000, RoHS, CE
Model Number: Single Mode Multi Mode
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: Negotiation
Packaging Details: 2km/Drum
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Supply Ability: 2000km/Month
Name: |
ADSS Aerial Fiber Optic Cable |
Fiber Grade: |
G.652D, G.657A1, G.657A2, G.657B3 |
Operating Temperature: |
-40℃~+70℃ |
Length: |
Various Lengths |
Material: |
Fiber Optic |
Inner Jacket: |
Aramid Yarn |
Cable Color: |
Black |
Fiber Color: |
Color-coded |
Product Name: |
Aerial GYTA GYTS Outdoor Fiber Optic Cable |
Fiber Brand: |
Corning, OFS, YOFC |
Outer Sheath: |
High Quality PE Jacket |
Armoured: |
Steel-Wire Strenght Member |
Application: |
FTTH FTTB FTTX Network |
Name: |
ADSS Aerial Fiber Optic Cable |
Fiber Grade: |
G.652D, G.657A1, G.657A2, G.657B3 |
Operating Temperature: |
-40℃~+70℃ |
Length: |
Various Lengths |
Material: |
Fiber Optic |
Inner Jacket: |
Aramid Yarn |
Cable Color: |
Black |
Fiber Color: |
Color-coded |
Product Name: |
Aerial GYTA GYTS Outdoor Fiber Optic Cable |
Fiber Brand: |
Corning, OFS, YOFC |
Outer Sheath: |
High Quality PE Jacket |
Armoured: |
Steel-Wire Strenght Member |
Application: |
FTTH FTTB FTTX Network |

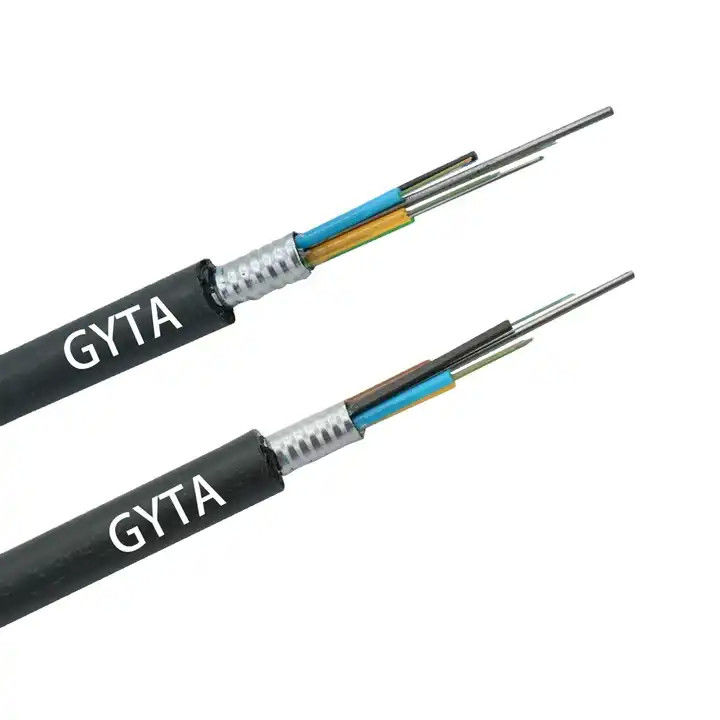

Outdoor Aerial 6 8 12 24 Core GYTA Gyts Adss Optic Fiber Cable Single Mode Fiber Optic Cable Price Per Meter
With the development of fiber optic communication, FTTH has been the final solution of fiber optic network. It adapts to the demand on high speed and massive transmission of optical network signals from many users. In FTTH access projects, common indoor fiber optic cable cannot meet the requests of indoor distribution in mechanical ability and tensile properties. Under the situation of market’s needs, FTTH drop cable with low bending radius and high intensity has been widely used in FTTH’s access network.
| Product Parameters | |||||
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
| Attenuation(+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | > 500 MHz- km | > 200 Mhz-km | ||
| 1300 nm | > 500 MHz- km | > 200 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | > 200 Mhz-km | |||
| Cable Cut-off Wavelength CC | <1260 nm | <1450 nm | |||
Applications:
Customization:
Brand Name: ODM/OEM
Model Number: Single Mode
Place of Origin: China
Certification: ISO9001-2000, RoHS, CE
Minimum Order Quantity: 1000 meters
Price: Negotiation
Packaging Details: 2km/Drum
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Supply Ability: 2000km/Month
Fiber Type: Single-mode Or Multi-mode
Length: Various Lengths
Application: Outdoor
Storage Temperature: -40℃~+85℃
Cable Color: Black
