100 Meter Photoelectric Composite Optical Fiber Cable GDTS Hybrid Optical Cable

Name: 100 Meter Photoelectric Composite Optical Fiber Cable GDTS Hybrid Optical Cable
Brand: ODM/OEM
SKU: ODM/OEM
Price: 1 USD
Availability: InStock
Rating: 4.9 (170 reviews)

Product Details

Place of Origin: China

Brand Name: ODM/OEM

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                photoelectric composite optical fiber cable, photoelectric hybrid optical cable, 100 meter hybrid optical cable


Certification:	CE/ROHS/ISO9001	Model Number:	Distribution Fiber Optic Cable
Product Name:	Hybrid Fiber Cable	Operating Temperature:	-50- +80℃
Fiber Count:	1-288	Cable Jacket:	PVC/LSZH
Fiber Type:	Fiber Optic Cable, 14 18 22 Awg	Cable Diameter:	Customized
Cable Type:	Fiber And Copper	Amored Material:	Aluminum Tape,Steel Tape
Application:	Telecom Comunication	Product Name:	Photoelectric Composite Cable
Allowable Tensile Strength:	1000N	Loose Tube:	PBT Material
Type::	Fiber Optic Cable, 14 18 22 Awg	Standard:	YD/T 901 / IEC 60794-3-10
OEM:	Yes	Keyword:	Outdoor Fiber Optic Cable
Insulation:	Flexible Mixture	Conductor Material:	Bare Copper
Optical Fiber Material:	PMMA & Copper Power Wires

Certification:	CE/ROHS/ISO9001
Model Number:	Distribution Fiber Optic Cable
Product Name:	Hybrid Fiber Cable
Operating Temperature:	-50- +80℃
Fiber Count:	1-288
Cable Jacket:	PVC/LSZH
Fiber Type:	Fiber Optic Cable, 14 18 22 Awg
Cable Diameter:	Customized
Cable Type:	Fiber And Copper
Amored Material:	Aluminum Tape,Steel Tape
Application:	Telecom Comunication
Product Name:	Photoelectric Composite Cable
Allowable Tensile Strength:	1000N
Loose Tube:	PBT Material
Type::	Fiber Optic Cable, 14 18 22 Awg
Standard:	YD/T 901 / IEC 60794-3-10
OEM:	Yes
Keyword:	Outdoor Fiber Optic Cable
Insulation:	Flexible Mixture
Conductor Material:	Bare Copper
Optical Fiber Material:	PMMA & Copper Power Wires

100 Meter Photoelectric Composite Optical Fiber Cable GDTS Hybrid Optical Cable

100 Meter Photoelectric Composite Fibre Optic Cable GDTS Hybrid Fiber Optic Cable

Product Description:

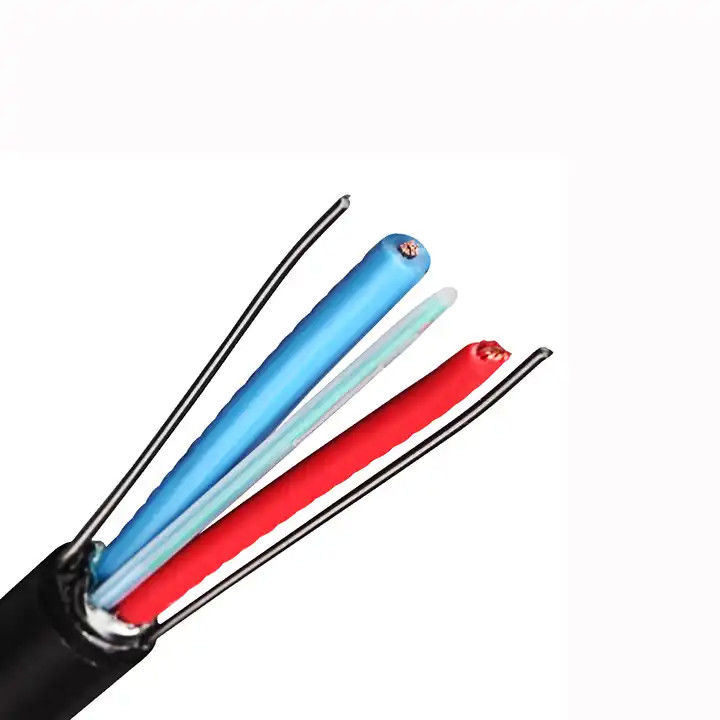

Photoelectric composite cable,also known as electrical and optical hybrid cable, is a combination of optical fiber cable and electric line, it can realize both power transmission and optical fiber distribution functions, avoid the secondary wiring construction,which lay cables and wires simultaneously in a limited space,effectively reduce the construction time and save the cost.

100 Meter Photoelectric Composite Optical Fiber Cable GDTS Hybrid Optical Cable 0

Features:

High strength;

Anti-aging;

Long service life;

Good bending property;

Flame retardant;

High speed transmission;

Low loss and stability

Technical Parameters:

TEST REQUIREMENTS
Approved by various professional optical and communication product institution, JQ also conduct various in-house testing in its own Laboratory and Test Center. She also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products (QSICO). JQ possess the technology to keep its fiber attenuation loss within Industry Standards.
The cable is in accordance with applicable standard of cable and requirement of customer. The following test items are carried out according to corresponding reference. Routine tests of optical fiber

Mode field diameter	IEC 60793-1-45
Mode field Core/clad concentricity	IEC 60793-1-20
Cladding diameter	IEC 60793-1-20
Cladding non-circularity	IEC 60793-1-20
Attenuation coefficient	IEC 60793-1-40
Chromatic dispersion	IEC 60793-1-42
Cable cut-off wavelength	IEC 60793-1-44
Tension Loading Test
Test Standard	IEC 60794-1
Sample length	No less than 50 meters
Load	Max. installation load
Duration time	1 hour

Basic parameters:
Country of Origin	China	Product name	Photoelectric composite cable
Brand name	OUFU or OEM	Type	GYXTW-1~24B+RV
Fiber count	1-24	Fiber model	SM/MM
Strength member	Steel wire	Outer diameter	9.2-15.6mm ±0.2mm
Weight	100-320kg/km	Jacket material	PE
Electric line material	Oxygen-free copper	Electric line size	21.5 22.5 24.0 26.0

100 Meter Photoelectric Composite Optical Fiber Cable GDTS Hybrid Optical Cable 2

Applications:

1. Adopted to indoor distribution.
2. As pigtail of communication equipment
3. Suitable for communication equipment servrd
4. Can be installed conveniently and perated simply

5. hybrid of fiber cable Suitable the filed where needs to transmit light single and electric single.
6. Mobile operator deploying an RRU architecture to standardize the RRU.

Customization:

Customize your own Hybrid Fiber Optic Cable with ODM/OEM!

Model Number: Singlemode Multimode
Place of Origin: China
Product Name: Hybrid Fiber Cable
Fiber Count: 1-288
Cable Type: Fiber And Copper
Operating Temperature: -10~ +70 ℃
Connector Type: Customized

Our Hybrid Fiber Optic Cable is the perfect choice for Multi Mode Fiber Cable, Hybrid Fiber Optic Cable, Fiber Optic Hybrid Cable applications!

Support and Services:

Hybrid Fiber Optic Cable Technical Support and Services

We provide technical support and services for Hybrid Fiber Optic Cable. Our team of experienced professionals is here to help you with installation, configuration, maintenance and repair.

Provide installation and commissioning support
Assist with configuration and maintenance
Provide troubleshooting services
Provide repair and replacement services
Provide training services for personnel
Provide technical support via phone, email or online chat

Company Profile:

Sboter is a professional manufacturer .It has many years experience in R&D, production and sales of fiber optic products. we provide One Stop Solution for fiber optic splicing, distribution, termination and protection products.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2014,sell to South Asia(20.00%),Domestic Market(17.00%),Africa(10.00%),South America(9.00%),North America(8.00%),Southern Europe(6.00%),Western Europe(6.00%),Mid East(6.00%),Eastern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Oceania(2.00%),Eastern Asia(1.00%). There are total about null people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fiber optic splice closure,FTTH box,Fiber optic pigtail,Fiber optic patch panel,Fiber optic connector

4. why should you buy from us not from other suppliers?
Strong R & D ability Factory for producing fiber optic products Professional service

5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
