OEM Hybrid Fibre Coaxial Cable Bundled HNC-3 Hybrid & Composite Cable Cat5e 24AWG

Product Details

Place of Origin: China

Brand Name: ODM/OEM

Certification: ISO9001-2015, RoHS, CE

Payment & Shipping Terms

Get Best Price
Highlight:

OEM Hybrid Fibre Coaxial Cable

,

Hybrid & Composite Cable Cat5e

,

Hybrid & Composite Cable 24AWG

Model Number:
Distribution Fiber Optic Cable
Product Name:
Hybrid Fibre Coaxial Cable
Operating Temperature:
-10~ +70 ℃
Fiber Count:
1-288
Cable Jacket:
PVC/LSZH
Fiber Type:
Fiber Optic Cable, 14 18 22 Awg
Cable Diameter:
Customized
Cable Type:
Fiber And Copper
Amored Material:
Aluminum Tape,Steel Tape
Application:
Telecom Comunication
Product Name:
Photoelectric Composite Cable
Allowable Tensile Strength:
1000N
Loose Tube:
PBT Material
Type::
Fiber Optic Cable, 14 18 22 Awg
Standard:
YD/T 901 / IEC 60794-3-10
OEM:
Yes
Coaxial Cable Conductor Material:
Solid CCS / Solid BC
Lan Cable Conductor Material:
24AWG Solid Bare Copper
Model Number:
Distribution Fiber Optic Cable
Product Name:
Hybrid Fibre Coaxial Cable
Operating Temperature:
-10~ +70 ℃
Fiber Count:
1-288
Cable Jacket:
PVC/LSZH
Fiber Type:
Fiber Optic Cable, 14 18 22 Awg
Cable Diameter:
Customized
Cable Type:
Fiber And Copper
Amored Material:
Aluminum Tape,Steel Tape
Application:
Telecom Comunication
Product Name:
Photoelectric Composite Cable
Allowable Tensile Strength:
1000N
Loose Tube:
PBT Material
Type::
Fiber Optic Cable, 14 18 22 Awg
Standard:
YD/T 901 / IEC 60794-3-10
OEM:
Yes
Coaxial Cable Conductor Material:
Solid CCS / Solid BC
Lan Cable Conductor Material:
24AWG Solid Bare Copper

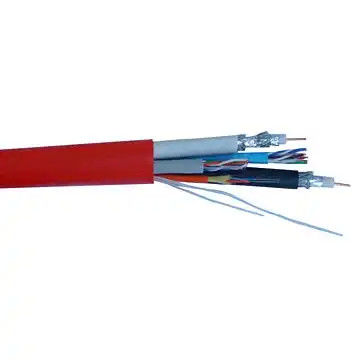

OEM Hybrid Fibre Coaxial Cable Bundled HNC-3 Hybrid & Composite Cable Cat5e 24AWG

Coaxial Cable 2 RG6 Quad Shields CCTV 2 Fiber Optic Cable Bundled HNC-3 Composite Hybrid Cables 2 Cat5e 24AWG

Product Description:

Sboter's Structured Composite cables are designed to support many applications, we provide a wide combinations of cables for CCTV ,Data, Audio, Signals and Power in one cable , which enable faster installations . Three types of structures are available: In one overall jacket, Siamese (bonded side by side), and Triamese (bonded side by side).

Hybrid feeder cabling solution was developed to reduce installation complexity and costs at cellular sites,allows mobile operatiors deploying an RRH architecture to standardize the RRH installation process and eliminate the need and cost of cable grounding.



Hybrid cable combines optical fiber (multimode or single mode ) and copper conductor for DC power in a single light weight aluminium corrugated cable

OEM Hybrid Fibre Coaxial Cable Bundled HNC-3 Hybrid & Composite Cable Cat5e 24AWG 0

Features:

1. The composite cable provides the equipment electricity and single transmission, and improves central monitoring
and maintenance for equipment power.
2. To reduce the coordination and maintenance of power supply.
3. Combines optical fiber (multimode or single mode) and copper conductor for DC power in a single light weight
aluminum corrugated cable.

Technical Parameters:

Conductor(CAT5E) Material Solid Bare Copper
Size 24AWG X 4P
Construction 1/0.50mm
Insulation Material HDPE
Min. Thickness 0.188mm
AVG. Thickness 0.205mm
Diameter 0.91mm
Colors Blue-White/Blue
Orange-White/Orange
Green-White/Green
Brown-White/Brown
Inner Jacket Material PVC
AVG. Thickness 0.60mm
Min. Thickness 0.54mm
Diameter 5.10mm
Colors Grey & Blue
Rip Cord Nylon
Conductor(RG6) Material Solid Bare Copper
Size 18AWG X 1C
Construction 1/1.02mm
Insulation Material FPE
Min. Thickness 1.60mm
AVG. Thickness 1.79mm
Diameter 4.60mm
Colors Natural
Shield Bonded AL-Foil Yes
Braiding-1/0.12±0.004AL Wire) Coverage>60%
Double AL-Foil Yes
Braiding-2(0.12±0.004AL Wire) Coverage>40%
Inner Jacket Material PVC
AVG. Thickness 0.84mm
Min. Thickness 0.75mm
Diameter 7.40mm
Colors Black & White
Conductor(Fiber) 2 Cores Ultra Pure Silica Glass
Core Dia. 62.5±3μm
Clad Dia. 125±2μm
Cladding Non-Circularity (%) <2.0
Core/Clad Concentricity Error <=3.0μm
Insulation Primary Coating Material UV Curable Acrylate
Primary Coating Dia. 245±5μm
Secondary Buffer Material PVC
Secondary Buffer Dia. 0.90mm
Colors Blue & White
Filler Strength Member Aramid Yarn
Inner Jacket Material PVC
AVG. Thickness 0.70mm
Min. Thickness 0.63mm
Diameter 3.50mm
Colors Orange
Assembly 2RG6/U+2CAT5e 15.60mm
Overall Jacket Material PVC
AVG. Thickness 0.75mm
Min. Thickness 0.70mm
Diameter(OD) 17.50mm
Color Per request
Rip Cord Nylon





Applications:

1. Adopted to indoor distribution.
2. As pigtail of communication equipment
3. Suitable for communication equipment servrd
4. Can be installed conveniently and perated simply

5. hybrid of fiber cable Suitable the filed where needs to transmit light single and electric single.
6. Mobile operator deploying an RRU architecture to standardize the RRU.



Customization:

Customize your own Hybrid Fiber Optic Cable with ODM/OEM!

  • Model Number: Singlemode Multimode
  • Place of Origin: China
  • Product Name: Hybrid Fiber Cable
  • Fiber Count: 1-288
  • Cable Type: Fiber And Copper
  • Operating Temperature: -10~ +70 ℃
  • Connector Type: Customized

Our Hybrid Fiber Optic Cable is the perfect choice for Multi Mode Fiber Cable, Hybrid Fiber Optic Cable, Fiber Optic Hybrid Cable applications!

 OEM Hybrid Fibre Coaxial Cable Bundled HNC-3 Hybrid & Composite Cable Cat5e 24AWG 1

Support and Services:

Hybrid Fiber Optic Cable Technical Support and Services

We provide technical support and services for Hybrid Fiber Optic Cable. Our team of experienced professionals is here to help you with installation, configuration, maintenance and repair.

  • Provide installation and commissioning support
  • Assist with configuration and maintenance
  • Provide troubleshooting services
  • Provide repair and replacement services
  • Provide training services for personnel
  • Provide technical support via phone, email or online chat
  OEM Hybrid Fibre Coaxial Cable Bundled HNC-3 Hybrid & Composite Cable Cat5e 24AWG 2

Company Profile:

Sboter is a professional manufacturer .It has many years experience in R&D, production and sales of fiber optic products. we provide One Stop Solution for fiber optic splicing, distribution, termination and protection products.

OEM Hybrid Fibre Coaxial Cable Bundled HNC-3 Hybrid & Composite Cable Cat5e 24AWG 3
OEM Hybrid Fibre Coaxial Cable Bundled HNC-3 Hybrid & Composite Cable Cat5e 24AWG 4
OEM Hybrid Fibre Coaxial Cable Bundled HNC-3 Hybrid & Composite Cable Cat5e 24AWG 5OEM Hybrid Fibre Coaxial Cable Bundled HNC-3 Hybrid & Composite Cable Cat5e 24AWG 6
