Aerial Outdoor Flat Drop Fiber Optic Cable GYFXTBY 1-6F G652D

Name: Aerial Outdoor Flat Drop Fiber Optic Cable GYFXTBY 1-6F G652D
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFXTBY-8b1.3/6B1.3
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	PUNAISGD
Certification:	CE/ROHS/ISO9001
Model Number:	GYFXTBY-8b1.3/6B1.3

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

PUNAISGD

Certification:

CE/ROHS/ISO9001

Model Number:

GYFXTBY-8b1.3/6B1.3

Type:

GYFXTBY-8b1.3/6B1.3

Cores:

8 Fibers/6 Fibers

Strength Member Material:

FRP

Construction:

Central Loose Tube

Useful:

Outdoor Fiber Optic Cable

Transport Package:

Wooden Drum

Cable Dimension:

6.5mm

Jacket Color:

Black

Mode:

Singlemode G652D

Name:

Outdoor Fiber Optic Cable

Highlight:

High Light

Highlight:

g652d outdoor fiber optic cable

g652d outdoor armored fiber optic cable

singlemode outdoor fiber optic cable

Trading Information

Minimum Order Quantity:

1km

Price:

negociate

Packaging Details:

woode drum

Delivery Time:

7days

Payment Terms:

T/T,Western Union

Supply Ability:

1000000km/month

Product Description

Aerial Outdoor Flat Drop Fiber Optic Cable GYFXTBY 1-6F G652D

Product Specifications

Type	GYFXTBY-8b1.3/6B1.3
Cores	8 fibers/6 fibers
Strength Member Material	FRP
Construction	Central Loose Tube
Application	Outdoor Fiber Optic Cable
Transport Package	Wooden Drum
Cable Dimension	6.5mm
Jacket Color	Black
Mode	Singlemode G652D

Product Overview

The GYFXTBY Flat Cable is a non-armored uni-tube optical cable designed for both indoor and outdoor use. Featuring fibers placed in a loose buffer tube protected with jelly to prevent water intrusion, this cable is ideal for aerial installations in FTTH and LAN applications.

Key Features

Central loose tube construction filled with synthetic oil-based jelly
Two embedded FRP or metallic wires for tension support
UV-resistant black polyethylene outer jacket
Operates in temperature range of -40ºC to 70ºC
Available in 4-6 fiber configurations

Technical Specifications

Parameter	G652D	G657A1	G657A2
Attenuation (dB/km)	≤0.36/0.23	≤0.35/0.21	≤0.35/0.21
Dispersion (ps/(nm*km))	≤18/≤22	≤18/≤22	≤18/≤22
Zero dispersion wavelength (nm)	1312±10	1312±10	1300-1324
PMD (ps/√km)	≤0.2	≤0.2	≤0.2
Cladding diameter (μm)	125.0±0.1	124.8±0.1	124.8±0.1

Fiber Color Identification

Fiber Number	Color
1	Blue
2	Orange
3	Green
4	Brown

Construction Details

Strength Member: Aramid yarns providing tensile strength
Outer Jacket: PE sheath extruded over the fiber
Cable Marking: Includes manufacturer name, year, cable type, fiber details, and length marks

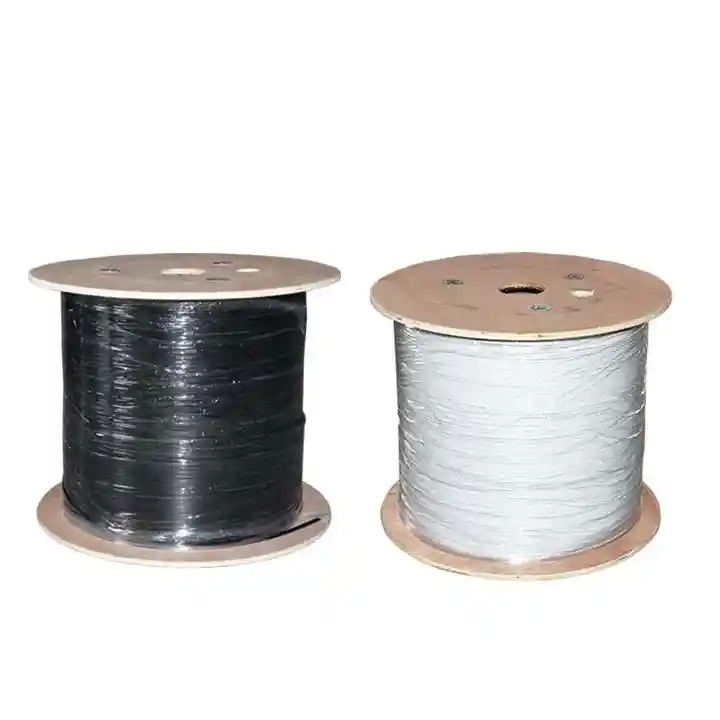

Product Images
