Product Details
Place of Origin: China
Brand Name: ODM/OEM
Certification: ISO9001-2000, RoHS, CE
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Packaging Details: 2km/Drum
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Supply Ability: 2000km/Month
Model Number: |

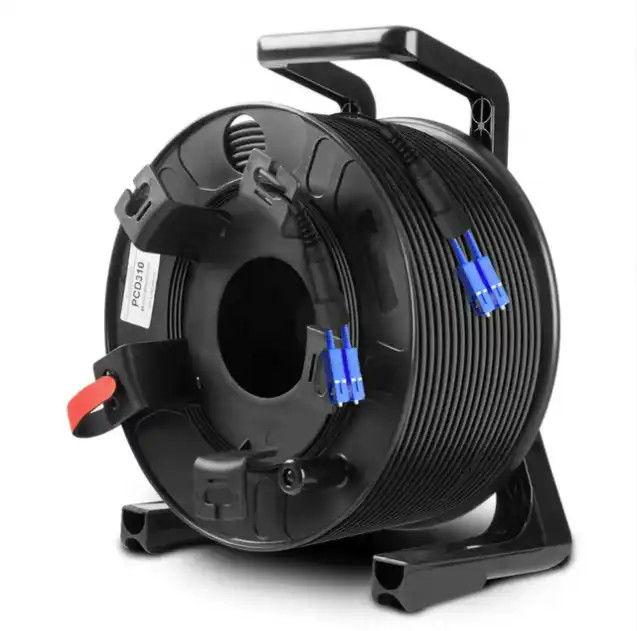

Outdoor Fiber Optic Cable Reel Cart |
Fiber Count: |
2 To 24 Fiber |
Number Of Conductors: |
≥ 10 |
Application: |
Telecommunication |
Fiber Type: |
G655,G652D, G657A1, G657A2 |
Fiber Brand: |
Corning, OFS, YOFC |
Jacket Material: |
PE PVC LSZH |
Storage Temperature(℃): |
-40~+70 |
Packing: |
2KM/Drum |
Model Number: |
Outdoor Fiber Optic Cable Reel Cart |
Fiber Count: |
2 To 24 Fiber |
Number Of Conductors: |
≥ 10 |
Application: |
Telecommunication |
Fiber Type: |
G655,G652D, G657A1, G657A2 |
Fiber Brand: |
Corning, OFS, YOFC |
Jacket Material: |
PE PVC LSZH |
Storage Temperature(℃): |
-40~+70 |
Packing: |
2KM/Drum |
| Product size | 430*360*460mm |
| The disc plate size | φ350mm |
| Trunnion | φ200mm |
| The disc plate width | 180mm |
| Packing size | 470*380*510mm(The wooden case) |
| Gross weight | 7KG |
| The diameter | 3.0-10.0mm |
| Capacity | 1000,550,300,250,180,130,100,80M |
| Color | Black |
| Note | Plastic disc body, adjustable rod, with pulley |
Features
Separate connector compartment for secure deployment
Rugged design for indoor and outdoor use
Highly resistant to shock and abrasion
Galvanized Steel Reels are available either in Blue, Olive Drab or Black finish
Hand reels & stackable storage reels with slotted divider discs
Reels delivered furnished with cable and connectors
Custom reel design available
Application
It could be used in field communication and CATV
It's suitable for single-solder quick distributing and retrieving
It can support LAN cabling
Emergency repair
