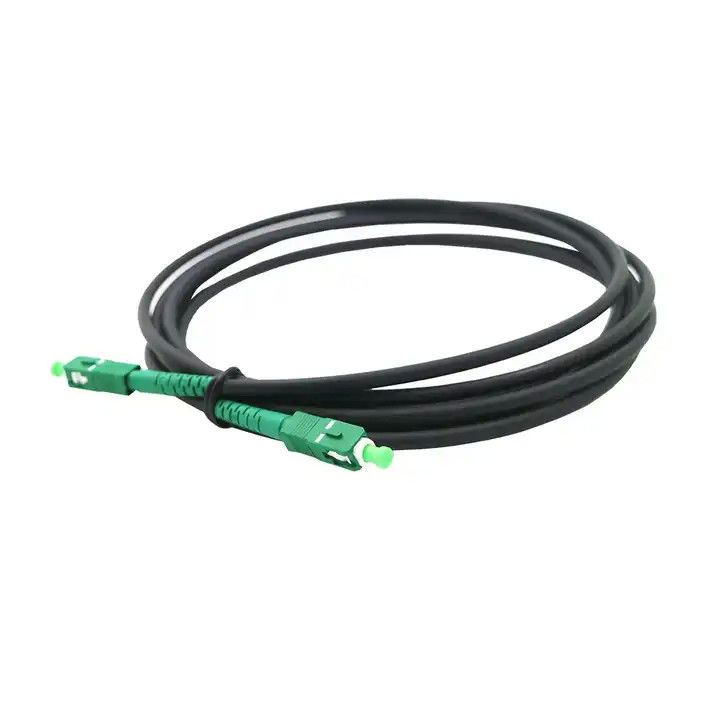

FTTA FTTH Optical Fiber Drop Cable 5mm With SC APC Connector

Product Details

Place of Origin: China

Brand Name: ODM/OEM

Certification: ISO9001-2015, RoHS, CE

Model Number: Outdoor Fiber Optic Patch Cord

Payment & Shipping Terms

Minimum Order Quantity: 10pcs

Packaging Details: Carton Box

Get Best Price
Highlight:

ftth optical fiber drop cable

,

ftta fiber optical drop cable

,

ftta optical fiber drop cable

Fiber Mode:
Single Mode Multi Mode
Cable Type:
Outdoor Armored Cable
Cable Diameter:
3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm
Storage Temperature:
-45℃~+85℃
Use:
FTTA FTTH
Product Name:
Waterproof Patch Cord
Axial Cable Retention:
445N(100lbs)
Application:
Telecommunication & Networks
Fiber Mode:
Single Mode Multi Mode
Cable Type:
Outdoor Armored Cable
Cable Diameter:
3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm
Storage Temperature:
-45℃~+85℃
Use:
FTTA FTTH
Product Name:
Waterproof Patch Cord
Axial Cable Retention:
445N(100lbs)
Application:
Telecommunication & Networks
FTTA FTTH Optical Fiber Drop Cable 5mm With SC APC Connector

Factory Price Fiber Optical Drop Cable 5mm with SC APC Connector Fibra Patch Cord

Product Description:

FTTH Patch cord or pigtail, refers to the drop cable ends with a connector plug, used to achieve optical active connection, also be made into a single head pigtails, and Flexible Splice, Quick connect and other products combined application, Connector types are SC-PC(APC) and FC-PC(APC) , For FTTH project corridor boxes, drop cable distribution boxes, FTTH fiber boxes and other forms of installation.
FTTA FTTH Optical Fiber Drop Cable 5mm With SC APC Connector 0

Features:

  1. IP-68 water and dust protection
  2. Factory teminated for high perfomance
  3. -40*C to +85C operating temperature
  4. 445 N (100 lbs) cable retention
  5. Accepts 4.8mm to 7.0mm cable diameters
  6. Low profle in-line receptade available
  7. No insalltion tools required
  8. 100 minimum mating cycdles

Technical Parameters:







Mode
Single mode
Multimode
Polish
PC
APC
PC
Insertion Loss
≤0.30dB
≤0.30dB
≤0.30dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm
850/1310nm
Durability(500 Matings)
≤0.2dB
Operating Temperature
-40℃~+70℃
Storage Temperature
-45℃~+85℃
Fire Resistant
IEC 60794-2-30
Standards-Compliant
ROHS,IEC and GR-326
Fiber type
Single mode:
9/125-G652D
9/125-G655
9/125-G657A,G657A2
9/125-G657B3
Multimode:
50/125-OM2
62.5/125-OM1
50/125-OM3
50/125-OM4
50/125-OM5
Connector
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC
Cord type
Simplex ,Duplex
Cable diameter
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm, 5mm, 7mm
Cable jacket
PVC, OFNR, LSZH, HPDE, TPU
length(M)
Customized

Applications:

FTTA FTTH Optical Fiber Drop Cable 5mm With SC APC Connector 1



Customization:

Outdoor Fiber Optic Patch Cord
  • Brand Name: ODM/OEM
  • Model Number: Singlemode Multimode
  • Place of Origin: China
  • Cable Type: Outdoor Armored Cable
  • Cable Diameter: 3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm
  • Insertion Loss: ≤0.3dB
  • Packaging Details: Carton Box
  • Use: FTTA

Fiber Jumper, Outdoor Fiber Patch Cord, Outdoor Optical Patch Cord are all available for customization.



Support and Services:

Outdoor Fiber Optic Patch Cord Technical Support and Service

We provide technical support and service for our Outdoor Fiber Optic Patch Cord products. Our team of experienced engineers and technicians can provide fast, reliable and cost-effective solutions to any issues that may arise.

We offer a range of services including installation, troubleshooting, and repairs. Our team can also advise on best practices and provide advice on how to maximize the performance of our products.

If you have any questions or require assistance, please don't hesitate to get in touch. We aim to provide an excellent level of customer service and will do our best to ensure that your issue is resolved quickly and efficiently.

Company Profile:

Sboter is a professional manufacturer .It has many years experience in R&D, production and sales of fiber optic products. we provide One Stop Solution for fiber optic splicing, distribution, termination and protection products.
FTTA FTTH Optical Fiber Drop Cable 5mm With SC APC Connector 2

FTTA FTTH Optical Fiber Drop Cable 5mm With SC APC Connector 3

FTTA FTTH Optical Fiber Drop Cable 5mm With SC APC Connector 4
