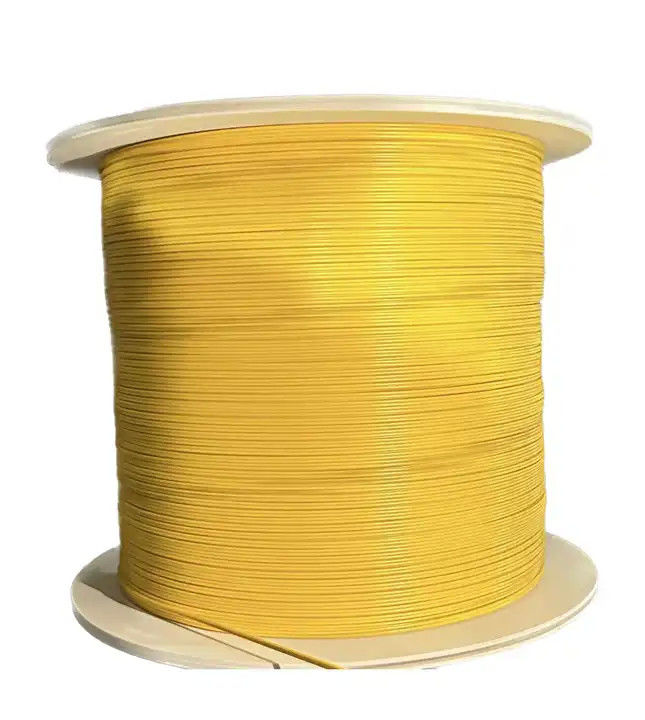

Flexible Indoor Fiber Optic Cable Data Transmission Various Diameter

Product Details

Place of Origin: China

Brand Name: ODM/OEM

Certification: FCC ISO9001, RoHS, CE

Model Number: Singlemode Multimode

Payment & Shipping Terms

Minimum Order Quantity: 1000 meters

Packaging Details: 1-2km/Drum

Get Best Price
Highlight:

flexible indoor fiber optic cable

,

indoor fiber optic cable data transmission

,

fiber optic cable data transmission various diameter

Name:
Indoor Fiber Optic Cable
Cable Temperature:
Various Temperatures
Cable Diameter:
Various Diameters
Fiber Grade:
Various Grades
Cable Weight:
Various Weights
Cable Type:
Fiber Optic
Cable Jacket:
Indoor
Cable Length:
Various Lengths
Cable Core:
Single-mode Or Multimode
Name:
Indoor Fiber Optic Cable
Cable Temperature:
Various Temperatures
Cable Diameter:
Various Diameters
Fiber Grade:
Various Grades
Cable Weight:
Various Weights
Cable Type:
Fiber Optic
Cable Jacket:
Indoor
Cable Length:
Various Lengths
Cable Core:
Single-mode Or Multimode
Flexible Indoor Fiber Optic Cable Data Transmission Various Diameter

Flexible Indoor Fiber Optic Cable With Various Certifications

Product Description:

Indoor fiber optic cable is a reliable and efficient fiber optic internal cable system, providing superior performance for various applications. It is designed for indoor wiring, and offers a wide variety of lengths, performances, counts, cores and grades for various needs. The single-mode or multimode fiber grade is ideal for high-speed data transmission, and provides excellent performance in various environments. The fiber optic cable offers maximum flexibility and reliability, making it the perfect solution for internal wiring. This fiber optic cable is highly durable, and provides excellent performance, making it an ideal choice for both indoor and outdoor applications.

Flexible Indoor Fiber Optic Cable Data Transmission Various Diameter 0

Features:

  • Product Name: Indoor Fiber Optic Cable
  • Cable Color: Various Colors
  • Cable Temperature: Various Temperatures
  • Fiber Grade: Various Grades
  • Cable Core: Single-mode Or Multimode
  • Cable Jacket: Indoor
  • Ideal for Fiber Optic Internal Cable, Indoor Fiber Optic Networking, and Indoor Fiber Optic Wiring


Technical Parameters:

Product name
Simplex Optical Fiber Cable
Optical cable type
GJFJV-1B1.3
Fiber type
G.652D,(B1.3),OS2
Fiber Count
1
Tight-buffered Fiber Material / Color
PVC / LSZH (White)
Strength member
Aramid yarn
Outer Jacket Material / Color
PVC / LSZH (Pantone 136C Yellow)
Optical Fiber Cable Dimension (mm)
1.6±0.1
2.0±0.1
3.0±0.1
Outer Jacket Thickness
0.20~0.30
0.30~0.40
0.40~0.50
Tight-buffered Fiber Dimension (mm)
0.6±0.05
0.85±0.05
0.85±0.05
Tension(Long Term)N
40
60
80
Tension(Short Term)N
80
100
150
Crush(Long Term)N/100mm
100N/100mm
100N/100mm
100N/100mm
Crush(Short Term)N/100mm
500N/100mm
500N/100mm
500N/100mm
Min. Bend Radius(Dynamic)mm
60
60
20D
Min. Bend Radius(Static)mm
30
30
10D
Weight (kg/km)
2.3
3.7
6.7
Operation temperature (℃)
-20~+70
Attenuation (dB/km)
≤ 0.4dB/km at 1310nm; ≤ 0.3dB/km at 1550nm



Marking
GJFJH-1B1.3 #mm PVC DD/MM/YYYY XXXXXm

Note: # is the outer diameter of the cable

Outer Jacket Material:PVC / LSZH

Or printing according to customer requirements.
Environment resistance
RoHS 2.0
Flame resistance
IEC 60332-1-2
Note: cable comply with YD/T 1258.2 standard, unless otherwise specified.

Applications:

Indoor Fiber Optic Cable is an ideal solution for indoor fiber optic link and fiber optic cable system. It is designed for inside fiber optic wiring to deliver superior performance and reliability. It has a wide range of applications, such as data centers, enterprise networks, residential areas, FTTH, etc. It is ODM/OEM brand and has various lengths, temperatures, colors, diameters and grades. It provides faster and more secure data transmission, and can be used in various applications and scenarios.

Indoor Fiber Optic Cable is a low-loss, high-performance optical cable that is used for indoor applications. It is designed to provide the highest performance with minimal signal loss. It is designed to be easy to install and maintain, and can be used for both short and long runs. It is available in various lengths, temperatures, colors, diameters and grades. It is ideal for applications such as data centers, enterprise networks, residential areas, FTTH, etc. It provides a secure and reliable connection for data transmission, and is suitable for a wide range of applications and scenarios.

Indoor Fiber Optic Cable is the perfect choice for indoor applications. It is designed to provide excellent performance with minimal signal loss. It is available in various lengths, temperatures, colors, diameters and grades. It is suitable for applications such as data centers, enterprise networks, residential areas, FTTH, etc. It provides faster and more secure data transmission, and can be used in various applications and scenarios.

ODM/OEM Indoor Fiber Optic Cable offers superior performance and reliability. It is designed for inside fiber optic wiring to deliver superior performance and reliability. It is available in various lengths, temperatures, colors, diameters and grades. It is suitable for applications such as data centers, enterprise networks, residential areas, FTTH, etc. It provides faster and more secure data transmission, and is ideal for a wide range of applications and scenarios.



Customization:

Indoor Fiber Optic Cable

Customize your own indoor fiber optic cables with ODM/OEM Brand Name! Our indoor fiber optic cables come with various certifications, various weights, and various materials. You can choose from single-mode and multi-mode cables to suit your needs. Whether you need a short link, a long link, or anything in between, we have the perfect fiber optic indoor cable for you.

Features:

  • Brand Name: ODM/OEM
  • Model Number: Singlemode Multimode
  • Place of Origin: China
  • Cable Type: Fiber Optic
  • Cable Certification: Various Certifications
  • Cable Weight: Various Weights
  • Cable Jacket: Indoor
  • Cable Material: Various Materials

Benefits:

  • Fiber Optic Indoor Cable
  • Fiber Optic Indoor Link
  • Various Certifications
  • Various Weights
  • Various Materials


Support and Services:

Indoor Fiber Optic Cable offers technical support and services to ensure that our customers get the most out of their products. Our technical support team is available to help answer questions about product installation, troubleshooting, and maintenance. In addition, we provide a variety of services, such as training and consulting, to help customers get the most out of their Indoor Fiber Optic Cable products.



Packing and Shipping:

Packaging and Shipping for Indoor Fiber Optic Cable:

The indoor fiber optic cable should be packaged in a corrugated box that is labeled with the product name, the quantity, and the destination. The box should be sealed with a quality packing tape to ensure the cable is secure during shipping. If necessary, additional void fill or cushioning materials can be added to the box to protect the cable from damage.

The box should be shipped using a reliable shipping carrier that provides tracking information. It is important to provide the shipping carrier with accurate and complete delivery information to ensure the cable arrives safely and on time.



FAQ:

Q: What is Indoor Fiber Optic Cable?
A: Indoor Fiber Optic Cable is a type of cable used for transmitting data signals through optical fibers from one device to another.
Q: Is Indoor Fiber Optic Cable ODM/OEM?
A: Yes, Indoor Fiber Optic Cable is ODM/OEM.
Q: What is the model number of Indoor Fiber Optic Cable?
A: The model number of Indoor Fiber Optic Cable is Singlemode Multimode.
Q: Where is Indoor Fiber Optic Cable made?
A: Indoor Fiber Optic Cable is made in China.
Q: What are the benefits of using Indoor Fiber Optic Cable?
A: Indoor Fiber Optic Cable has many benefits, such as high speed transmission, low power consumption, and easy installation.
