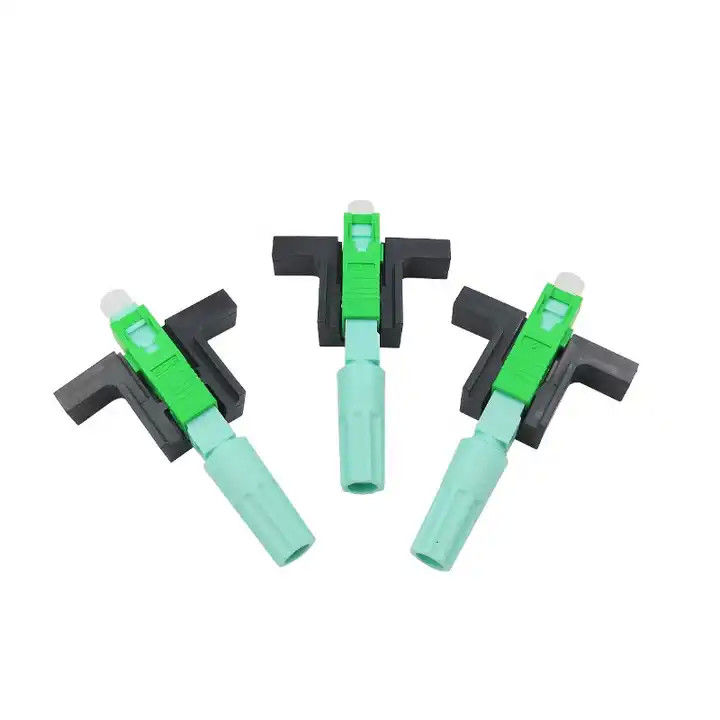

Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components

Product Details

Place of Origin: China

Brand Name: ODM/OEM

Certification: ISO9001-2015, RoHS, CE

Payment & Shipping Terms

Packaging Details: Carton Box

Get Best Price
Highlight:

Fiber Optic Mechanical Splice FTTH Fast Connector

,

FTTH Fast Connector

Model Number:
APC/UPC Fast Connector-ZR30103
Use:
FTTH
Product Name:
FTTH Fiber Optic Quick Fast Connector SC APC SC UPC
CInsertion Loss:
≤0.3db
Return Loss:
≥50db
Connector Type:
SC FC LC ST
Item:
FTTH Drop Cable,CATV ,CCTV,etc
Tension Test:
≥100N
Fiber Mode:
Single Mode
Keywords:
Sc/upc Sc/apc Connector
Network:
Wireless Lan, Wired LAN, Wifi, 4g, 3G
Model Number:
APC/UPC Fast Connector-ZR30103
Use:
FTTH
Product Name:
FTTH Fiber Optic Quick Fast Connector SC APC SC UPC
CInsertion Loss:
≤0.3db
Return Loss:
≥50db
Connector Type:
SC FC LC ST
Item:
FTTH Drop Cable,CATV ,CCTV,etc
Tension Test:
≥100N
Fiber Mode:
Single Mode
Keywords:
Sc/upc Sc/apc Connector
Network:
Wireless Lan, Wired LAN, Wifi, 4g, 3G
Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components

Electronic Components Fiber Optics Equipment SC LC FC ST Fusion Apc Upc Field FTTH Mechanical Splice Fast Connectors

Product Description:



SC fast connector allow you to terminate a fiber in short time. The fast connect is a pre-polished connector which uses mechanical clamping and aligning of a cleaved fiber end which is inserted into the connector body. The fast connect is available in both singlemode andmultimode (OM1 and OM3 10Gig)and a variety of connector types and can be terminated onto 250um and 900um coated fibre as well as 2x3 mm and 2x1.6 mm jacketed cord.

Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 0

Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 1Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 2Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 3Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 4Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 5

Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 6Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 7

Features:

* Field-installable
* Fast and easy to terminate
* Excellent insertion and RL performance
* Reusable
* No termination enclosure required.
* Handles and performs like a factory terminated connector
* Twin end-face of pre embedded fiber is polished in the factory
* Fiber optics is aligned in V-groove through the ceramic frrule

Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 8

Technical Parameters:

Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 3
Item
Parameter
Cable Scope
2x3mm and 2x 1.6mm, 0.9mm
Fiber Diameter
125μm (G652 & G657A1, G657A2)
Coating Diameter
250μm
Mode
SM
Operation Time
about 15s(exclude fiber presetting)
Insertion Loss
≤ 0.3dB(UPC) ; ≤ 0.3dB(APC)
Return Loss
≥50dB for UPC, ≥55dB for APC
Success Rate
>98%
Reusable Times
>10 times
Tighten Strength of Coating
>10 N
Tensile Strength
>5 N
Temperature
-40 ~ +85 C
On-line Tensile Strength Test (20 N)
IL ≤ 0.5dB
Mechanical Durability(500 times)
IL ≤ 0.5dB
Drop Test (4m concrete floor, once each direction, three times total)
IL ≤ 0.5dB



Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 10

Applications:

Direct termination of fibre
FTTx networks(FTTH. FTTD)
Enterprise/Access networks
LAN/WAN
Permanent/Temporary replacement/repairs
Pre-installation cable drum testing

  Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 11



Customization:

We offer customized services for Outdoor Fiber Optic Patch Cord with the following attributes:

  • Brand Name: ODM/OEM
  • Model Number: Outdoor Fiber Optic Patch Cord
  • Place of Origin: China
  • Durability: ≥1000 Times
  • Warranty Time: 1 Year
  • Product Name: Outdoor Fiber Optic Patch Cord
  • Insertion Loss: ≤0.3dB

We especially emphasize Outdoor Optical Patch Cord, Outdoor Fiber Optic Cord, and Fiber Jumper.

Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 12

Support and Services:

Technical Support and Service for Outdoor Fiber Optic Patch Cord

We provide high quality technical support and service for Outdoor Fiber Optic Patch Cord. Our experienced technical team is available 24/7 to assist with any questions or concerns you may have.

We offer comprehensive technical support and service for the following aspects of Outdoor Fiber Optic Patch Cord:

  • Installation and setup
  • Troubleshooting and repair
  • Upgrades and updates
  • Maintenance and optimization

Our team is also available to provide personalized consultations and advice on how to best use your Outdoor Fiber Optic Patch Cord to get the most out of it.

If you have any questions or concerns, please don’t hesitate to contact us.

Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 13

Company Profile:

Sboter is a professional manufacturer .It has many years experience in R&D, production and sales of fiber optic products. we provide One Stop Solution for fiber optic splicing, distribution, termination and protection products.
Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 14

Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 15
Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 16
Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 17

Fiber Optic Mechanical Splice FTTH Fast Connector for Electronic Components 18
