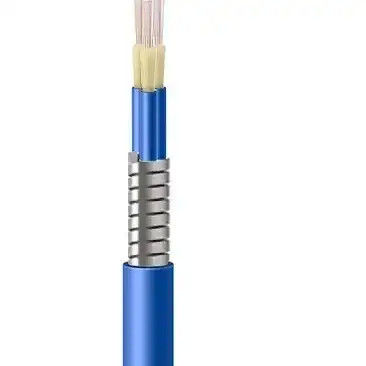

GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom

Product Details

Place of Origin: China

Brand Name: ODM/OEM

Certification: ISO9001-2000, RoHS, CE

Model Number: Singlemode Multimode

Payment & Shipping Terms

Minimum Order Quantity: 1000 meters

Get Best Price
Highlight:

breakout armored fiber optic cable single mode

,

gjsfjv armored fiber optic cable single mode

,

Armoured Single Mode Fiber Optic Cable

Product Name:
Armored Fiber Optic Cable
Fiber Type:
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Storage Temperature:
-40℃~+85℃
Cable Diameter:
3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm/ 12.0mm/ 14.0mm/ 16.0mm
Application:
Telecom
Fiber Mode:
Single-mode/Multi-mode
Cable Type:
Spiral Armored Optical Cable
Jacket:
PVC LSZH LSOH PE HDPE
Strength Material:
Aramid Yarn
Package:
Wood Drum
Certification:
ISO9001,ROHS,ANTEL,etc
Bending Radius(Dynamic):
10D
Bending Radius(Static):
20D
Material Of Armored Tube:
Spiral Stainless Steel
Product Name:
Armored Fiber Optic Cable
Fiber Type:
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Storage Temperature:
-40℃~+85℃
Cable Diameter:
3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm/ 12.0mm/ 14.0mm/ 16.0mm
Application:
Telecom
Fiber Mode:
Single-mode/Multi-mode
Cable Type:
Spiral Armored Optical Cable
Jacket:
PVC LSZH LSOH PE HDPE
Strength Material:
Aramid Yarn
Package:
Wood Drum
Certification:
ISO9001,ROHS,ANTEL,etc
Bending Radius(Dynamic):
10D
Bending Radius(Static):
20D
Material Of Armored Tube:
Spiral Stainless Steel
GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom

GJSFJV Multi Cores Breakout Sprial Armored Fiber Optic Cable For High Quality Market

Product Description:

Armored tactical optical cable with the characteristics of strong tension stress, strong compressive resistance, high flexibility, bending resistance, used for military tactical field, communication between radars or oil field, mining work place.

It has the compact all dielectric structure, for easy installation and repeatable usage. Steel spiral tube combined with the stainless steel mesh to strength the cable, and ensures high mechanical and transmission performance. Flame retardant LSZH guarantees structure stability and features of crush-resistant, rubbing-resistant, oil-resistant and flame retardant.



GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom 0GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom 1GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom 2

Features:

  • High intensity optical fiber coating with compound structure guarantees cable's stability and durability.
  • The LSZH jacket is flame retardant.
  • Kevlar make cable have excellent tensile strength.
  • All dielectric structure, light weight.
  • Good mechanical and environmental characteristics.

Technical Parameters:

Item
Value
Type
Outdoor/Indoor Fiber Optic Cable
Place of Origin
Guangdong CHINA
Brand
OEM
Number of Conductors
≥ 1
Product name
Armored fiber optic cable
Application
chemical plant, oil refinery, forest, subway...
Fiber
9/125um, 62.5/125um, 50/125um
Cable OD.
3.0mm/4.0mm/5.0mm/6.0mm/7.0mm/8.0mm
HS CODE
8544700000
Armored
Spiral steel armored protected
Mode
Singlemode ,MultiMode
SM / MM
G.652D, G.657A1 or G.657A2 ,OM1,OM2,OM3,OM4
Metal Braiding
Stainless steel
Tensile
Kevlar
Temperature(°C)
-20~+75°C
Cable loss(db/km)
850nm ≦3.5 ; 1300nm ≦1.5
Tensile(N)
Long Term: 300N ; Short Term : 500N
Bending Radius(mm)
Dynamic 20D, Static 10D


GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom 3

Applications:

1. Military communication system

2. Communication between radars or oil field,mining work place

3. Excellent for use in deployment/retrieval applications

GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom 4

Customization:

Armored Fiber Optic Cable:

  • Brand Name: ODM/OEM
  • Model Number: Singlemode Multimode
  • Place of Origin: China
  • Cable Type: Armored
  • Fiber Grade: G652D/G657A1/G657A2/G655C
  • Connector Type: LC/ SC/ FC/ ST/ MU/ MTRJ/ MPO/ E2000/ DIN/ D4
  • Cable Grade: A/B/C/D
  • Storage Temperature: -40℃~+85℃
  • Fiber Optic Shielding: Yes
  • Fiber Optic Connectors: Yes
  Support and Services:

For technical support and service on Armored Fiber Optic Cable, our team of experienced professionals are available to answer any questions you may have. Our team is available 24/7 to provide prompt and effective solutions to any inquiries.

We are committed to ensuring that our products meet the highest standards of quality and performance. We guarantee fast response times, efficient customer service, and satisfaction with our products.

If you need assistance with Armored Fiber Optic Cable, please contact us today.



Company Profile:

Sboter is a professional manufacturer .It has many years experience in R&D, production and sales of fiber optic products. we provide One Stop Solution for fiber optic splicing, distribution, termination and protection products.

GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom 5
GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom 6

GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom 7
GJSFJV Breakout Armored Fiber Optic Cable Single Mode / Multimode For Telecom 8
