| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Custom Fiber Optic Cable | Number Of Cores: | 4-144 Core |
|---|---|---|---|
| Fiber Count: | 4-24 Core | Keyword: | Custom Fiber Optic Cable |
| OEM: | Accepted | Application: | Outdoor Duct, Outdoor Aerial |
| Jacket Material: | PE PVC | Brand Name: | Yiyuan |
| Certification: | ISO 9001;ISO 14001;OHSAS 18001 | Color: | Black Or Customized |
| Place Of Origin: | China | Installation: | Self-supporting Aerial |
| Package: | Wood Coil Strand | ||
| High Light: | 96core Custom Fiber Optic Cable,72core Custom Fiber Optic Cable,Submarine Fiber Optic Cable |
||
Submarine Custom Fiber Optic Cable Layer Stranded PE Inner Sheath

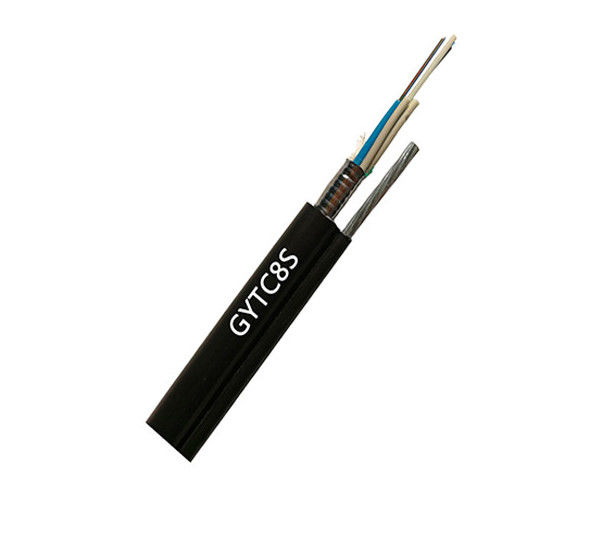

Definition of GYFTC8S
The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A FRP locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After wrapped with the water blocking tape, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.
Characteristics
· Non-metal strength has an excellent anti-electromagnet ability
· Proven loose tube design for good performance
· Excellent mechanical and environmental characteristics
· Good flexibility and bending performance
· Small outer diameter,light weigh easy to installation
Specification
| fiber count | configuration | filler number | out diameter | mass | minimum bend radius | tensile strength | crush resistance | |||
| dynamic | static | short term | long term | short term | long term | |||||
| tubesxfibres | mm | kg/km | mm | mm | N | N | N/10CM | N/10CM | ||
| 6 | 1x6 | 5 | 10.9*18.8 | 180 | 220 | 110 | 5000 | 2500 | 1000 | 300 |
| 12 | 2x6 | 4 | 10.9*18.8 | 180 | 220 | 110 | 5000 | 2500 | 1000 | 300 |
| 24 | 4x6 | 2 | 10.9*18.8 | 180 | 220 | 110 | 5000 | 2500 | 1000 | 300 |
| 36 | 6x6 | 0 | 10.9*18.8 | 180 | 220 | 110 | 5000 | 2500 | 1000 | 300 |
| 48 | 4X12 | 2 | 11.7*19.6 | 200 | 240 | 120 | 5000 | 2500 | 1000 | 300 |
| 60 | 5x12 | 1 | 11.7*19.6 | 200 | 240 | 120 | 5000 | 2500 | 1000 | 300 |
| 72 | 6x12 | 0 | 11.7*19.6 | 200 | 240 | 120 | 5000 | 2500 | 1000 | 300 |
| 96 | 8X12 | 0 | 13.1*21.0 | 230 | 270 | 135 | 5000 | 2500 | 1000 | 300 |
| 144 | 12x12 | 0 | 15.8*23.7 | 310 | 320 | 160 | 5000 | 2500 | 1000 | 300 |
| 192 | 8x24 | 0 | 14.9*22.8 | 280 | 300 | 150 | 5000 | 2500 | 1000 | 300 |
| 288 | 12x24 | 0 | 18.4*26.3 | 390 | 370 | 185 | 5000 | 2500 | 1000 | 300 |
