| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Non Metallic Fiber Optic Cable | Number Of Cores: | 2-144 Core |
|---|---|---|---|
| Outer Sheath Material: | PE | OEM: | Accepted |
| Application: | Outdoor Duct/outdoor Cable/aerial/lashed | Brand Name: | Yiyuan |
| Certification: | ISO 9001;ISO 14001;OHSAS 18001 | Color: | Black Or Customized |
| Number Of Conductors: | ≥ 10 | Place Of Origin: | China |
| Installation: | Self-supporting Aerial | Package: | Plywood Reel/customized |
| Fiber Type: | Single Mode | Strength Member: | FRP |
| High Light: | 24core fiber optic trunk cable,48core fiber optic trunk cable,Hydrolysis Resistant aerial fiber optic cable |
||
Network Armored Fiber Optic Trunk Cable Outdoor Aerial Hydrolysis Resistant
Description:
GYTS fiber optic cable is a type of fiber optic cable that comprises fiber stand from 2 - 432 cores. This type of fiber cable has drastically changed the telecommunication industry through the use of more effective forms of communication networks. GYTS fiber optic cable has improves the communication effectiveness across the urban areas.

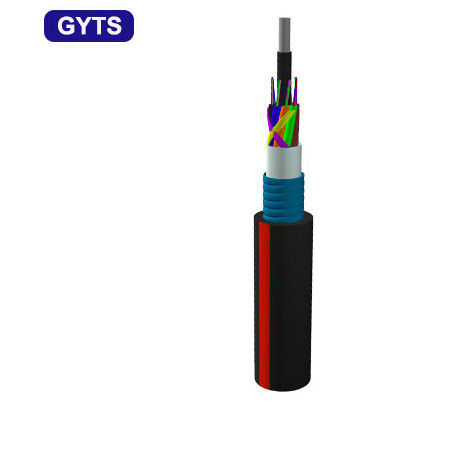

Structure:
Characteristics
Optimum cable structure, high fibre density.
Accurate fibre length balance, ensure stable performance.
No gel in cable core for water blocking, low carbon and environmental friendly.
Structure Innovation in sheath, enhancing the blowing performance.
Proven loose tube design for performance.
Small diameter, lightweight and low friction sheath design.
Excellent blowing length and fast, safe and cost effective installation.
Easy installation and removal when necessary.
| Applications |
Buried, duct, aerial Relay communication system |
| Temperature | Operating temperature: -40°C~+70°C |
| Standards | YD/T901-2009 IEC60794-1 |
Technical Parameters:
| Fiber Count | Structure | Diameter(mm) | Weight (kg/km) | Tensile(N) | Crush(N) | Bending Radius(mm) | |||
| Long term | Short term | Long term | Short term | Static | Dynamic | ||||
| 2-30 | 1+5 | 9.2 | 89 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| 32-36 | 1+6 | 9.7 | 104 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| 38-60 | 1+5 | 9.8 | 99 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| 62-72 | 1+6 | 10.7 | 125 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| 74-84 | 1+7 | 11.4 | 135 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| 86-96 | 1+8 | 12.1 | 148 | 600 | 2000 | 300 | 1000 | 10D | 20D |
| 98-108 | 1+9 | 12.7 | 162 | 600 | 2000 | 300 | 1000 | 10D | 20D |
| 110-120 | 1+10 | 13.3 | 174 | 600 | 2000 | 300 | 1000 | 10D | 20D |
| 122-132 | 1+11 | 13.9 | 187 | 600 | 2000 | 300 | 1000 | 10D | 20D |
| 134-144 | 1+12 | 14.6 | 204 | 600 | 2000 | 300 | 1000 | 10D | 20D |
| 146-216 | 1+6+12 | 14.7 | 212 | 600 | 2500 | 300 | 1000 | 10D | 20D |
| 218-288 | 1+9+15 | 16.7 | 254 | 600 | 3000 | 300 | 1000 | 10D | 20D |
FAQ
1. Are you trading company or manufacturer?
We are the manufacturer with 12 years experience.
2. About the quality?
After price confirmation, you can require for samples to check our quality.
3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4. What is your delivery time?
It mainly depend on order quantity.But pls be assured that we will arrange your goods asap after your payment .
