| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Non Metallic Fiber Optic Cable | Number Of Cores: | 2-144 Core |
|---|---|---|---|
| Outer Sheath Material: | PE | OEM: | Accepted |
| Application: | Outdoor Duct/outdoor Cable/aerial/lashed | Brand Name: | Yiyuan |
| Certification: | ISO 9001;ISO 14001;OHSAS 18001 | Color: | Black Or Customized |
| Number Of Conductors: | ≥ 10 | Place Of Origin: | China |
| Installation: | Self-supporting Aerial | Package: | Plywood Reel/customized |
| Fiber Type: | Single Mode | Strength Member: | FRP |
| High Light: | 1000N Non Metallic Fiber Optic Cable,MDPE Non Metallic Fiber Optic Cable,8 Core single mode and multimode fiber |
||

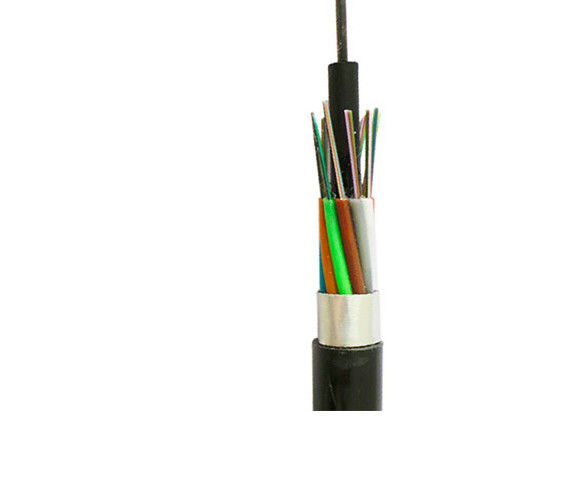

Jelly Compound Non Metallic Fiber Optic Cable 8 Core Bulk Single Mode And Multimode
Description
GYTA is used for duct or aerial applications. These aluminum tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant. Hongan provides GYTA from 4 fiber cores to 288 fiber cores. Both single mode type and multimode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.
Characteristics:
Application
Designed for installation in an underground duct for data transmission
Cable can also be routed vertically inside buildings
Parameters
|
Item
|
|
Parameter
|
|
Fiber-G652D
|
Attenuation Coefficient
|
1310nm dB/km ≤0.4
|
|
|
|
1550nm dB/km ≤0.3
|
|
Outer jacket
|
Material
|
MDPE
|
|
|
Color
|
Black
|
|
Min. bending radius
|
Static
|
10 times cable diameter
|
|
|
Dynamic
|
20 times cable diameter
|
|
Repeating bending
|
Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
|
|
|
Tensile performance
|
Short term
|
1500N The addition attention≤0.1dB,fiber strain ≤0.15%
|
|
Crush
|
Short term
|
1000N/100mm The addition attention≤0.1dB
|
|
Torsion
|
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
|
|
|
Impact
|
Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.
|
|
