| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Armored Fiber Optic Cable | Fiber Count: | 2-288 Core |
|---|---|---|---|
| OEM: | Accepted | Application: | Outdoor Duct |
| Jacket Material: | PE PVC LSZH HDPE | Brand Name: | Yiyuan |
| Certification: | ISO 9001;ISO 14001;OHSAS 18001 | Color: | Black Or Customized |
| Strength Member: | Steel Wire | Place Of Origin: | China |
| Installation: | Self-supporting Aerial | Package: | Plywood Reel/customized |
| High Light: | LSZH railway fiber optic cable,48core railway fiber optic cable,GYTZA53 Fiber Optic Cable |
||
GYTZA53 Railway Fiber Optic Cable Heavy Armor Tunnel LSZH Direct Buried 2-48 Core
| Optical Characteristics | |||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) |
'@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| '@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| '@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| '@1550nm | ≤0.22 dB/km | ≤0.23 dB/km | |||
| Bandwidth (Class A) |
'@850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| '@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||

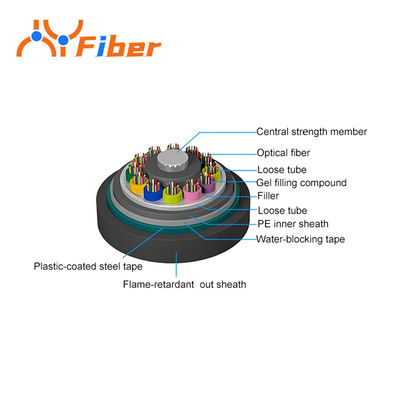

The fibers, ∅250µm colored fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with PE for cable with high fiber count, locates in the center of core as metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Ployethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin flame-retardant inner sheath, which is filled with jelly to protect it from water ingress. Ater a corrugated steel tape armor is applied, the cable is completed with a flame-retardant outer sheath.
Features:
Applications:
