| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Non Metallic Fiber Optic Cable | Number Of Cores: | 2-144 Core |
|---|---|---|---|
| Outer Sheath Material: | PE | OEM: | Accepted |
| Application: | Outdoor Duct/outdoor Cable/aerial/lashed | Brand Name: | Yiyuan |
| Certification: | ISO 9001;ISO 14001;OHSAS 18001 | Color: | Black Or Customized |
| Number Of Conductors: | ≥ 10 | Place Of Origin: | China |
| Installation: | Self-supporting Aerial | Package: | Plywood Reel/customized |
| Fiber Type: | Single Mode | Strength Member: | FRP |
| High Light: | GYTA Non Metallic Fiber Optic Cable,20D Non Metallic Fiber Optic Cable,24core steel armored fiber optic cable |
||

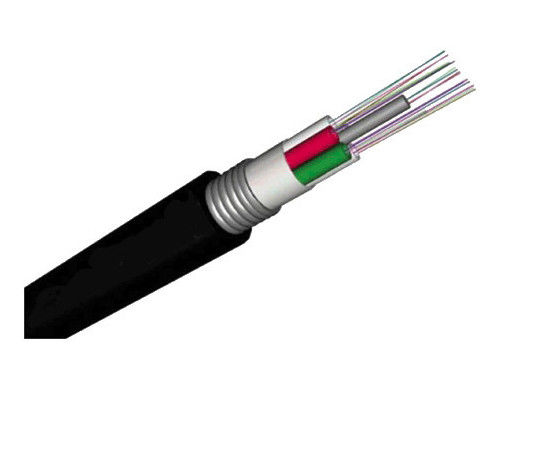

GYTA Non Metallic Fiber Optic Cable PE Jacket Steel Armored Central Strength Member
Quick Detail:
Description:

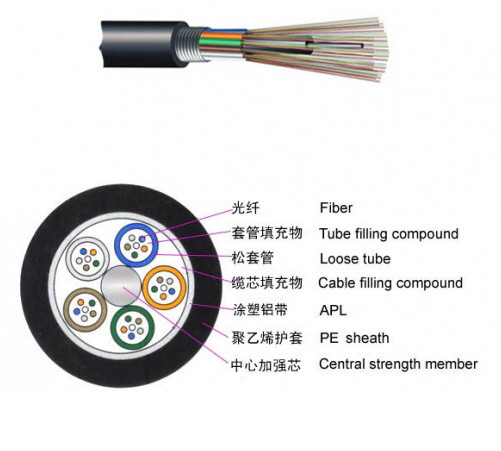

GYTA Aluminum Polyethylene Laminate (APL) is applied around the cable core, which isfilled with the filling compound to protect it from water ingress.
Features:
Application:
Technical Parameters:
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength (N) | Crush Resistance (N/100mm) |
Bending Radius (mm) |
| Long/Short Term | Long/Short Term | Static/Dynamic | ||||||
| GYTA-2~6 | 2~6 | 1 | 4 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-8~12 | 8~12 | 2 | 3 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-14~18 | 14~18 | 3 | 2 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-20~24 | 20~24 | 4 | 1 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-26~30 | 26~30 | 5 | 0 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-32~36 | 32~36 | 6 | 0 | 10.2 | 104 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-38~48 | 38~48 | 4 | 1 | 11 | 117 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-50~60 | 50~60 | 5 | 0 | 11 | 117 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-62~72 | 62~72 | 6 | 0 | 11.5 | 126 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-74~84 | 74~84 | 7 | 1 | 13.4 | 154 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-86~96 | 86~96 | 8 | 0 | 13.4 | 154 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-98~108 | 98~108 | 9 | 1 | 14.8 | 185 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-110~120 | 110~120 | 10 | 0 | 14.8 | 185 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-122~132 | 122~132 | 11 | 1 | 16.9 | 228 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-134~144 | 134~144 | 12 | 0 | 16.9 | 228 | 1000/3000 | 300/1000 | 10D/20D |
Shipping:
