| Place of Origin: | China |
|---|---|
| Brand Name: | Yiyuan |
| Certification: | OHSAS 18001, ISO 14001, ISO 9001 |
| Minimum Order Quantity: | 1KM |
| Price: | Negotiation |
| Packaging Details: | Wood coil strand |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000km/month |
| Product Name: | Armored Fiber Optic Cable | Fiber Count: | 2-288 Core |
|---|---|---|---|
| OEM: | Accepted | Application: | Outdoor Duct |
| Jacket Material: | PE PVC LSZH HDPE | Brand Name: | Yiyuan |
| Certification: | ISO 9001;ISO 14001;OHSAS 18001 | Color: | Black Or Customized |
| Strength Member: | Steel Wire | Place Of Origin: | China |
| Installation: | Self-supporting Aerial | Package: | Plywood Reel/customized |
| High Light: | 4 core armoured cable,HDPE underwater fiber optic cable,LSZH underwater fiber optic cable |
||
GYTA33 Armoured Underwater Fiber Optic Cable Anti Corrosion Single Mode 4 Core 288 Core
Description:

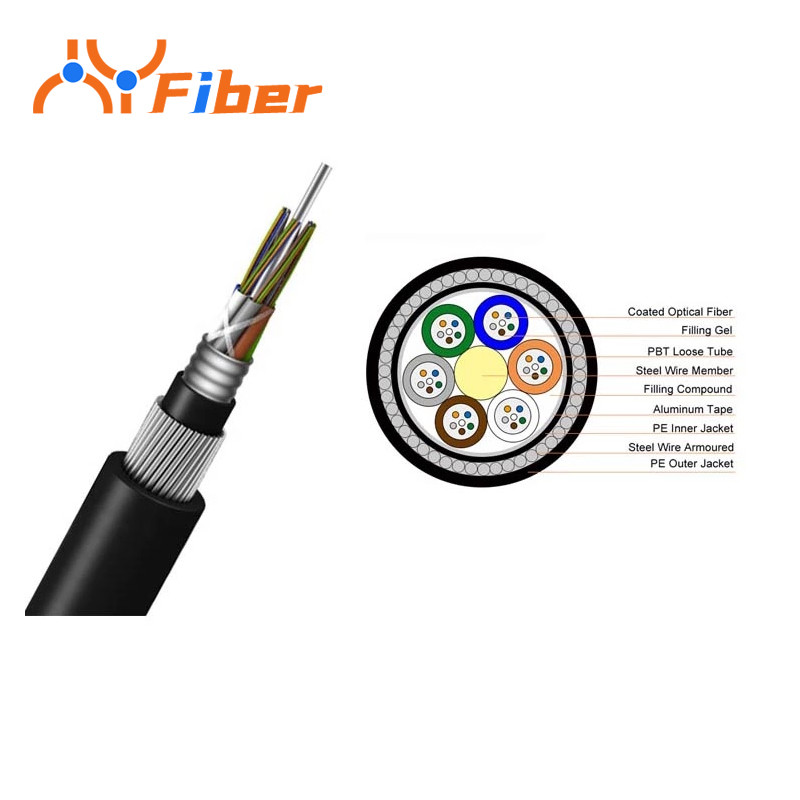

Fiber optic cable GYTA33, 2~72 fibers, central strength member (steel), jelly filled, fiber contained loose tube and pp filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, pe inner sheath, armored by a layer of steel wires, pe outer sheath. G652d sm fiber, detailed specification on your request.
Application:
1. Laying modes: direct buried & under-water.
2. Applications: Long-distance communication, local trunk line, catv & computer networks system.
| Fiber count | 2~30 | 32~36 | 38~60 | 62~72 | 2~36 | 38~72 | |
| CSM/Steel wire (mm) | --/1.5 | --/2.0 | --/1.8 | 2.4/1.8 | --/2.0 | 2.4/1.8 | |
| Element mumber | 5 | 6 | 5 | 6 | 6 | 6 | |
| Max. cores in tube | 6 | 6 | 12 | 12 | 6 | 12 | |
| Diameter of inner sheath | 8.3 | 8.8 | 9.1 | 9.7 | 10.5 | 10.5 | |
| Steel wire diameter and No. | Φ1.0/28 | Φ1.0/29 | Φ1.0/30 | Φ1.0/32 | Φ1.5/24 | Φ1.5/24 | |
| Cable diameter approx (mm) | 14.3 | 14.8 | 15.1 | 15.7 | 17.5 | 17.5 | |
| Weight approx (kg/km) | 315 | 328 | 340 | 360 | 520 | 520 | |
| Tensile strength (N) | Long term | 4000 | 10000 | ||||
| Short term | 10000 | 2000 | |||||
| Crush Resistence(N/100mm) | Long term | 3000 | |||||
| Short term | 5000 | ||||||
| Bending Radius (mm) | Dynamic | ≥30 ×Dia. Of cable | |||||
| Static | ≥15×Dia. Of cable | ||||||
| Operating Temperature (°C) | -40°C ~+ 70°C | ||||||
| Application | Directly burial and Under water | ||||||
